FOLDING MECHANISMS

Folding mechanisms allow legs to lay flat under the table. It’s a great option for space saving solution. For your convenience, we also offer table cart for moving and storing folding tables.

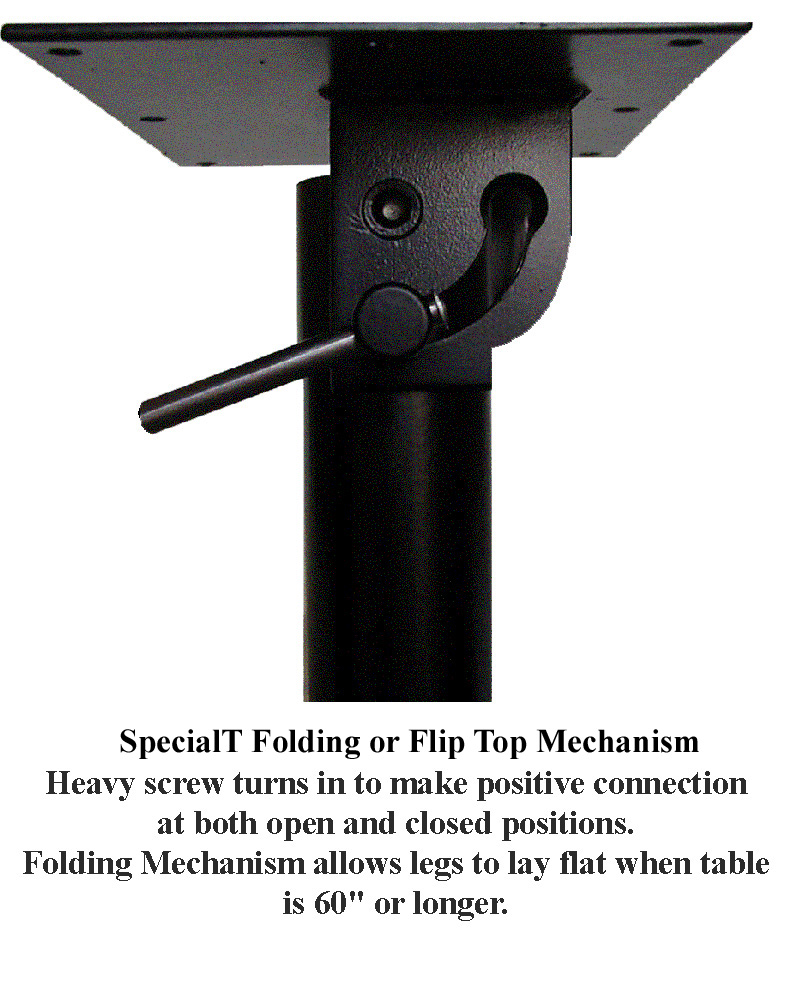

Special-T Folding Mechanism

This mechanism requires turning of the handle to loosen or tighten the bolt. This mechanism is welded to the leg and can only be used on tables 60” or longer.

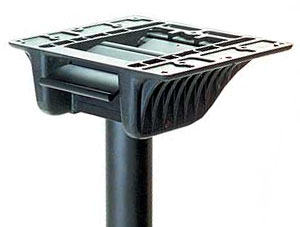

G-Fold Folding Mechanism

This folding mechanism operates by pushing on the lever with hand or foot. It works
on tables 36” or longer. Tables 36” – 57” require a riser bracket for legs to overlap and lay flat.





 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~



 FLIP TOP MECHANISMS

Flip top mechanisms allow table top to flip and be in vertical / parallel position with columns.
A practical and economical solution to space saving, we recommend adding caster option for easier mobility



Special-T Flip Top Mechanism  requires turning of the handle to loosen or tighten the bolt. To secure the top, the bolt needs to be tightened in lowered or flipped position.
A table with SpecialT FTM  can be easily flipped by one person.











G-Fold Flip Top Mechanism for T-Bases operates by pushing on the lever by hand. It automatically locks itself ones in lowered or flipped position.
This mechanism requires 2 people to push lever simultaneously to operate it.

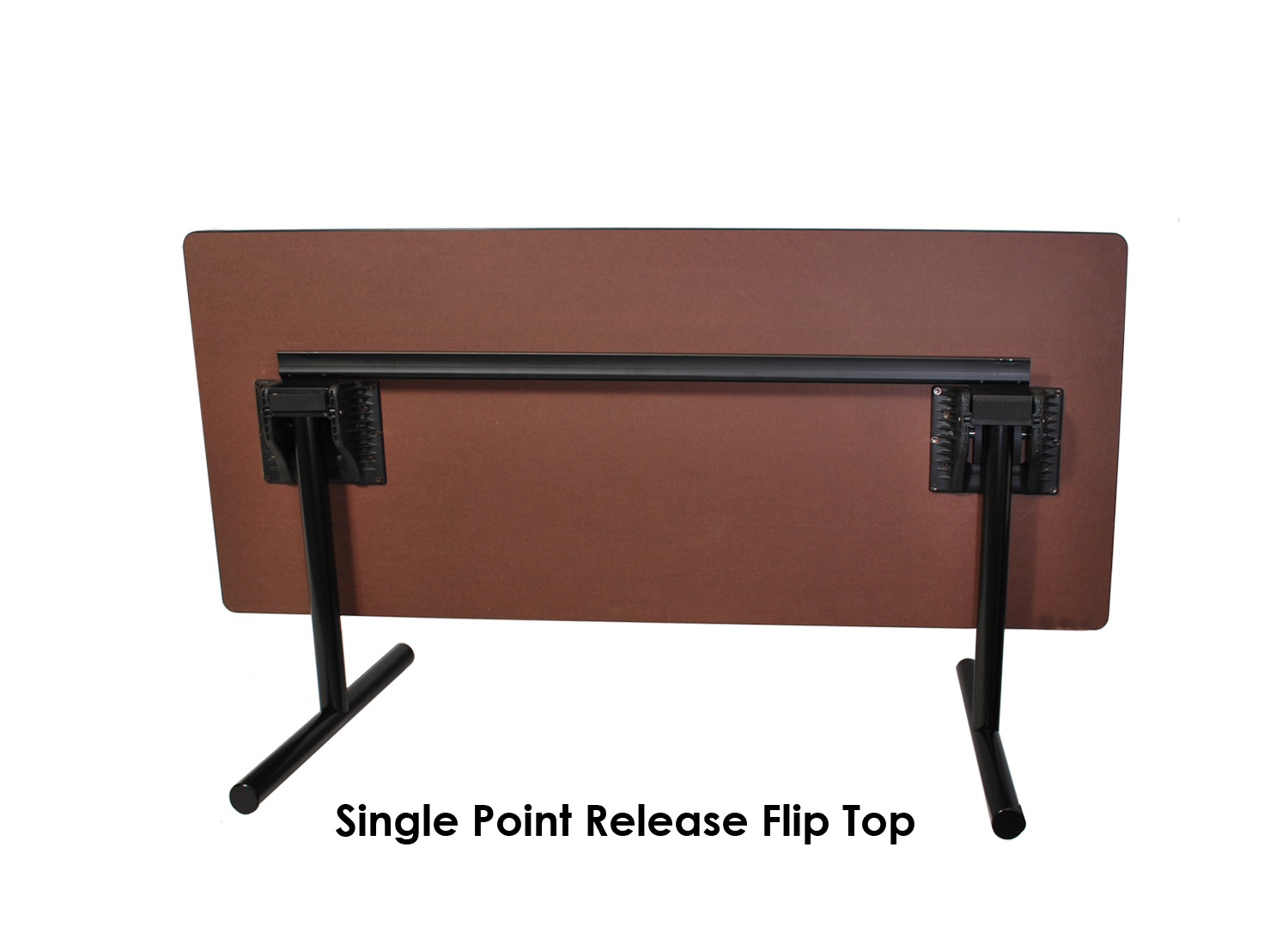

G-Fold Single Point Release Flip Top Mechanism for T-Bases operates by pushing on ganger bar connected to the two mechanisms.  It automatically locks in lowered or flipped position.



Flip Top Mechanism for X-Bases operates by pushing on the lever by hand. It automatically locks itself ones in lowered or flipped position.
This mechanism requires 2 people to push lever simultaneously to operate it.

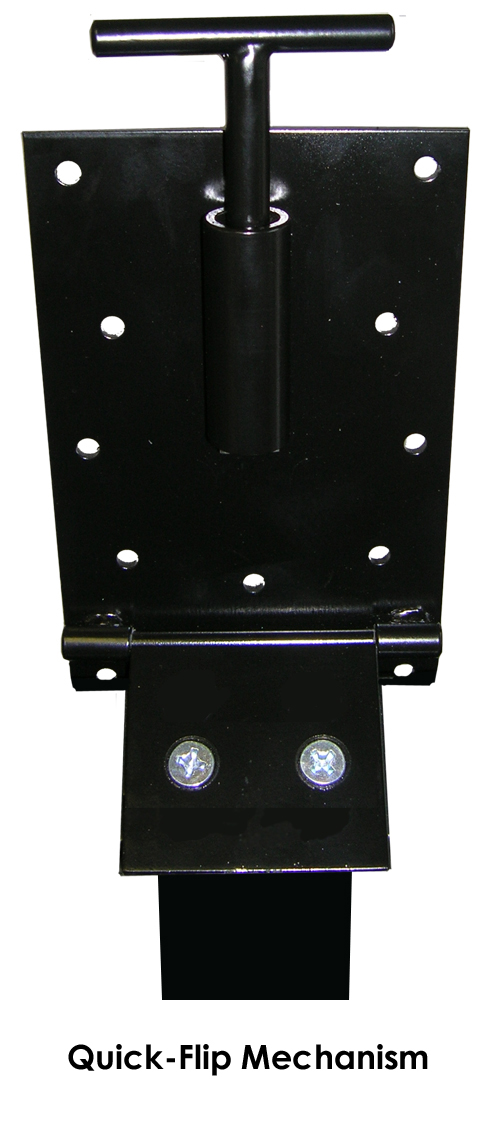

Quick Flip is our most economical flip top mechanism. It releases the table top by pulling on the release handle.
Once in flipped position, the top leans against the table legs and locks automatically when returned in horizontal position.
A table withy QuickFlip FTMs requires 2 people to flip the top by simultaneously pulling on the release handles.
