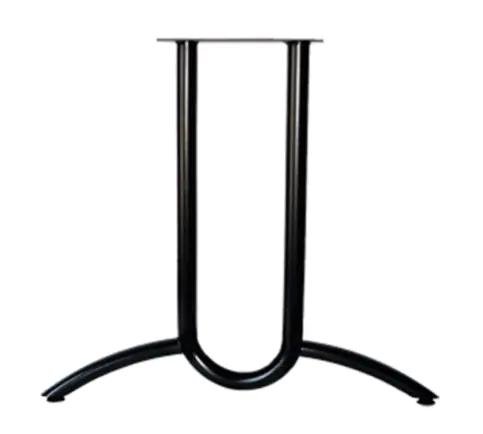

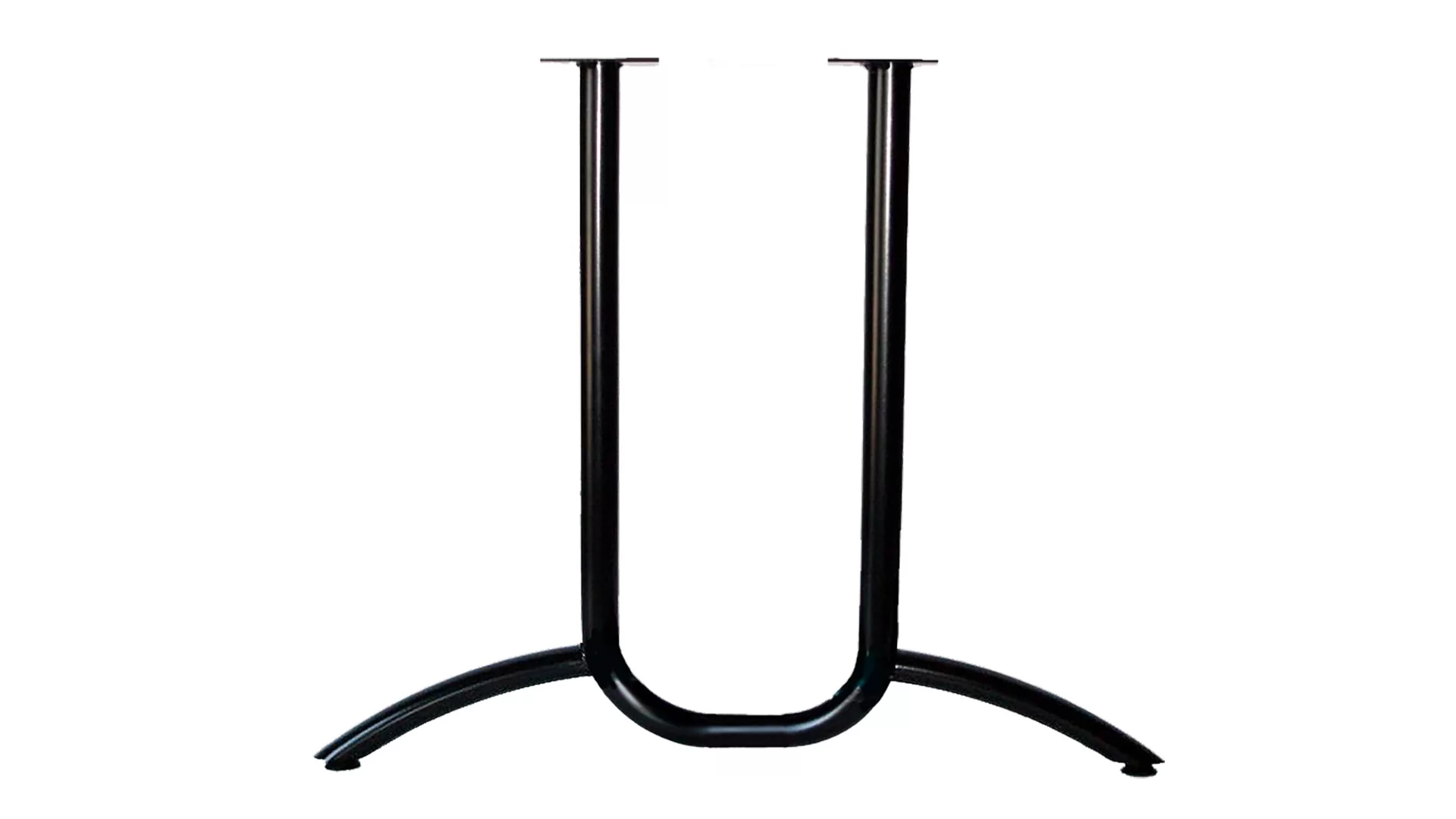

Arched TU-Legs
Arched TU-Legs
Special Offer

Tu-leg

Arched

Configure Bases

Price From:

$92 List

DESCRIPTION

  • Welded construction
  • Unit height: 27.75"
  • Column is 1.5" and arched feet are 1 3/8" diameter
  • Mounting Plate: 5" x 11"; ATUL-42 comes with 2 plates 6" x 6" plate; require (4-8) #12-14 screws
  • Levelers: 1 3/8" diameter plastic
  • Finish: powder coat; black is stock color
  • 330 lbs. (150kg) vertical load rating per base
  • Packaging: 2 legs per box (legs are priced individually)
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Column Diameter 1.5" dia.
Welded Mounting Plate 5" x 11" x 7/32"; ATUL-42 has (2) 6" x 6" plates
Base Spread 22", 26",36"
Leveling Glides 1 3/8" diameter nylon glide
Finish powder coat; black is stock color
Packaging 2 legs per box (legs are priced individually)

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
22"1.5"5" x 11"24" - 28"
26"1.5"5" x 11"30" - 36"
36"1.5"(2)6" x 6"36" - 42"

Resources & Downloads

Assembly InstructionsAssembly Instructions
