Product Preview
Click & Drag Image (Left or Right)

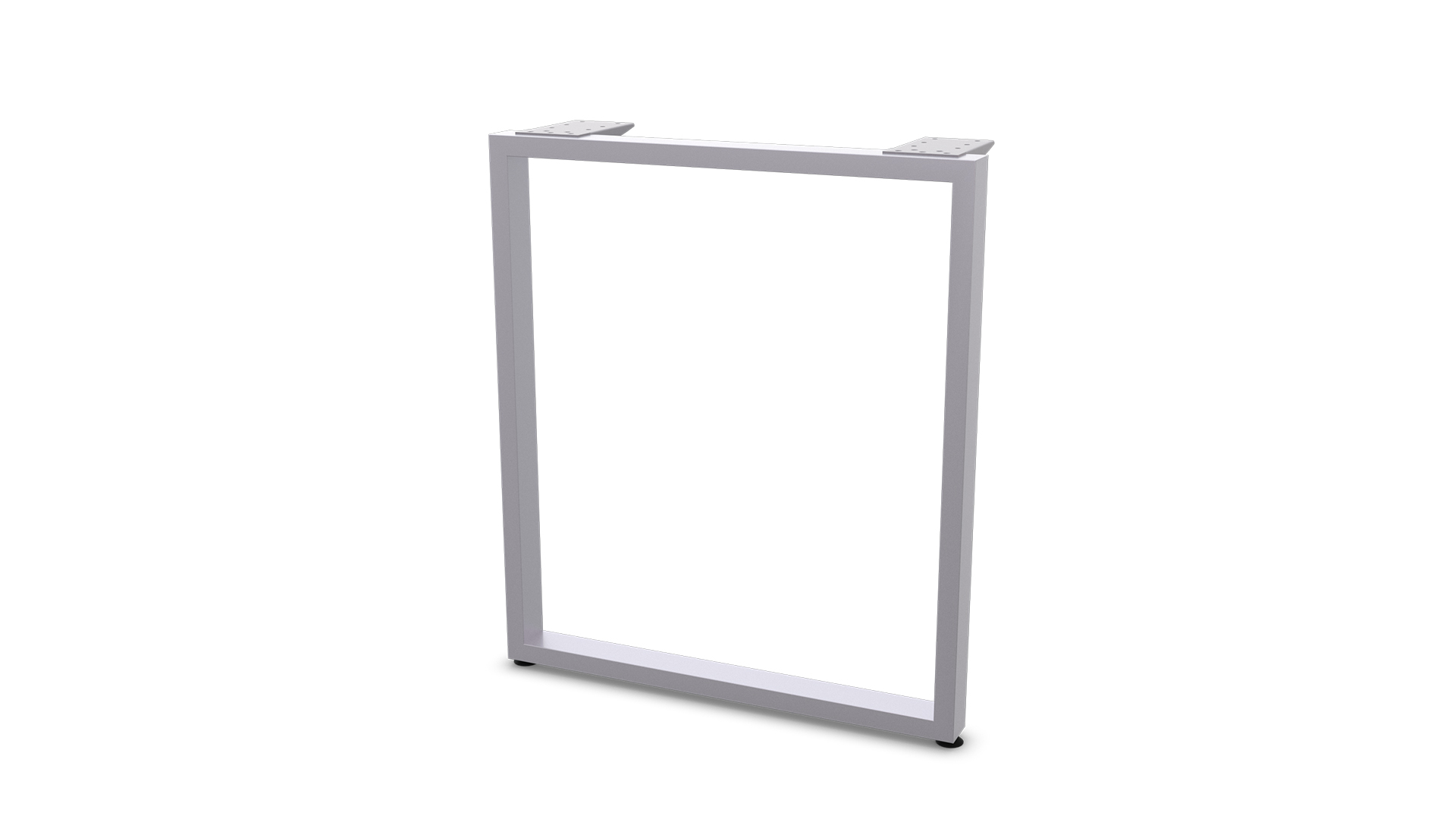

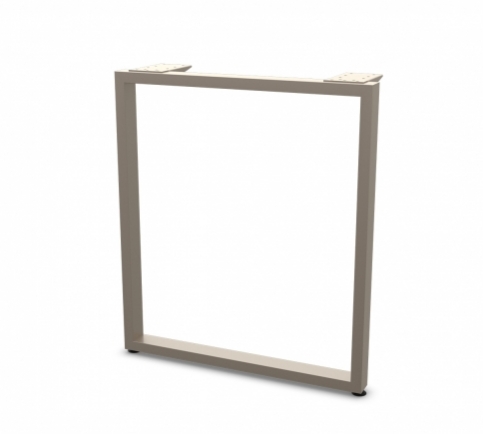

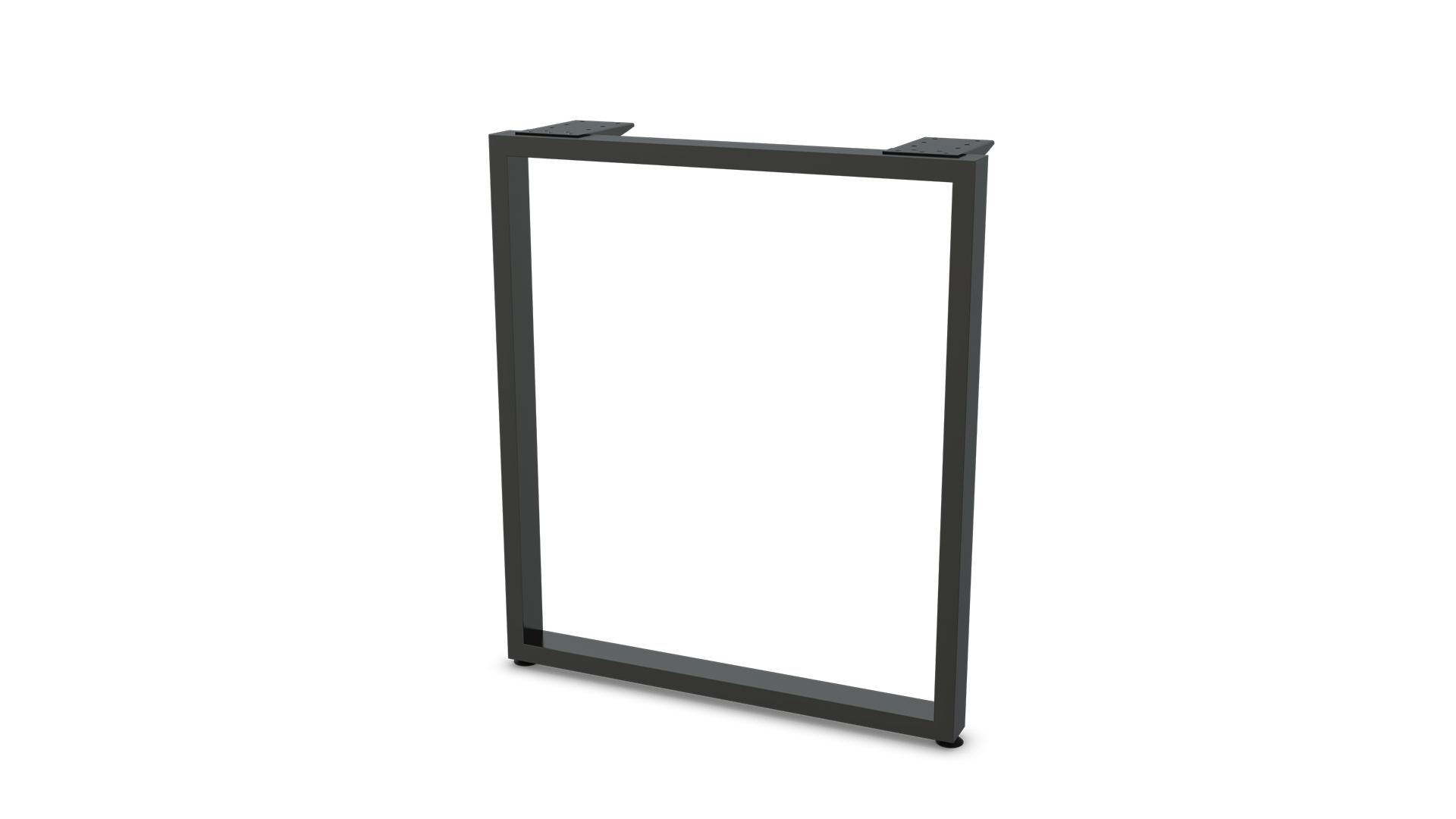

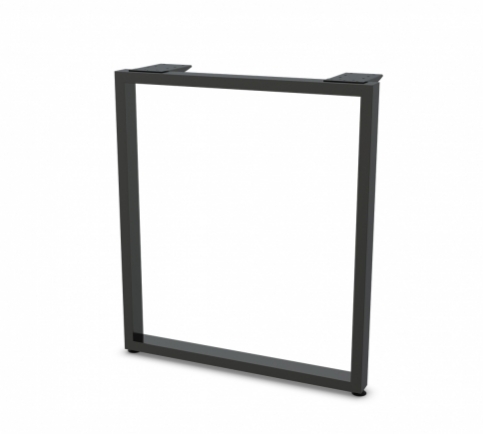

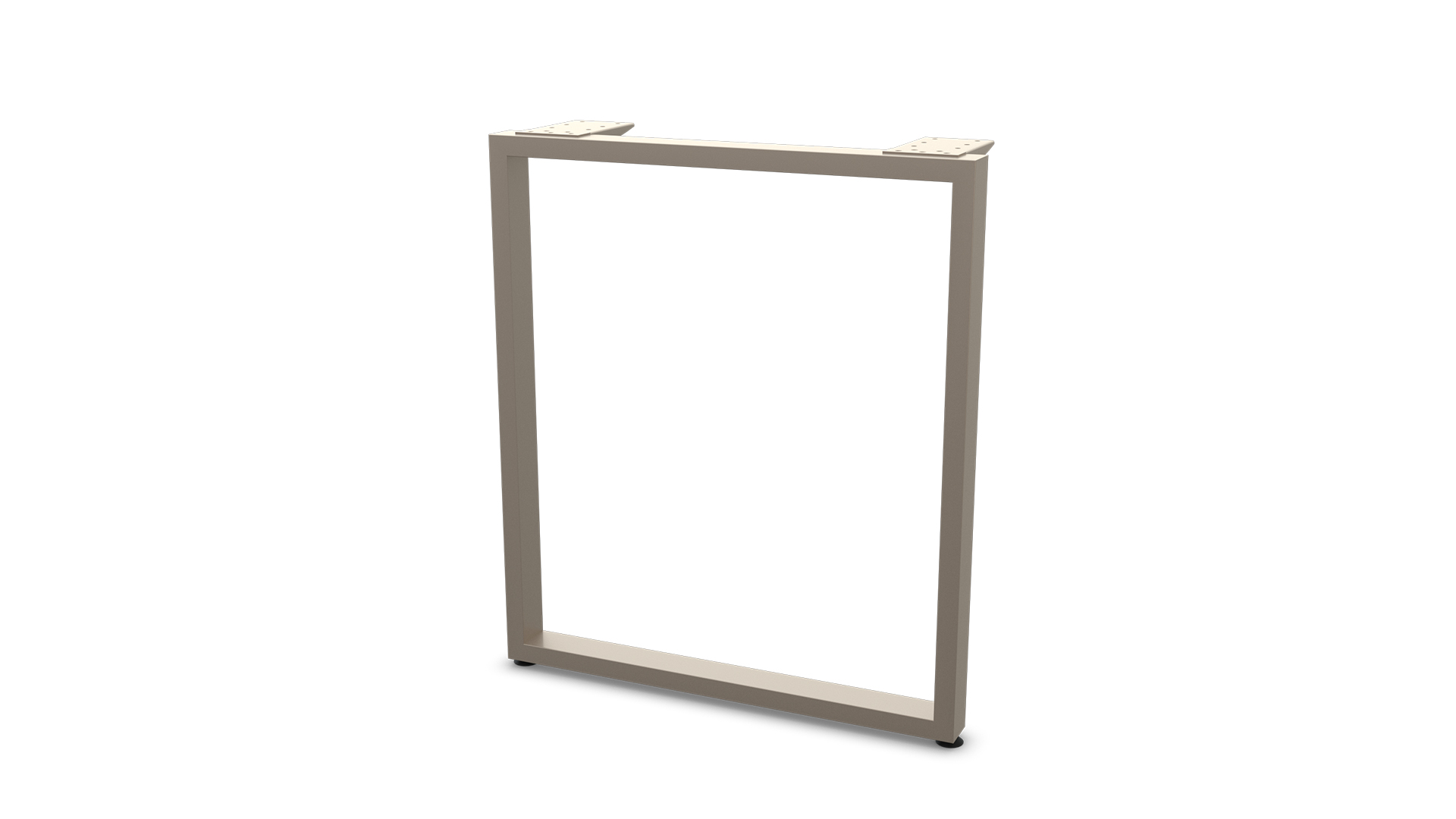

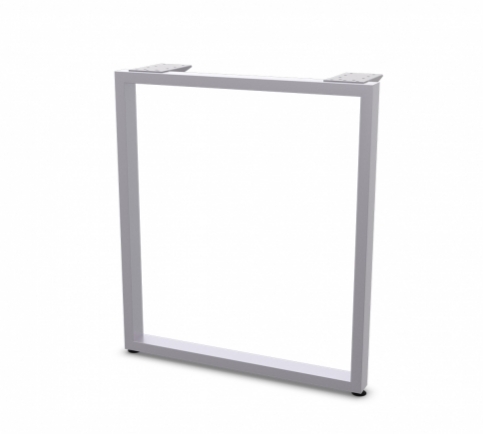

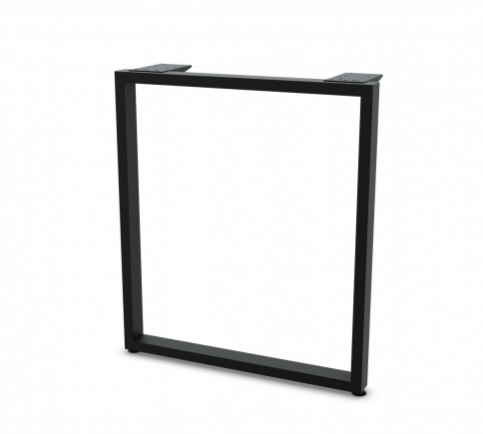

Square End Base

Structure Bases

Configure Bases

 Configure Tables

Price From:

$311 List

Fabricated 14 gauge 2” x 1” rectangular tubular steel with threaded inserts for glides. Welded construction. Bases mount flush with table edge.

  • Unit height: 27.75"
  • Welded Mounting Plate: 4-3/4” x 3-1/2" x 7/32" steel
  • Column: 14 gauge steel, 2” x 1” rectangular tube profile
  • Base Spread: 24”, 30”
  • Leveling Glides: 1 3/8" diameter nylon glide
  • Finish: powder coat; metallic silver is stock color
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit height 27.75"
Column Diameter 2"x1"
Welded Mounting Plate (2) 6-1/8" x 3-1/2"
Base Spread 24", 30"
Leveling Glides 1 3/8" diameter nylon glide
Finish powder coat; Metallic Silver is stock color
Packaging bases are packaged 2 per box, priced individually

Size Chart

Base SpreadColumn SizeMounting PlateRecommended Top Size
24"2"x1"6-1/8" x 3-1/2"24"D x 36" - 72"W
30"2"x1"6-1/8" x 3-1/2"30"D x 36" - 72"W

.

Resources & Downloads

Assembly Instructions

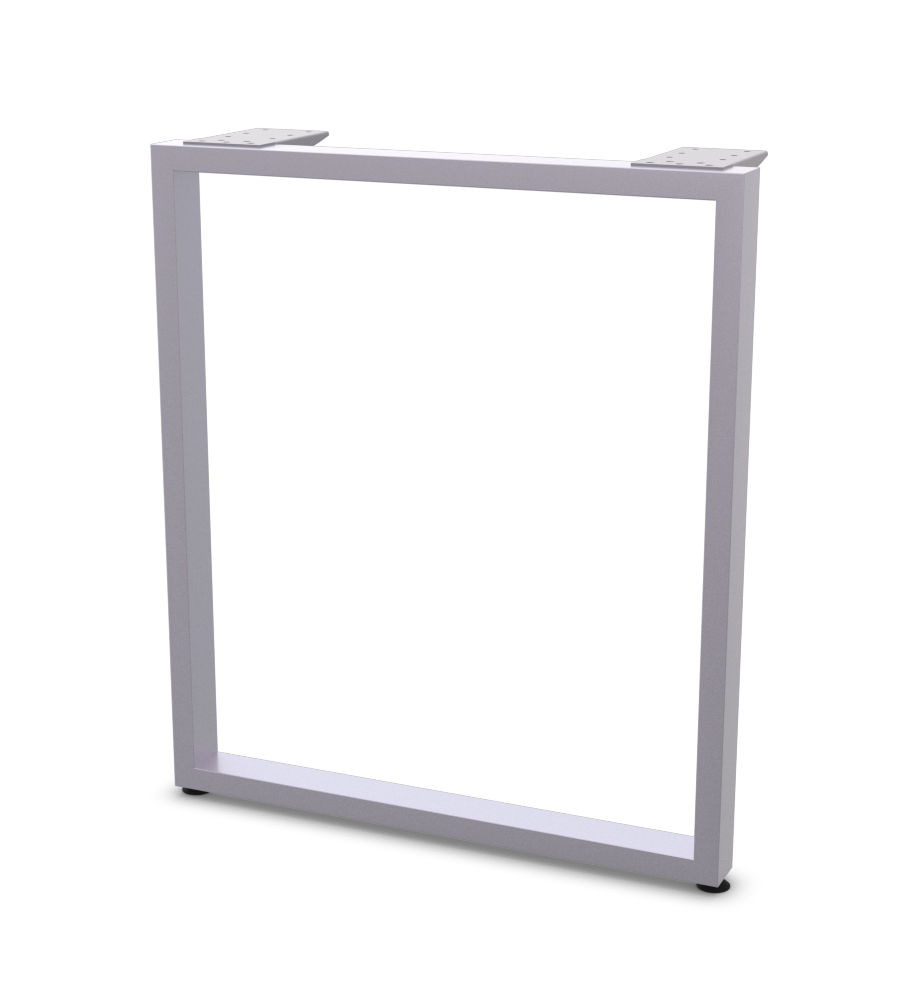

Product Preview
