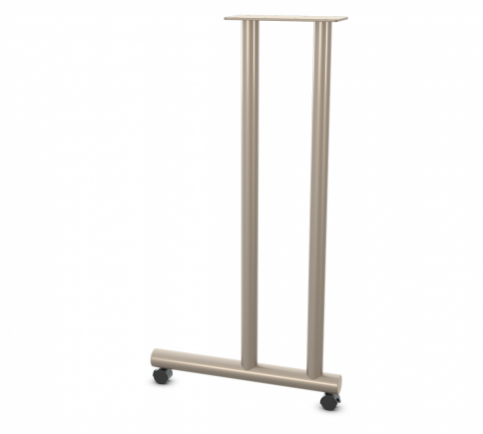

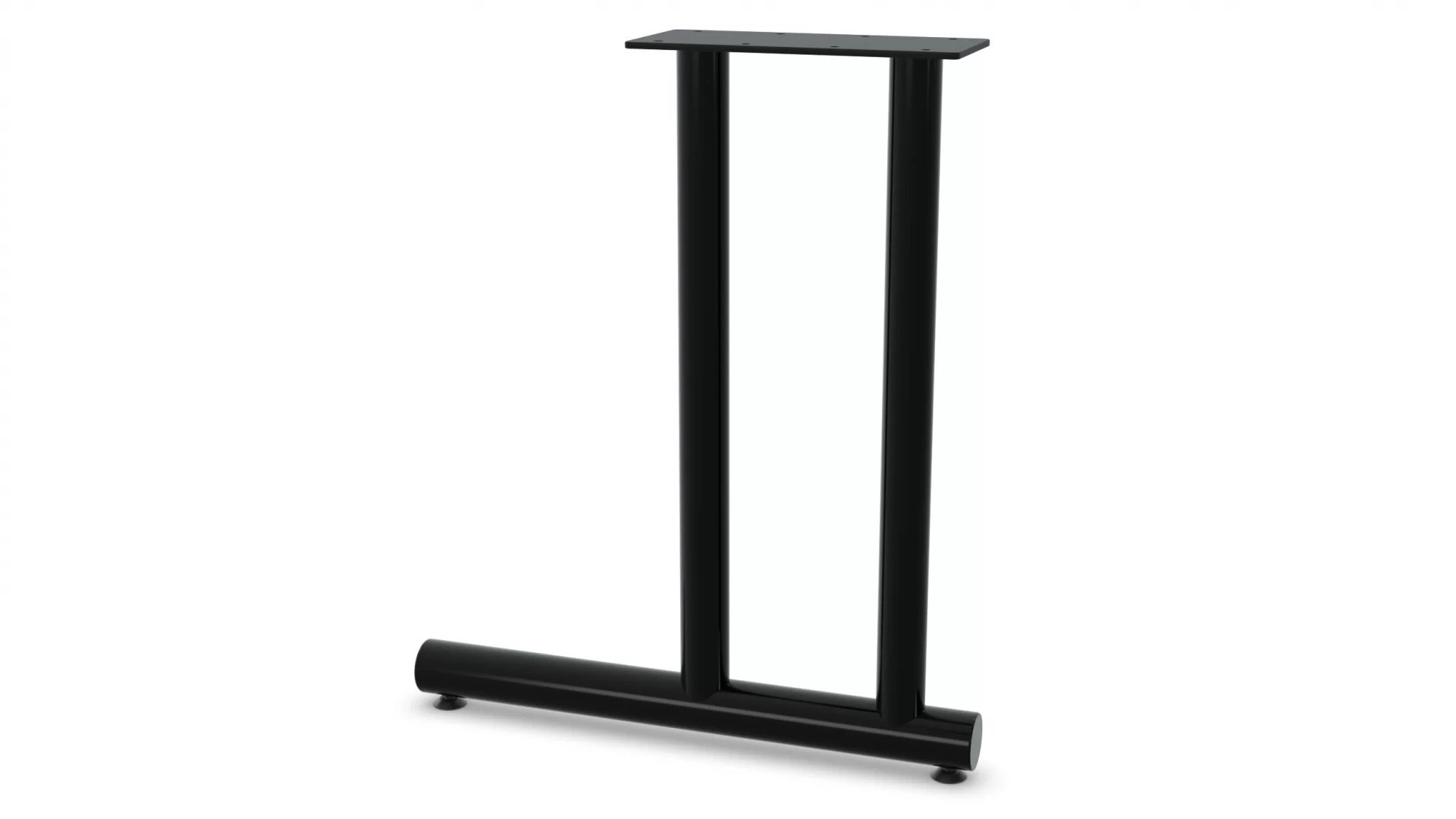

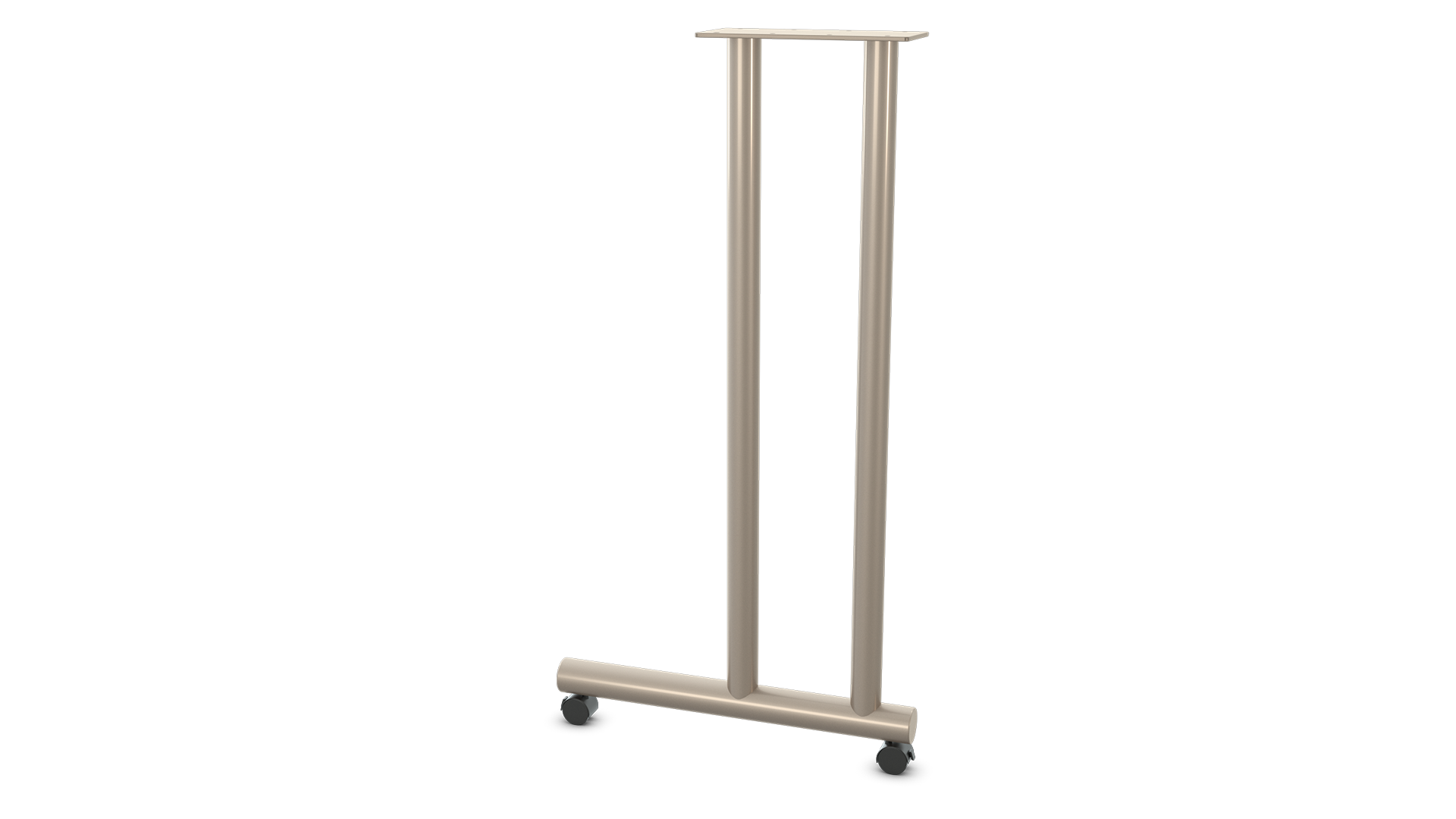

Dual Column C-Leg - Black

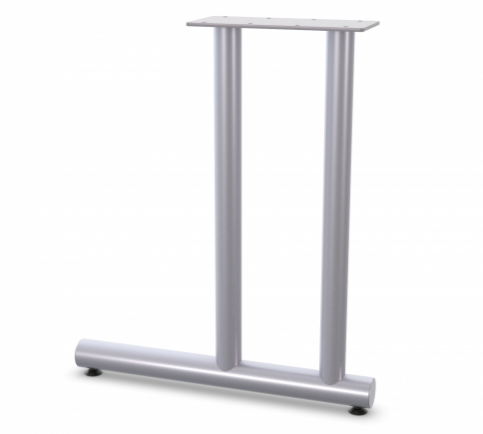

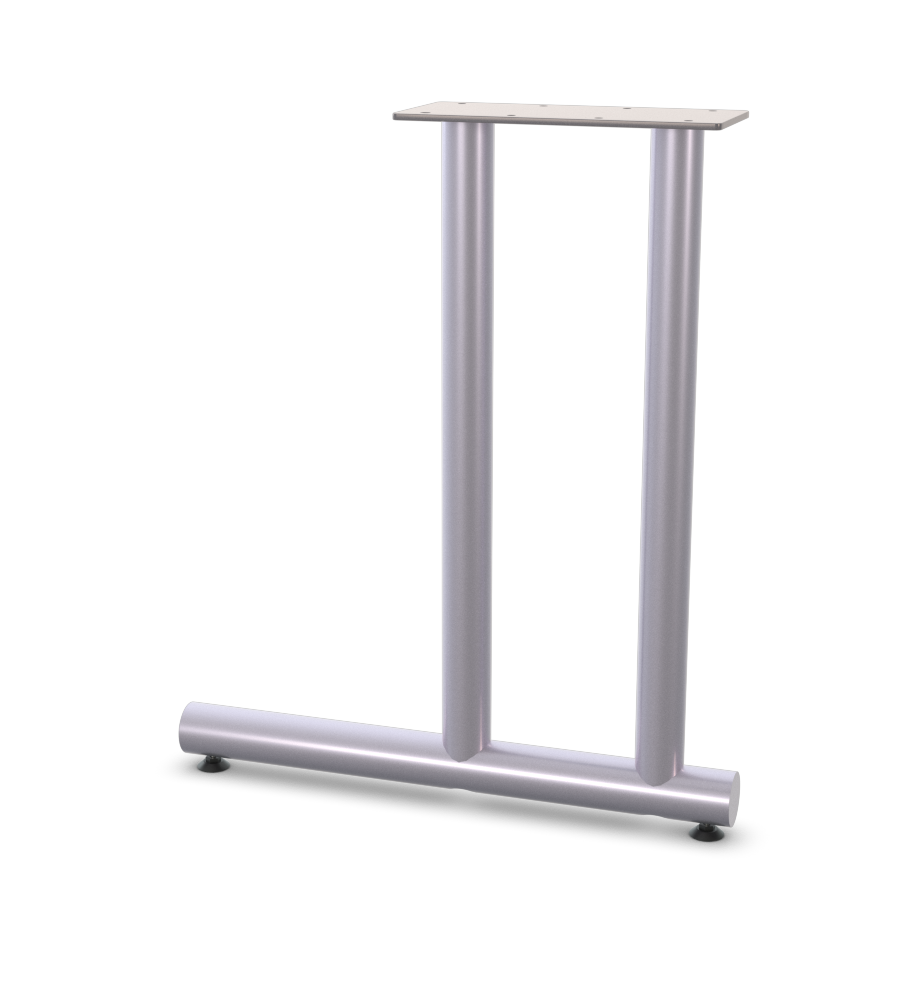

Dual Column C-Leg - Metallic Silver
Product Preview
Click & Drag Image (Left or Right)
Dual Column C-Leg - Black

Dual Column C-leg

Traditional

Configure Bases

 Configure Tables

Price From:

$245 List

Fabricated 14 gauge steel with steel endcaps and threaded inserts for levelers or casters.

  • Unit height: 27.75"
  • Welded Mounting Plate: 5" x 11" x 7/32"
  • Column: 2" diameter
  • Base Spread: 22", 26"
  • Leveling Glides: 1 3/8" diameter plastics with steel threaded inserts, allow additional 1" upward height adjustment for uneven floors
  • Finish: powder coat; black is stock color
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Height Options Counter Height - 34.75", Bar Height - 40.75", Adjustable Height 24.75" - 34.75"
Column Diameter 2" dia.
Welded Mounting Plate 5" x 11" x 7/32" steel
Leveler 1 3/8" diameter plastic with steel threaded inserts
Finish powder coat; black is stock color
Method of Assembly Bolted construction
Packaging bases are packaged 2 per box, priced individually

Size Chart

Base SpreadColumn DiameterMounting Plate Recommended Top Size
22"2"5" x 11"24"-28"D x 36"-96"W
26"2"5" x 11"30"-36"D x 42"-96"W

.

Resources & Downloads

Assembly Instructions
