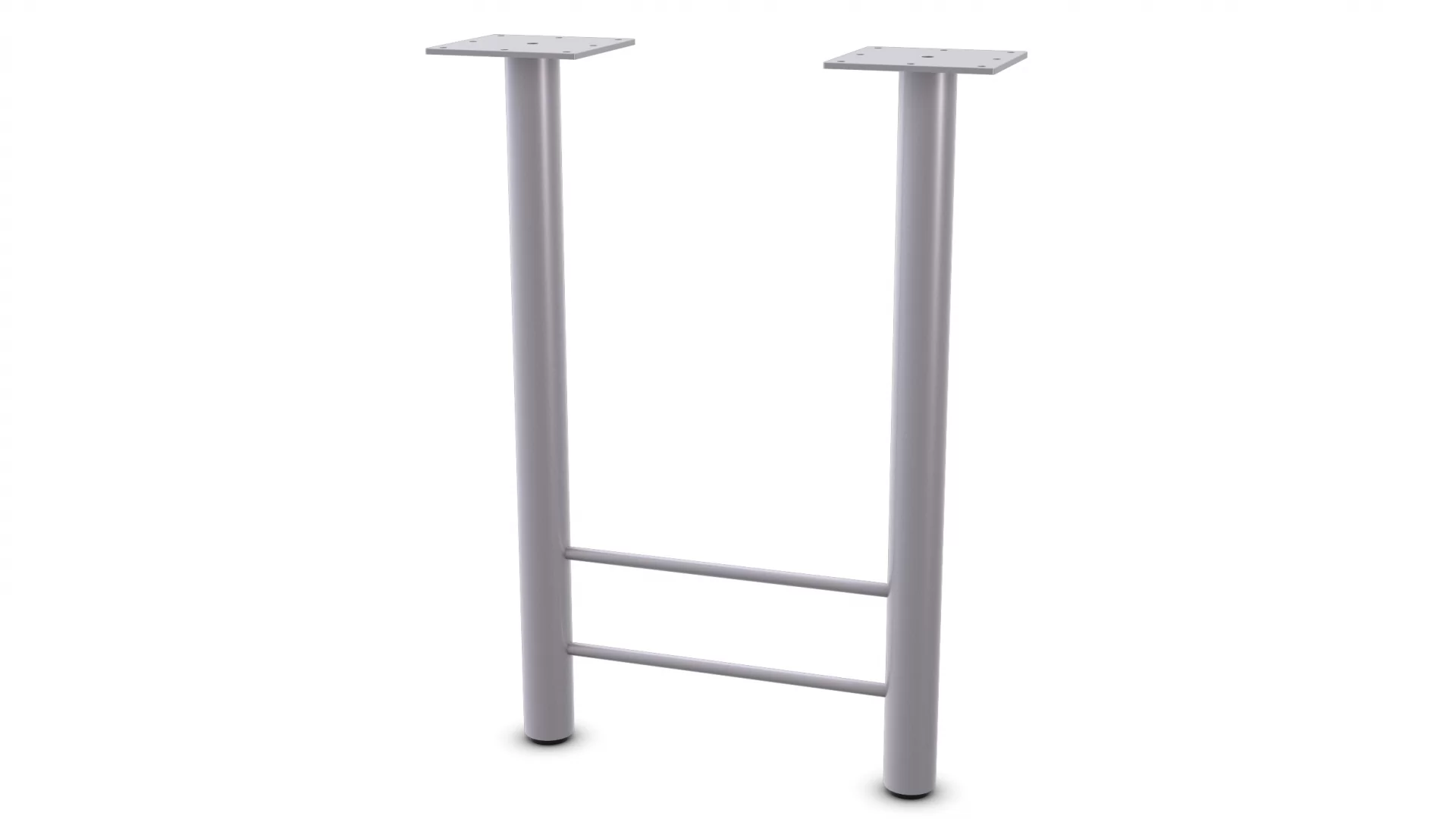

Dual Column H-leg

Traditional

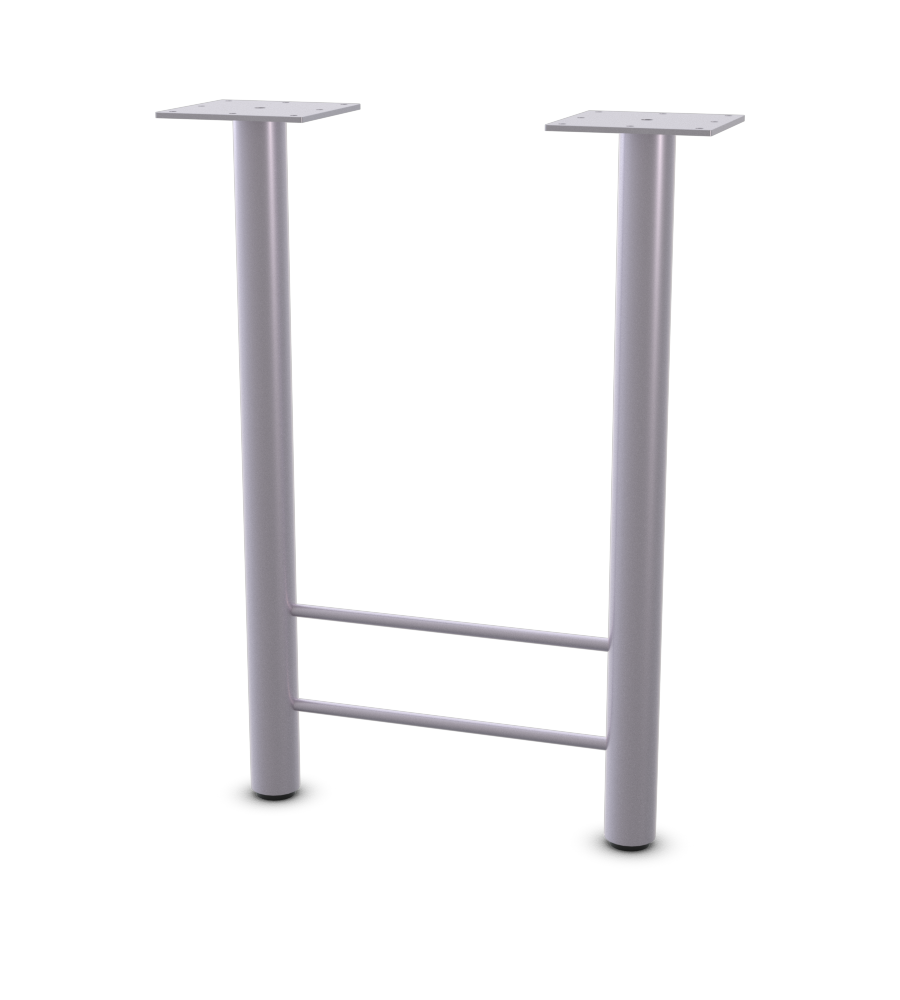

Product Preview
Click & Drag Image (Left or Right)

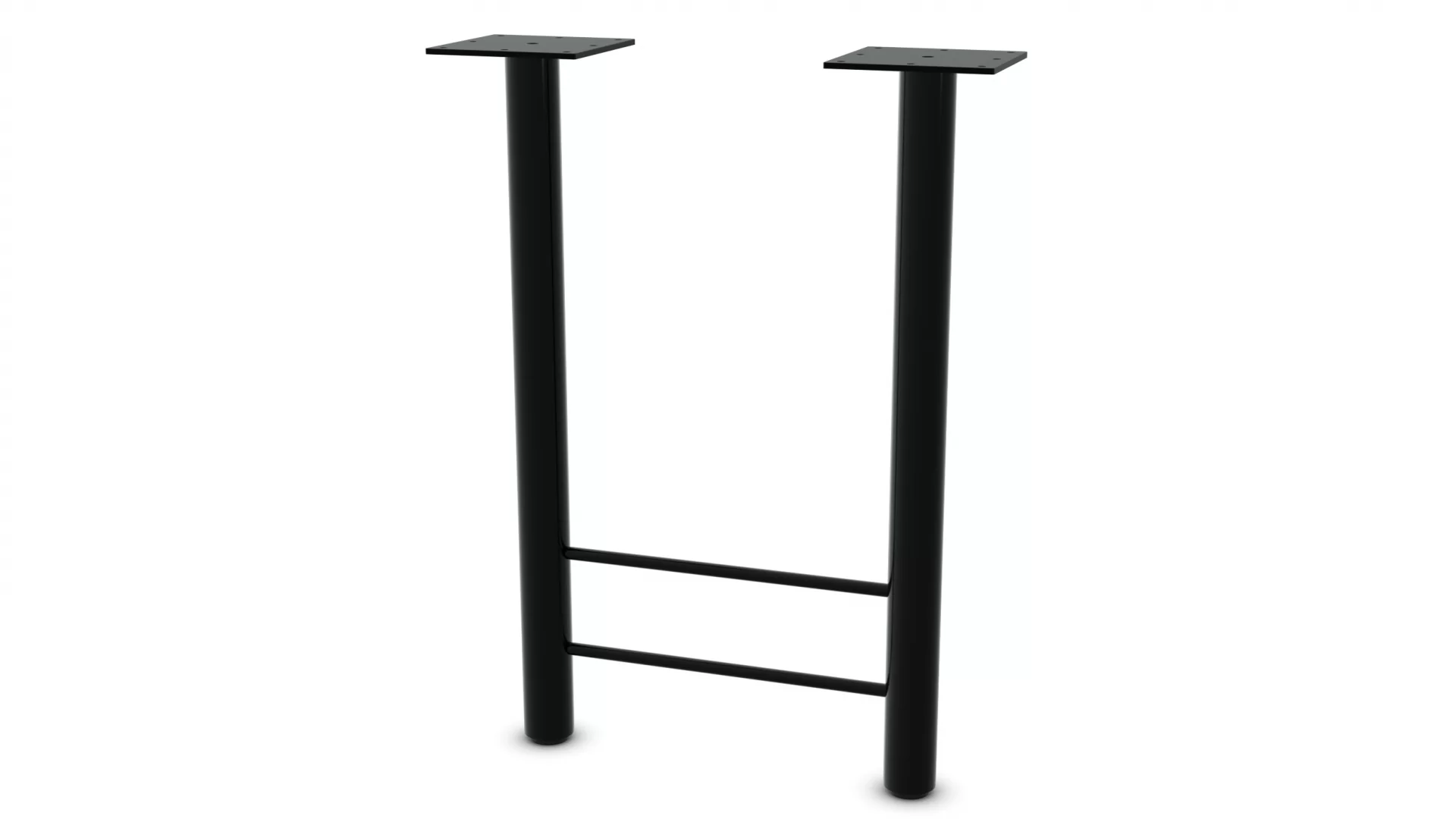

Dual Column H-leg - Black

Dual Column H-leg

Traditional

Configure Bases

Configure Tables

Price From:

$122.00 List

Fabricated 14 gauge steel with steel endcaps and threaded inserts for levelers or casters.

  • Unit height: 27.75"
  • Welded Mounting Plate: two plates 6" x 6" x 7/32" steel
  • Column: 2" dia., 3" dia.
  • Base Spread: 16.5", 22.5", 23.5", 30"
  • Leveling Glides: 1 3/8" diameter plastics with steel threaded inserts, allow additional 1" upward height adjustment for uneven floors
  • Finish: powder coat; black is stock color
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75’’
Height Options Counter Height - 34.75’’, Bar Height - 40.75", Custom Height between 5" - 28.99", Custom Height between 29" - 42"
Column Diameter 2" dia. or 3" dia.
Welded Mounting Plate Two plates 6" x 6" x 7/32" steel; require (8-16) #12-14 screws
Base Spread 16.5", 22.5", 23.5", 30"
Leveling Glides 1 3/8" diameter plastics, allow additional 1" upward height adjustment for uneven floors
Finish Powder coat; black is stock color

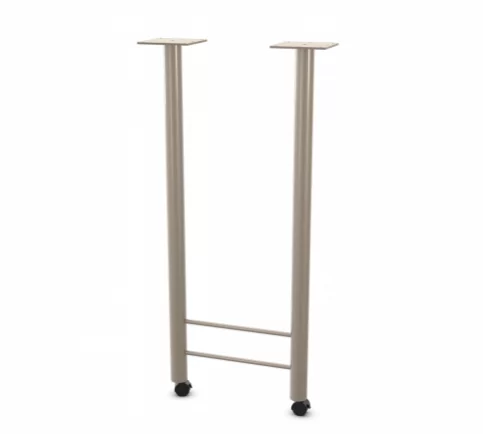

Options Optional Casters
Method of Assembly Welded construction
Packaging 2 legs per box, priced individually

Size Chart

Base SpreadColumn DiameterMounting PlatesRecommended Top Size
16.5"2"6" x 6"24"-28"D x 36"-96"W
22.5"2"6" x 6"30"-40"D x 42"-96"W
23.5"3"6" x 6"30"-40"D x 42"-96"W
30"3"6" x 6"42"-48"D x 42"-96"W

.
