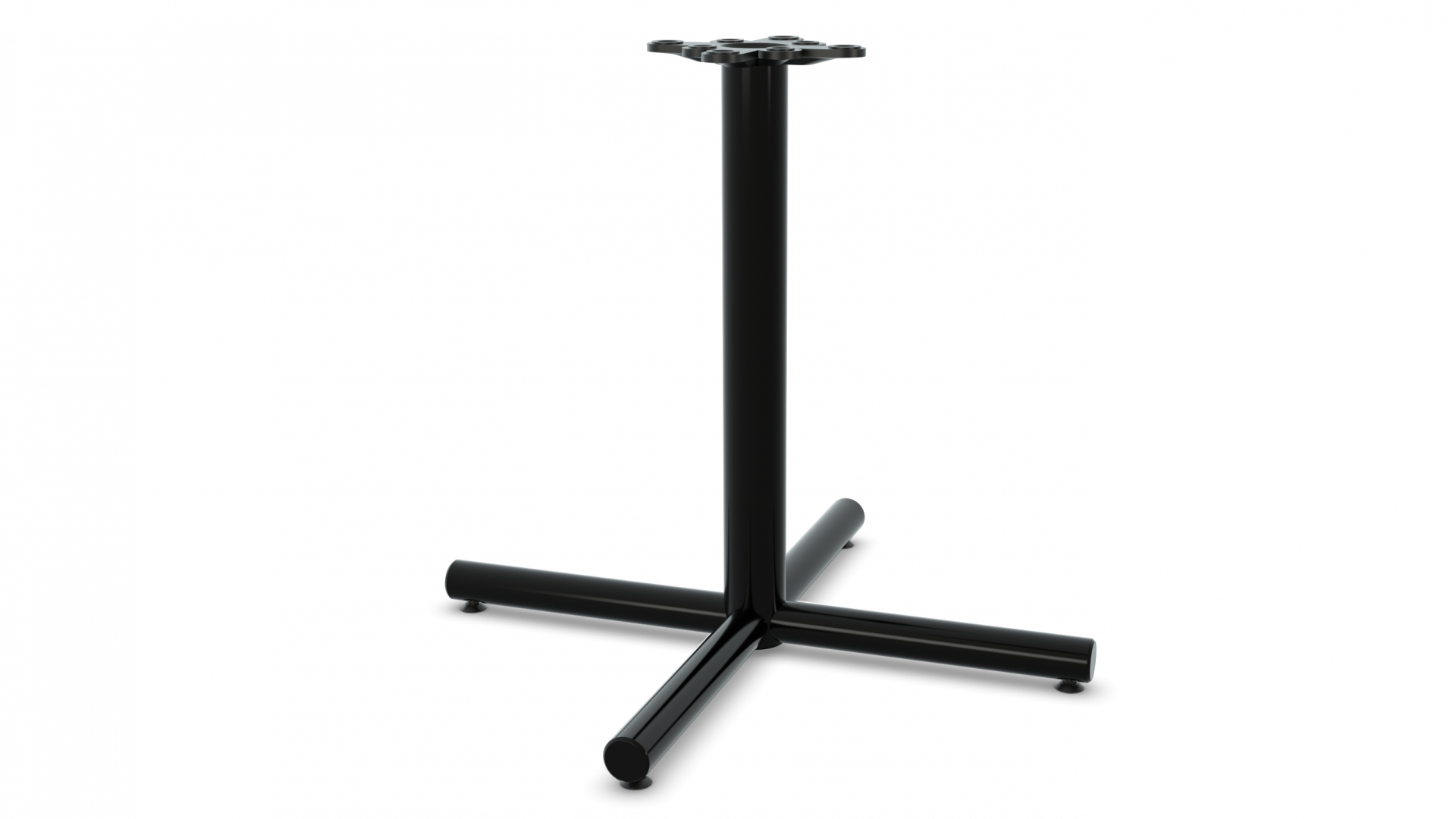

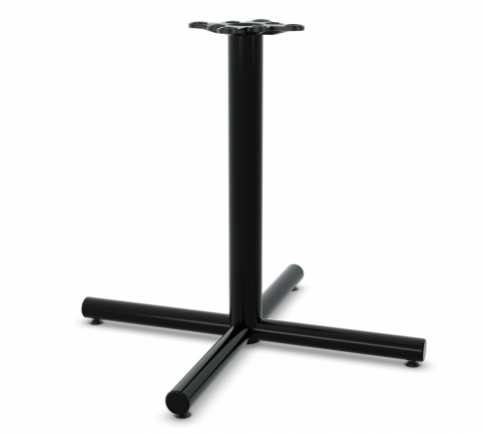

Single Column X-Base

Traditional

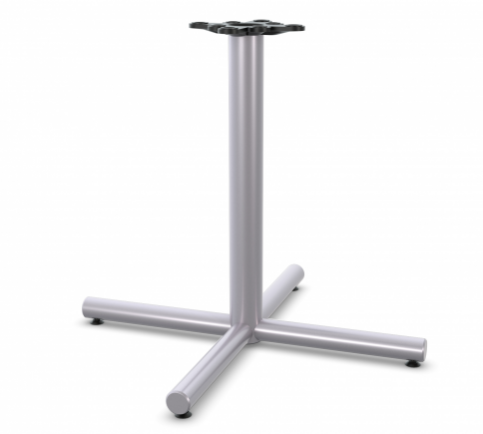

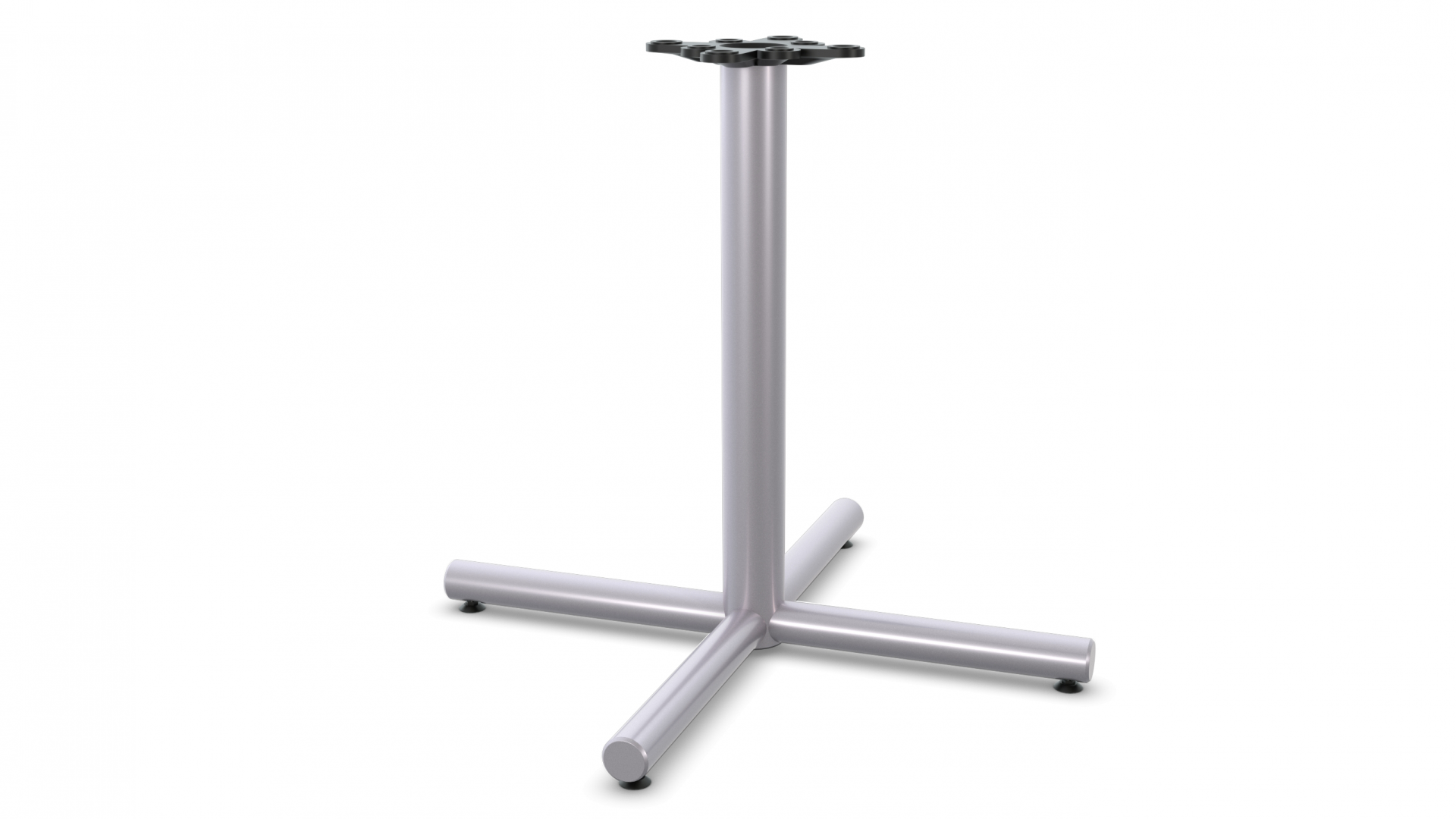

Single Column X-Base - Metallic Silver

Single Column X-Base

Traditional

Price From:

$186.00 List

Fabricated 14 gauge steel column and feet with threaded inserts for levelers or casters.

  • Unit Height: 27.75"
  • Welded Mounting Plate: 10" x 10"
  • Column diameter is 3"; feet are 2" diameter
  • Base Spread: 20"x20", 26"x26", 32"x32", 36"x36", 42"x42"
  • Leveling Glides: 1 3/8" diameter plastics with steel threaded inserts, allow additional 1" upward height adjustment for uneven floors
  • Finish: powder coat; black is stock color
  • Bolted construction
  • Packaging: bases are packaged in 2 boxes.
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"

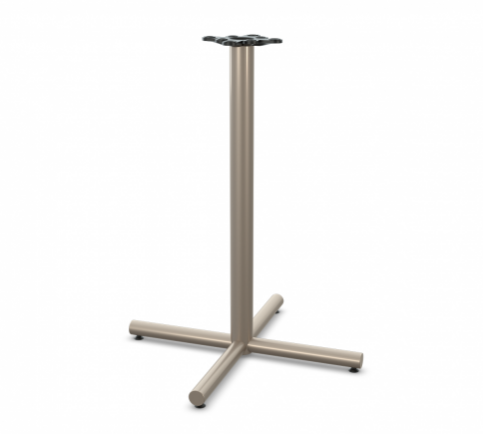

Height Options Bar Height - 40.75", Custom Height Cut between 5" - 27.75" or 27.57" - 40.75"
Column Diameter 3" dia.
Feet Diameter 2" dia.
Welded Mounting Plate 10" x 10"; require (6 - 8) #12-14
Base Spread 20"x20", 26"x26", 32"x32",36"x36", 42"x42"
Leveling Glides 1 3/8" diameter plastics with steel threaded inserts
Finish powder coat colors; black is stock color

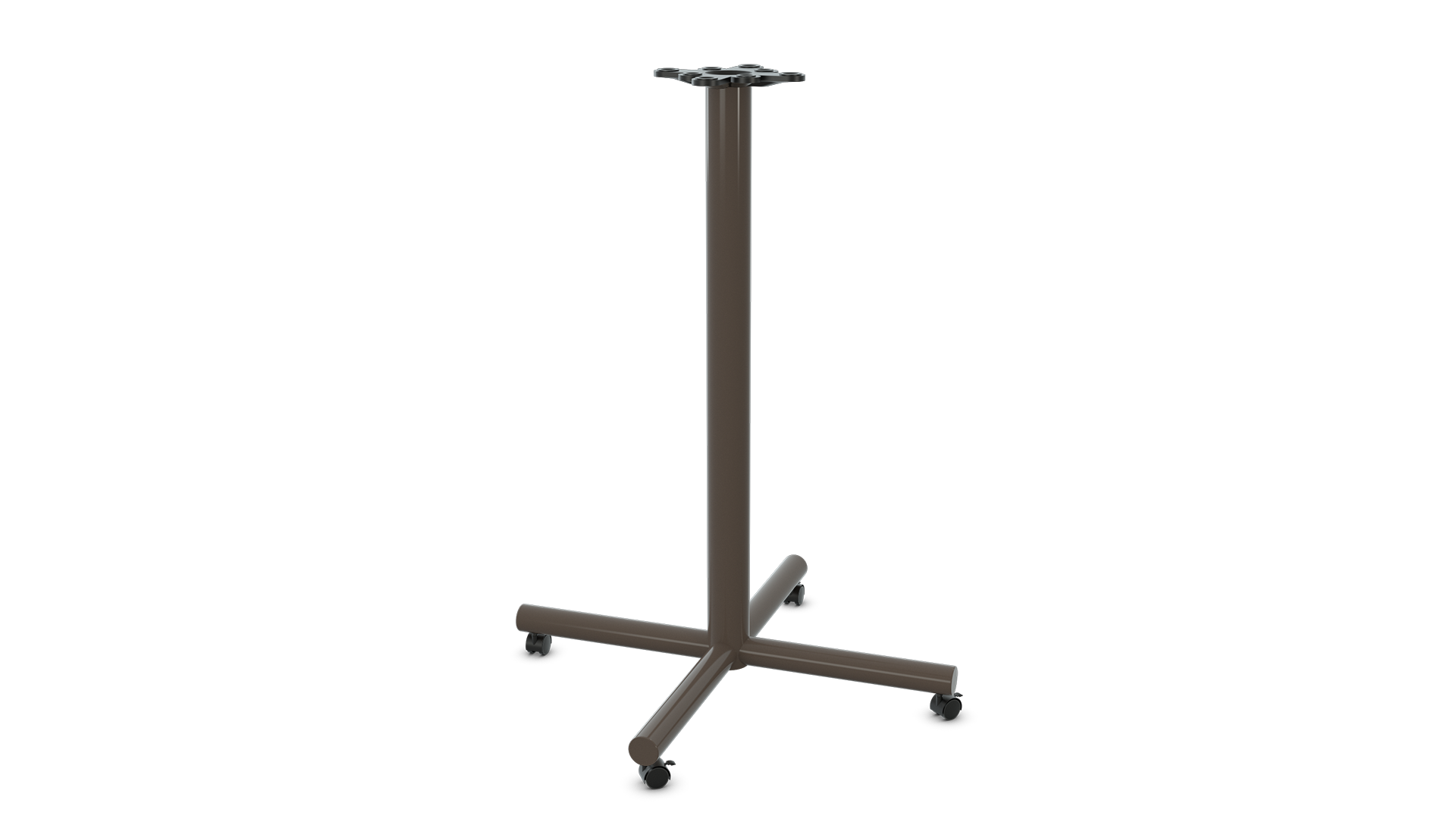

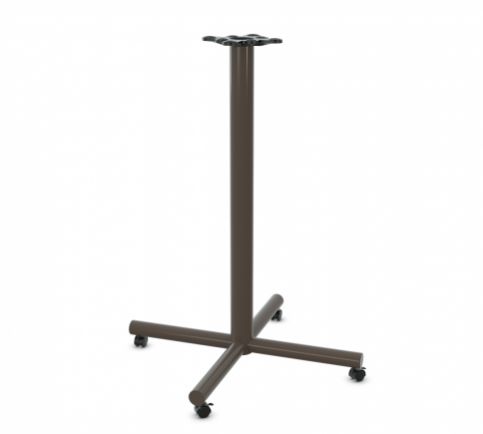

Options Optional Casters: 2" dual wheel; Optional Self Leveling Glides; FlipTop
Method of Assembly Bolted construction
Packaging bases are packaged in 2 boxes



Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Depth
20"3"10" x 10"20"-24" Rd; 20"-22" Sq
26"3"10" x 10"26"-36" Rd; 26"-30" Sq
32"3"10" x 10"32"-42" Rd; 32"-36" Sq
36"3"10" x 10"36"-48" Rd; 36"-42" Sq
42"3"10" x 10"42"-52" Rd; 42"-48" Sq
26" x 20"3"10" x 10"24" x 30"
32" x 20"3"10" x 10"24" x 36"
32" x 26"3"10" x 10"30" x 36"
36" x 20"3"10" x 10"24" x 42"
36" x 26"3"10" x 10"30" x 42"
36" x 32"3"10" x 10"36" x 42"
42" x 20"3"10" x 10"24" x 48"
42" x 26"3"10" x 10"30" x 48"
42" x 32"3"10" x 10"36" x 48"
42" x 36"3"10" x 10"42" x 48"

.

Resources & Downloads

Single Column X-Base 360o View

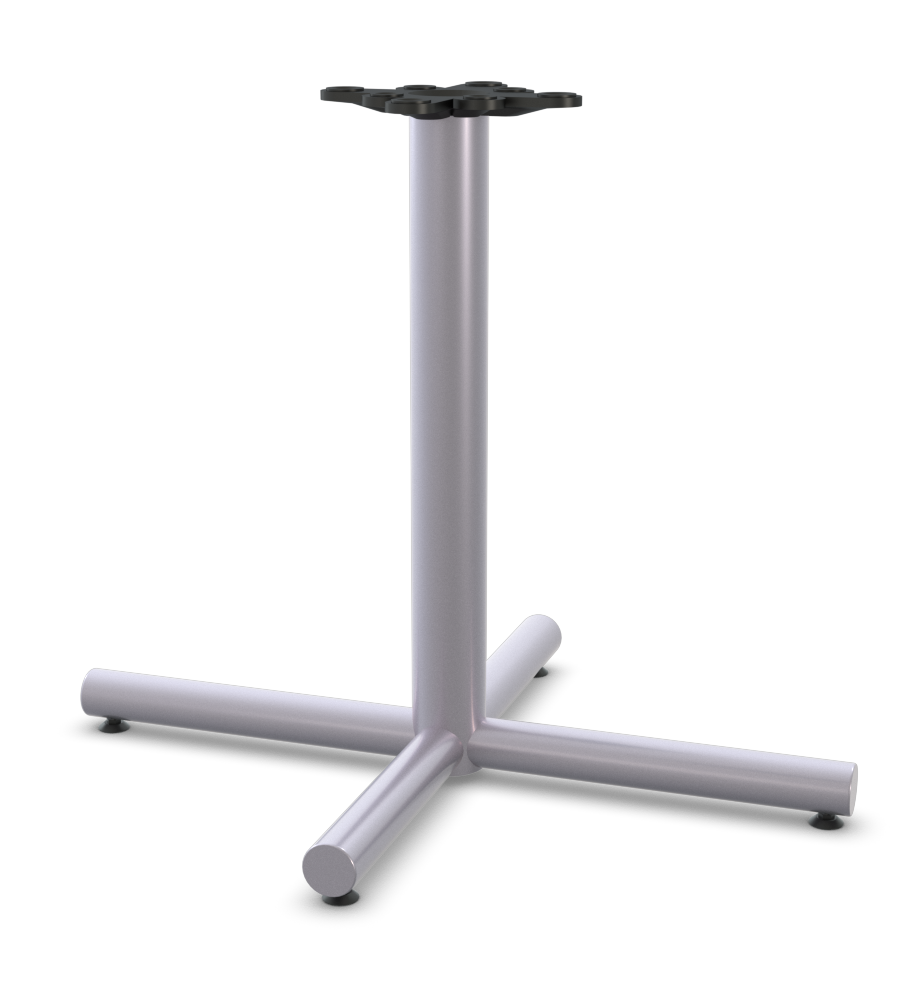

Product Preview
