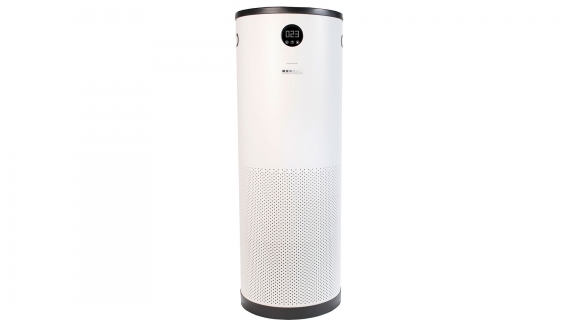

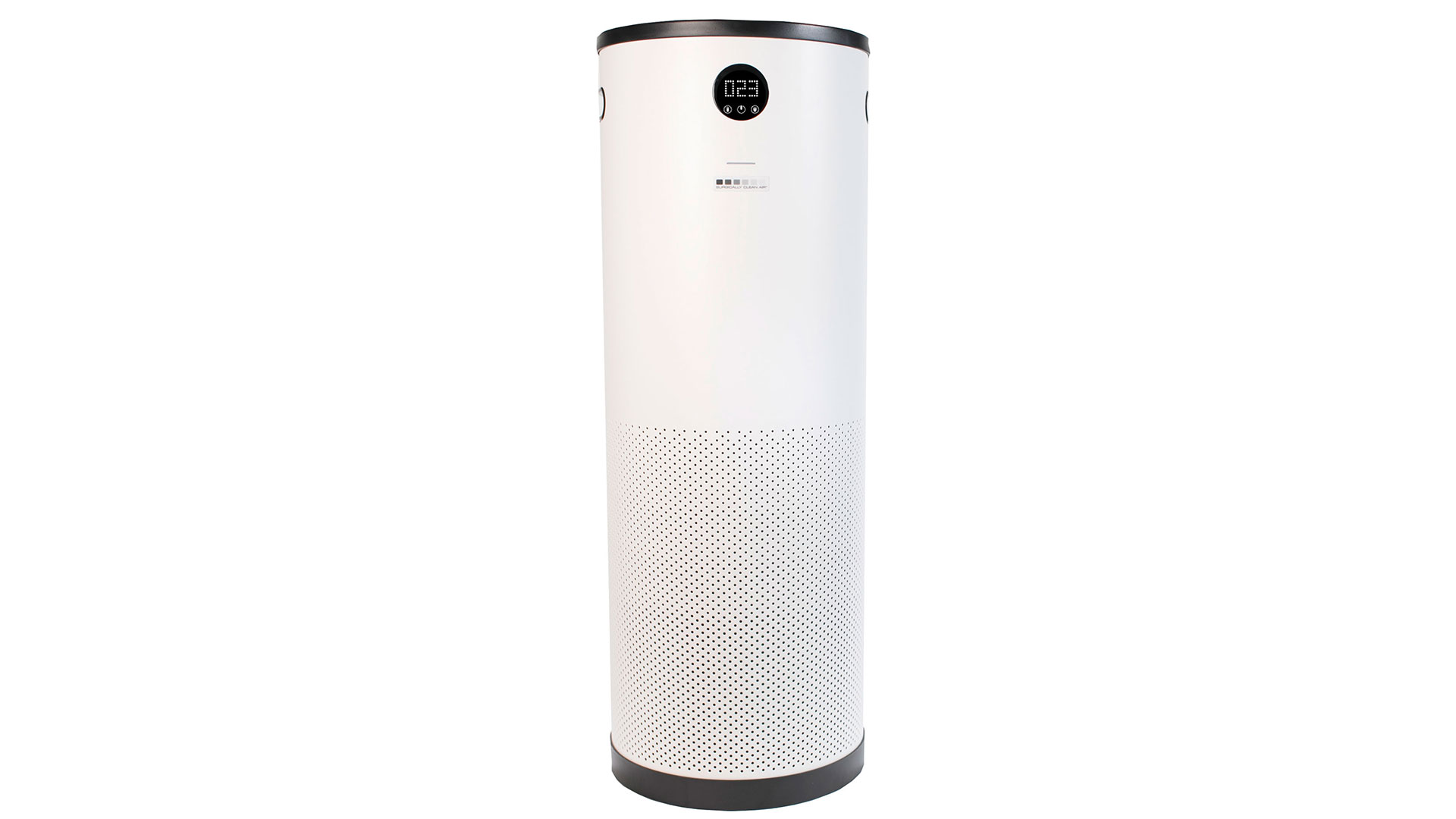

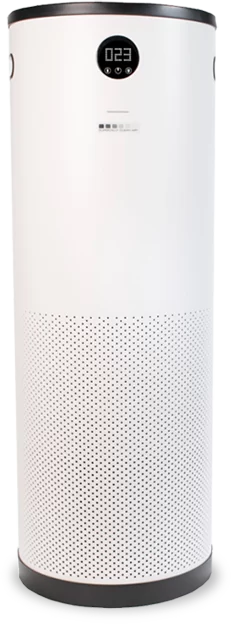

SCA Air Purification System - White
Remove 99.9%
of viruses, bacteria
& fungus
Upper Room GuardUV Germicidal Air Purifier

Air Purification Systems


Portable UV Photomax Air Purifier

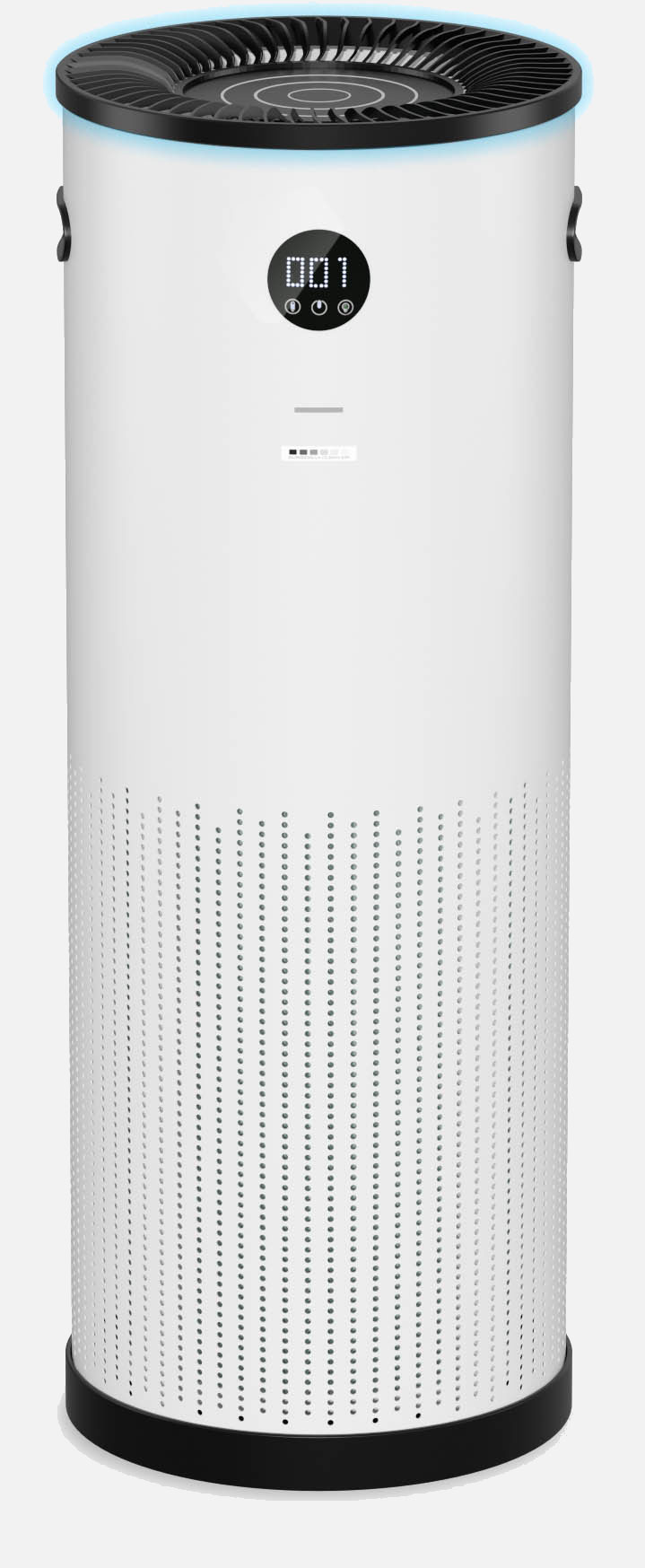

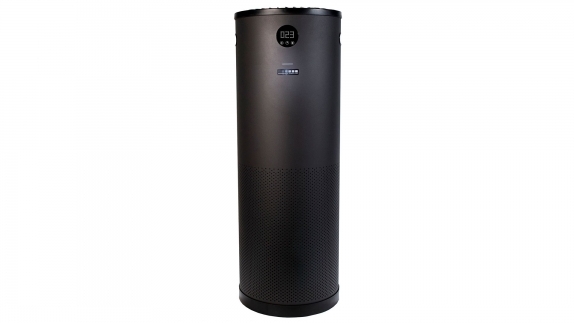

SCA Air Purifier
Upper Room GuardUV Germicidal Air Purifier
Portable UV Photomax Air Purifier

Navigate to:

SCA Air Purifier

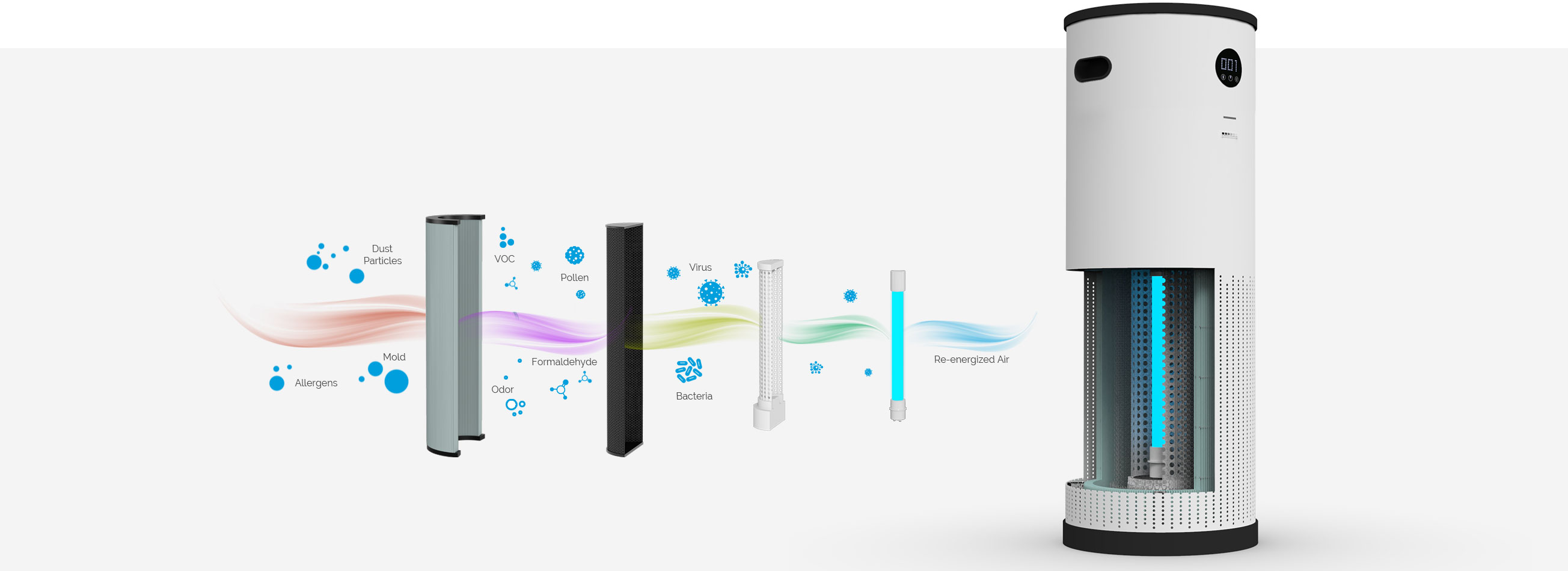

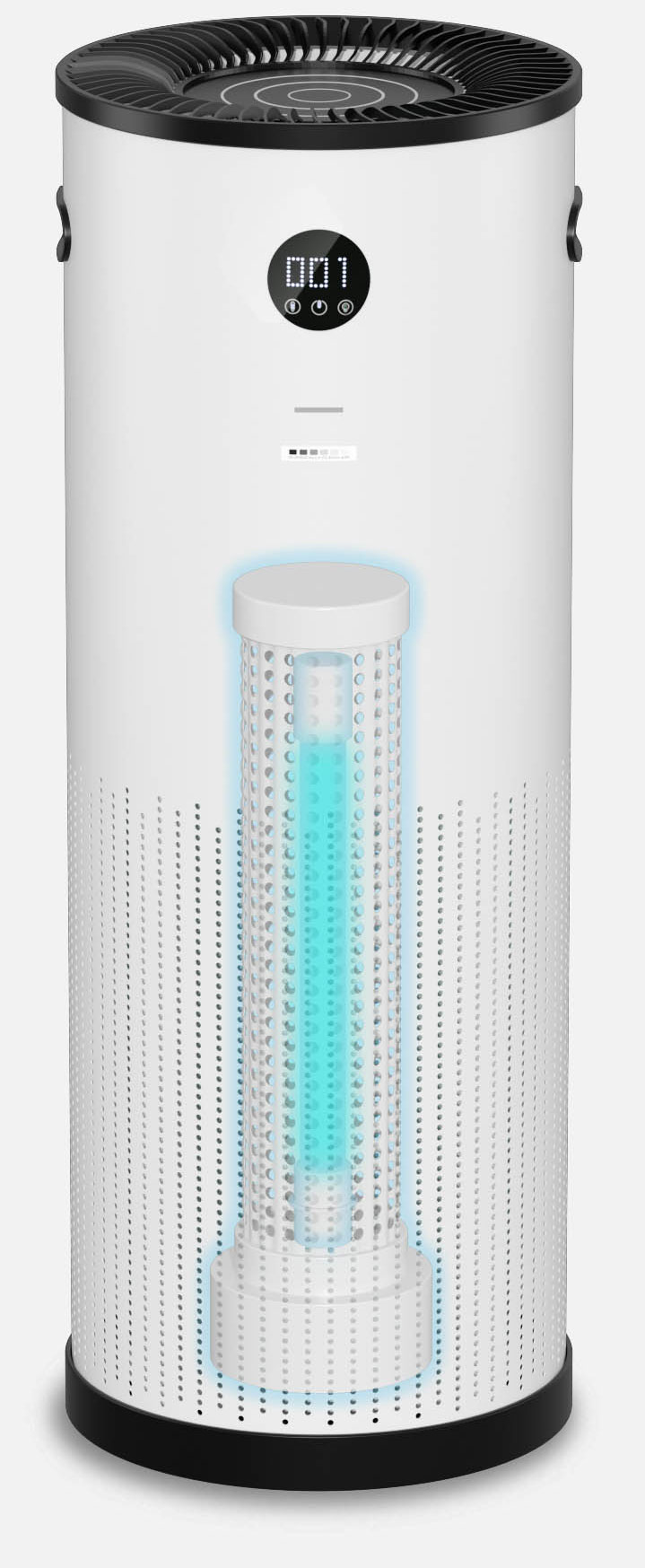

As the air is drawn through the bottom of the unit, it passes through the HEPA-Rx Filter, the Activated Carbon Filter and the Germicidal UV-C+ Photocatalytic Nano-TiO2 chamber. At the final stage, the purified air moves through the Revitalizing Negative Ion Generators near the air outlet and releases negative ions into the air.

Touchless Control

Hand Gesture Control Sensor helps prevent cross-contamination

Touchless Control

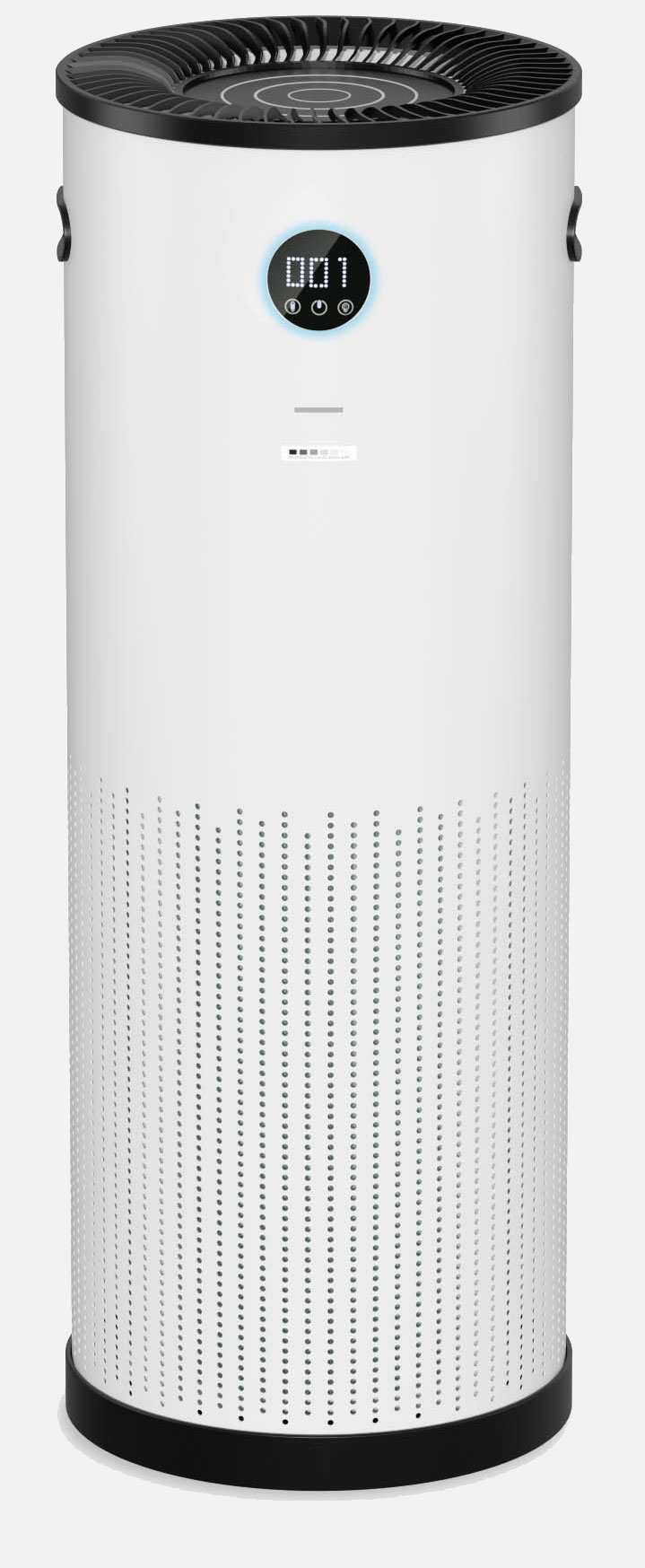

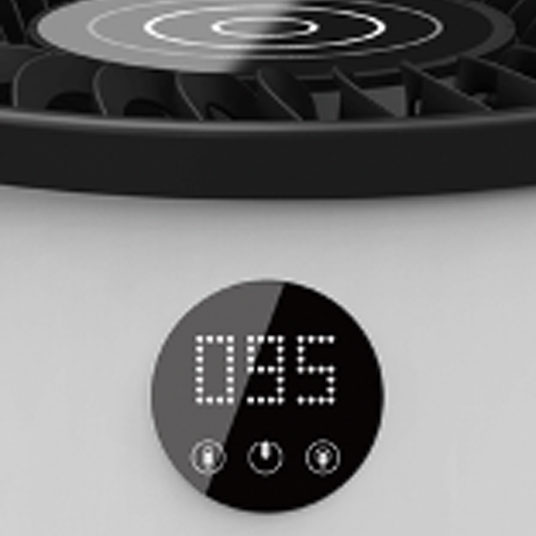

Digital display

Digital display

Shows levels of air flow, power, light and UV indicator

Absorption Process

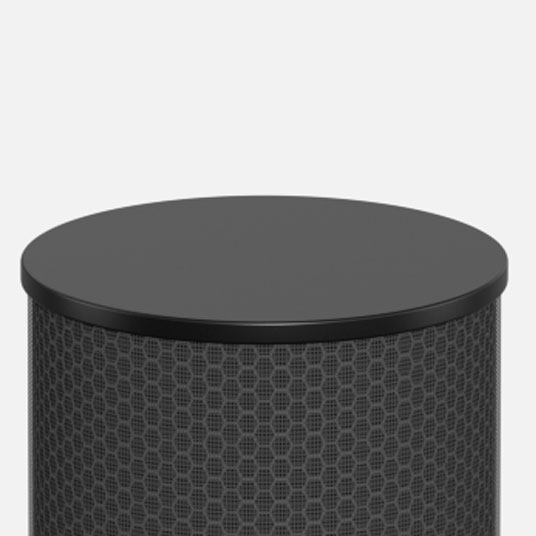

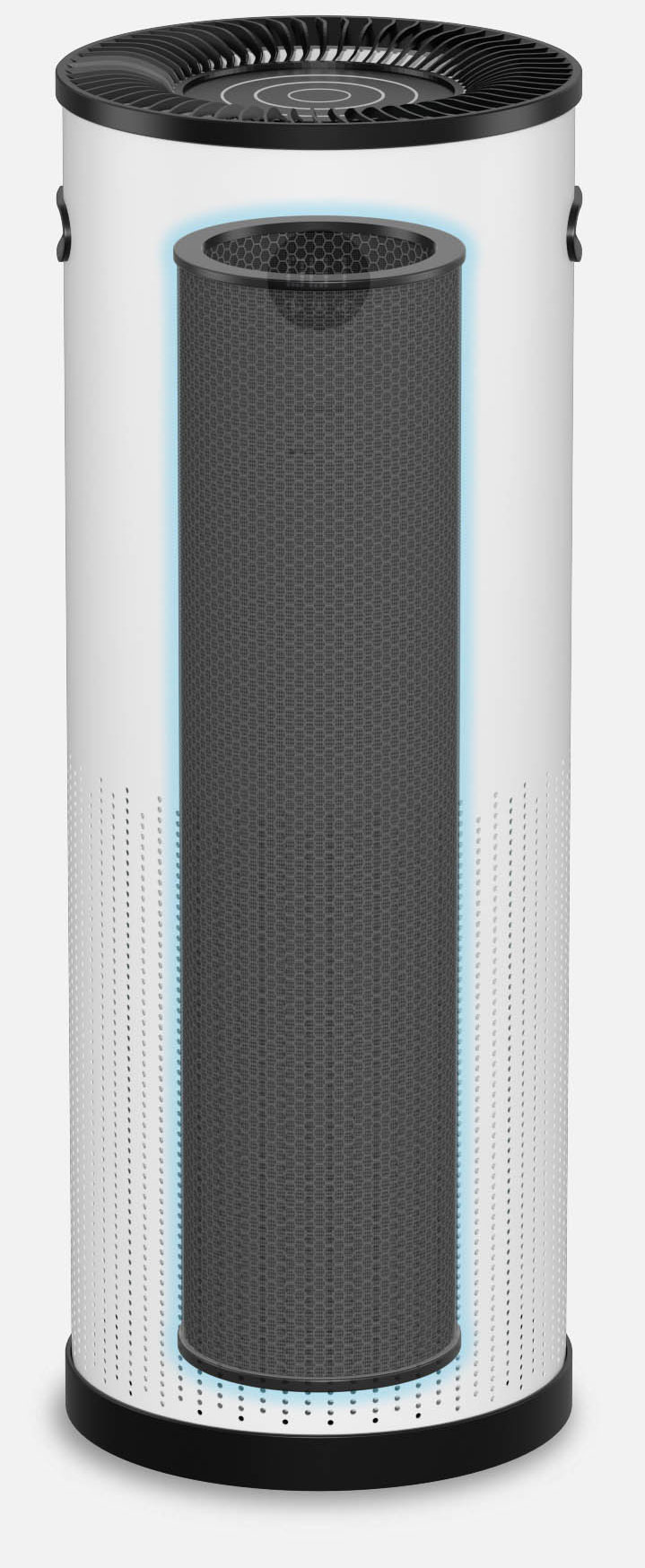

Activated Carbon Insert
Absorbs VOC's (Volatile Organic Compounds)

Activated Carbon Insert Absorbs VOC's (Volatile Organic Compounds)
Touchless Control
Digital display
Absorption Process
Re-Energize the Air
Virus & Bacteria destruction
Particles Capture
Re-Energize the Air

Re-Energize the Air

The negative ion generator makes indoor air feel more pure, clean and energized.

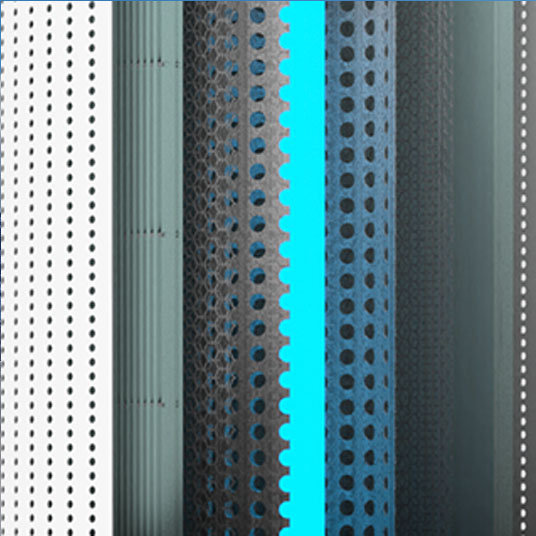

Virus & Bacteria destruction

Ultraviolet Light (UV) & Titanium Dioxide Chamber (T102) degrades chemicals, damages bacterial membranes, inactivates viruses and oxidizes VOC's

Virus & Bacteria destruction

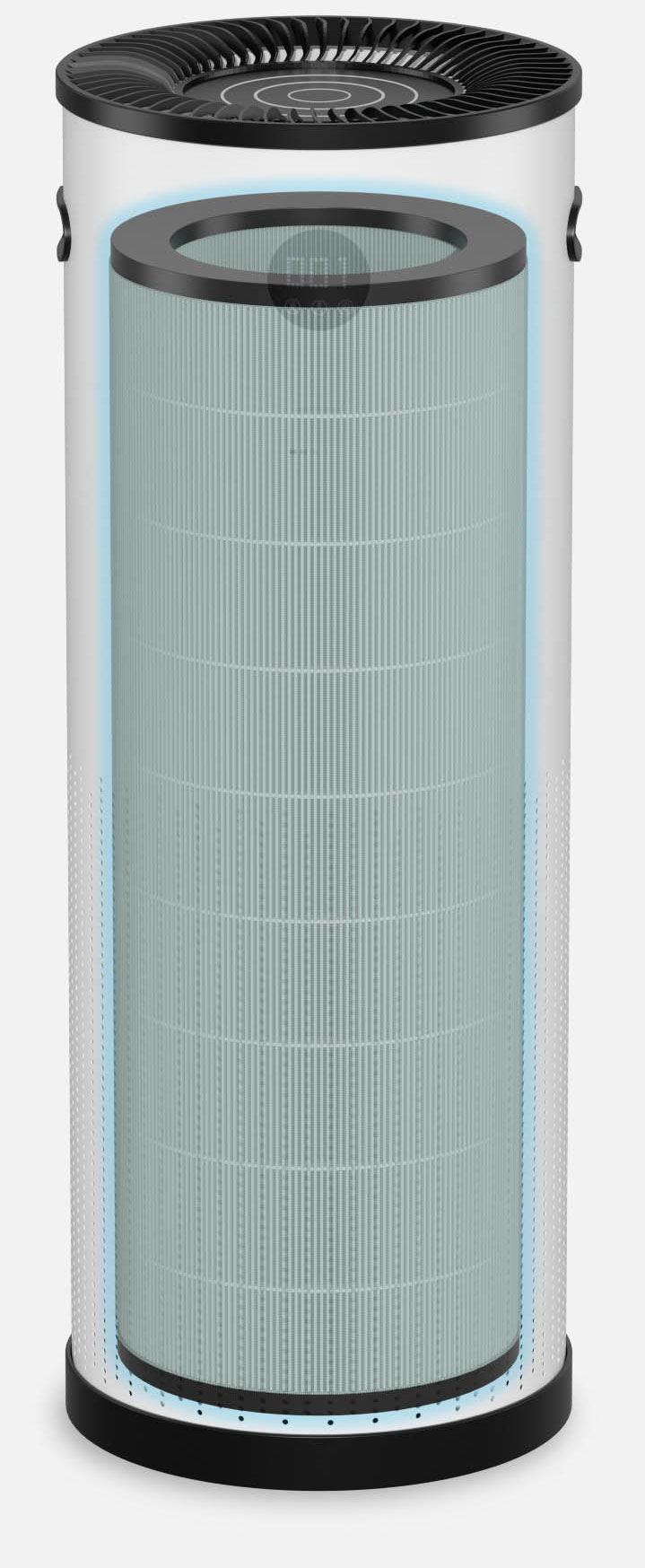

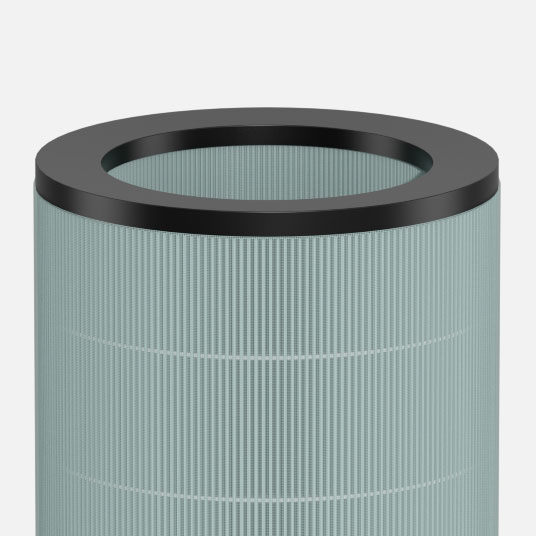

HEPA-Rx Filters

Particles Capture

HEPA-Rx Filter removes 99.998% of particles at 0.1 microns in size, the size of a typical virus

Medical Grade

Cleans and Sanitizes Indoor Air

Safe-T air purification systems systems use a 4-step, 6- stage air purification process doesn’t just remove the smallest particulates of pollution, it DESTROYS them.

The Pre-Filter & HEPA-Rx Filter stage captures even ultra-fine particulates, with 99.998% of particles at 0.1 microns and 99.2% of particles at 0.0025 microns.

Covid-19 virus is at 0.12 microns.

Medical Grade

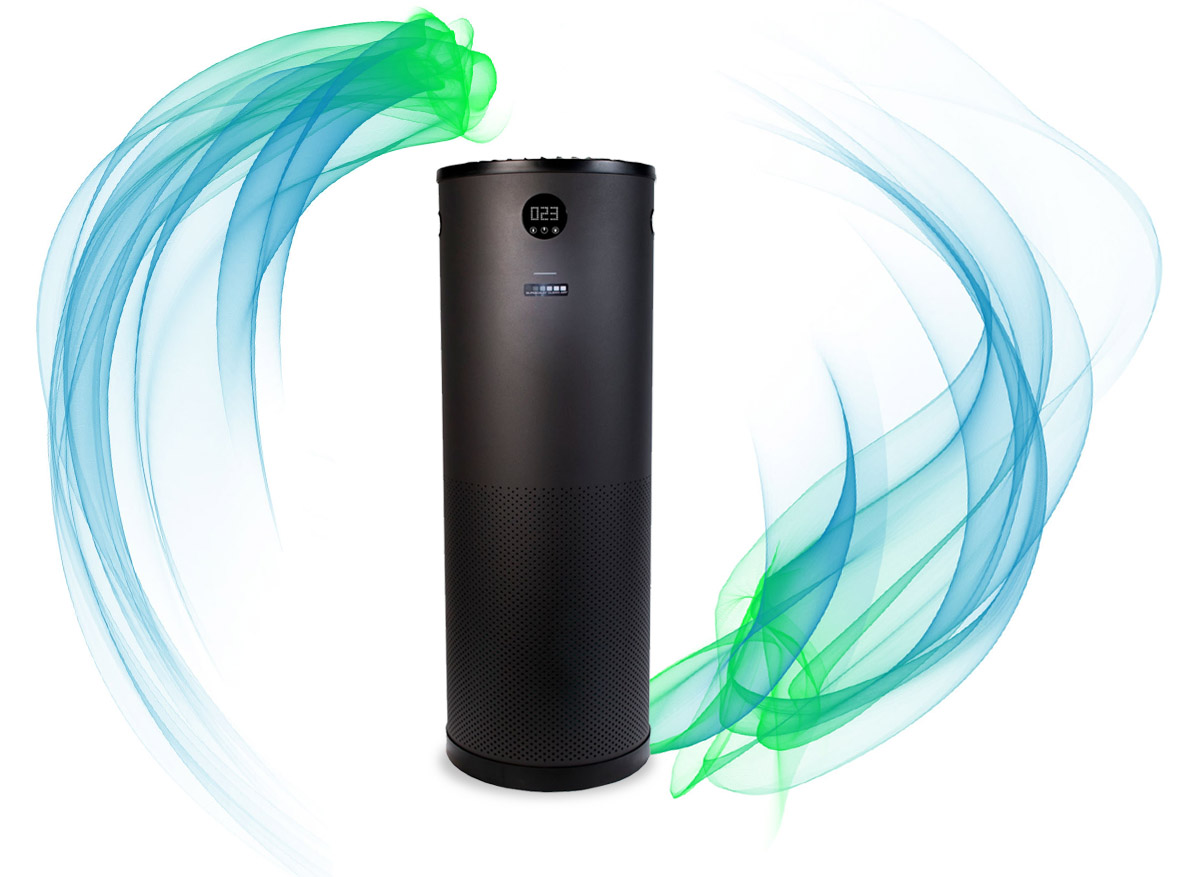

High Volume Air Flow

High Volume Air Flow

To achieve the best air quality, it is advised to reach 4-6 air changes per hour (ACH). Safe-T Air Purification products make 3 ACH. Together with an HVAC system which makes 1-2 ACH, any space regardless of its size receives maximum ACH required.

To calculate a correct number of air purification units in a space, the following factors are taken into consideration: air changes per hour, air flow rate, and a space size including ceiling height, room length and width.

Touchless Control

Wave a hand above the air purifier to turn it on and off and to switch between the work modes to ensure safety and avoid cross-contamination.

Touchless Control
Molekule Air Purifier - Science

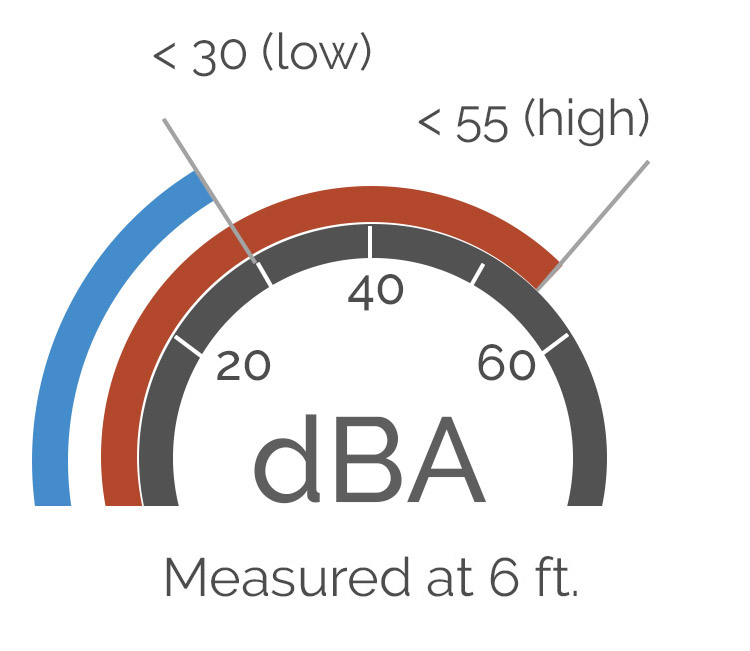

Whisper Quiet

Noise-canceling sound dampening design keeps the sound volume at very low levels 30dBA - 55dBA

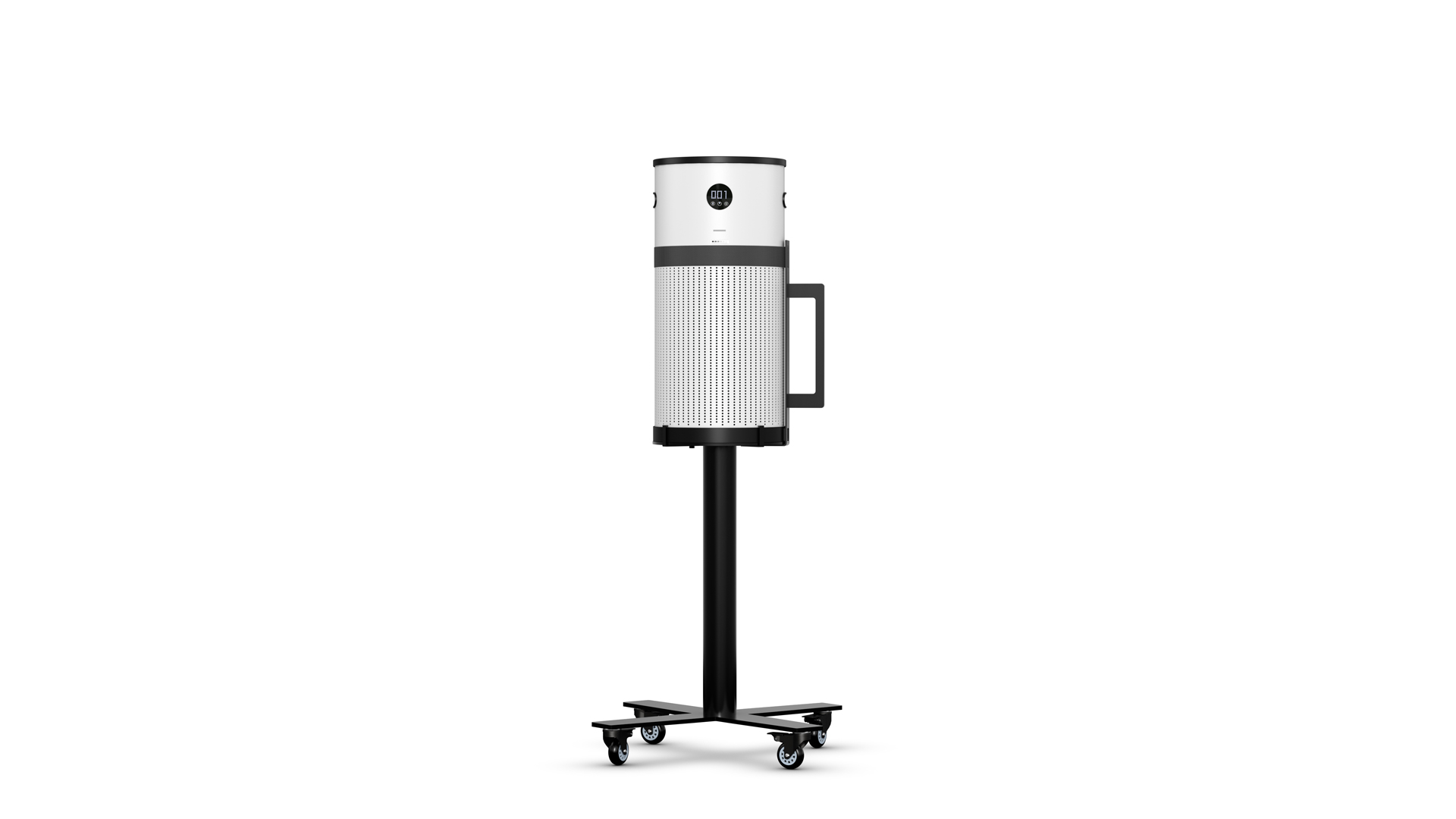

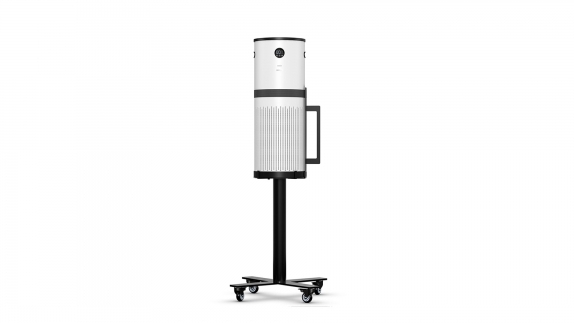

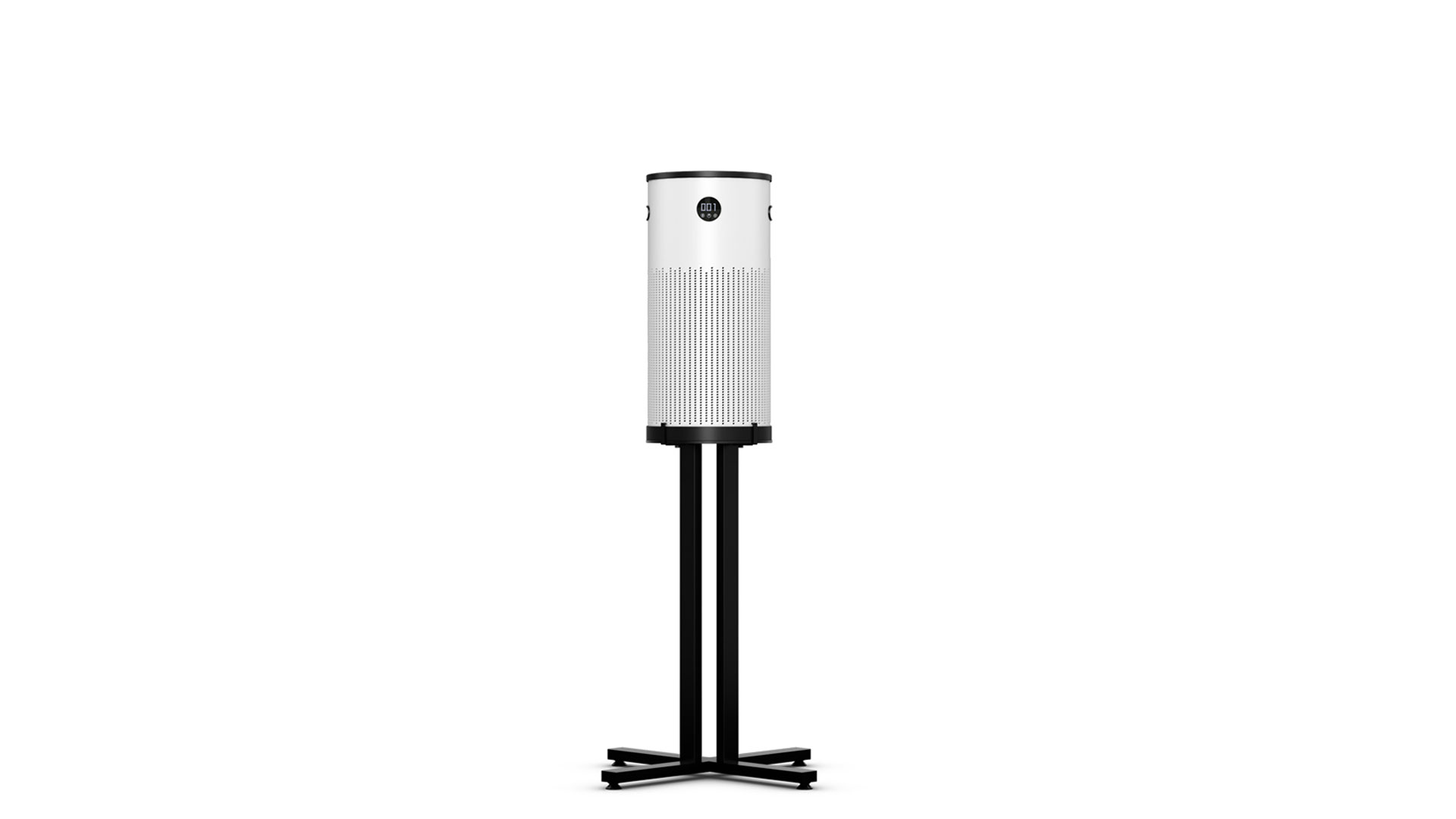

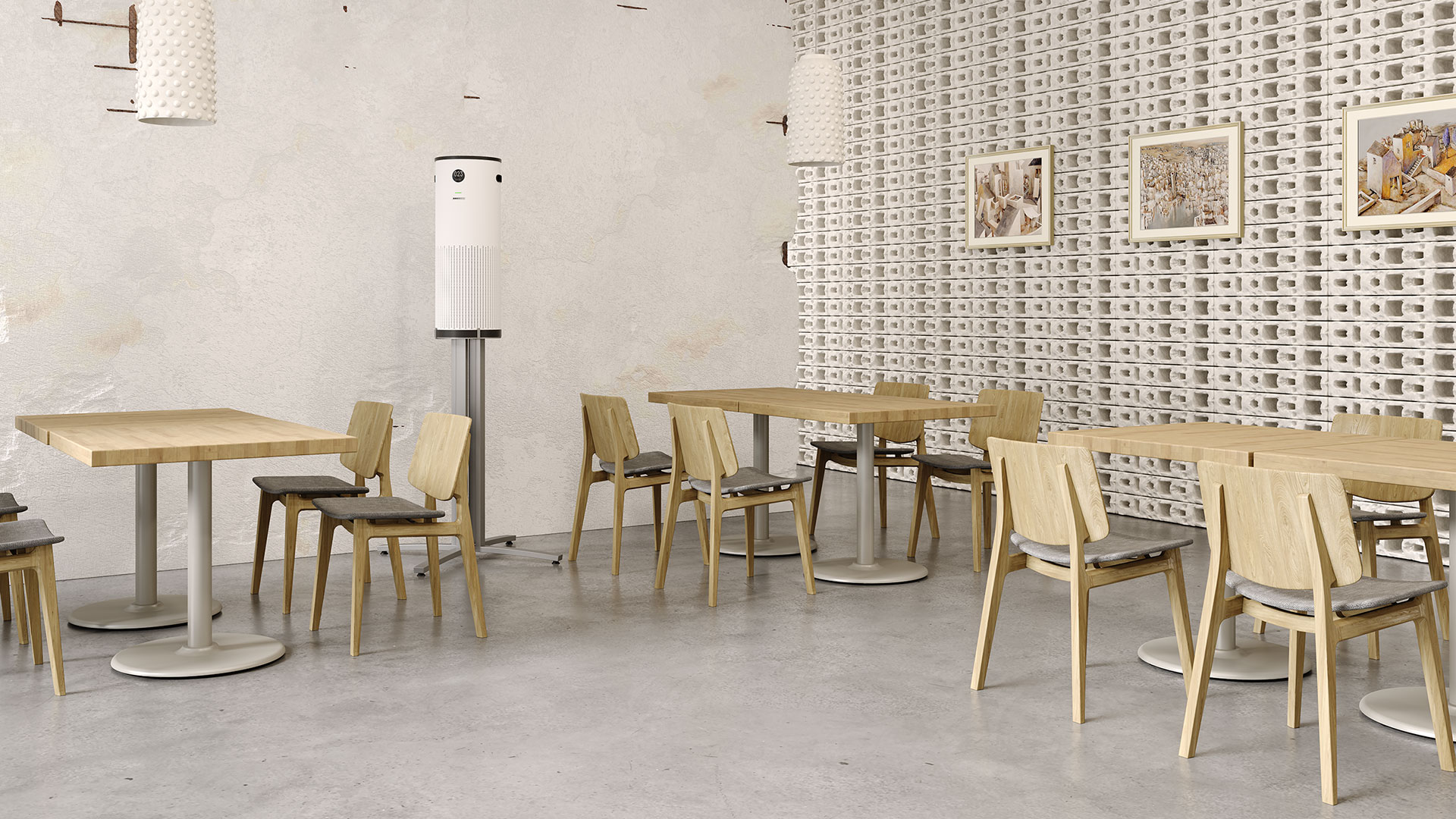

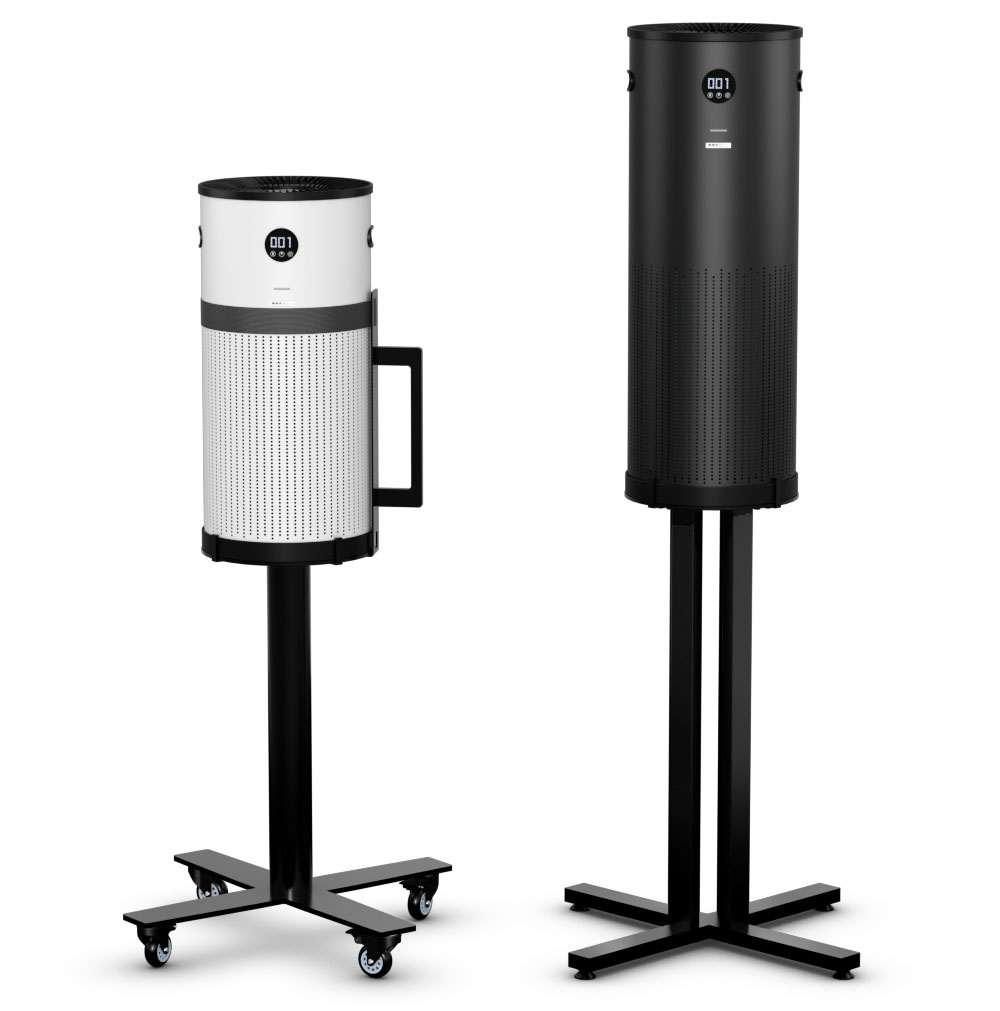

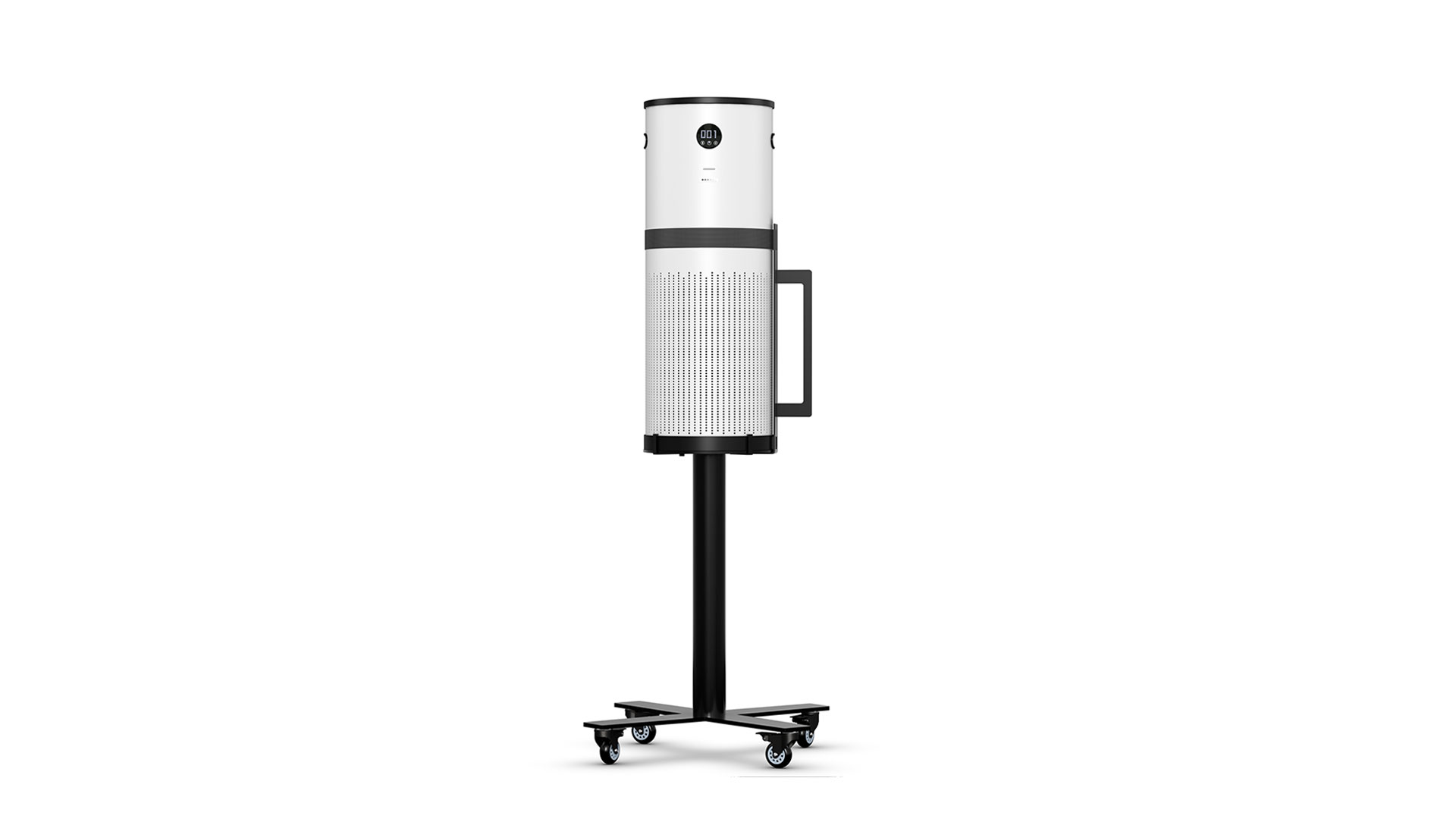

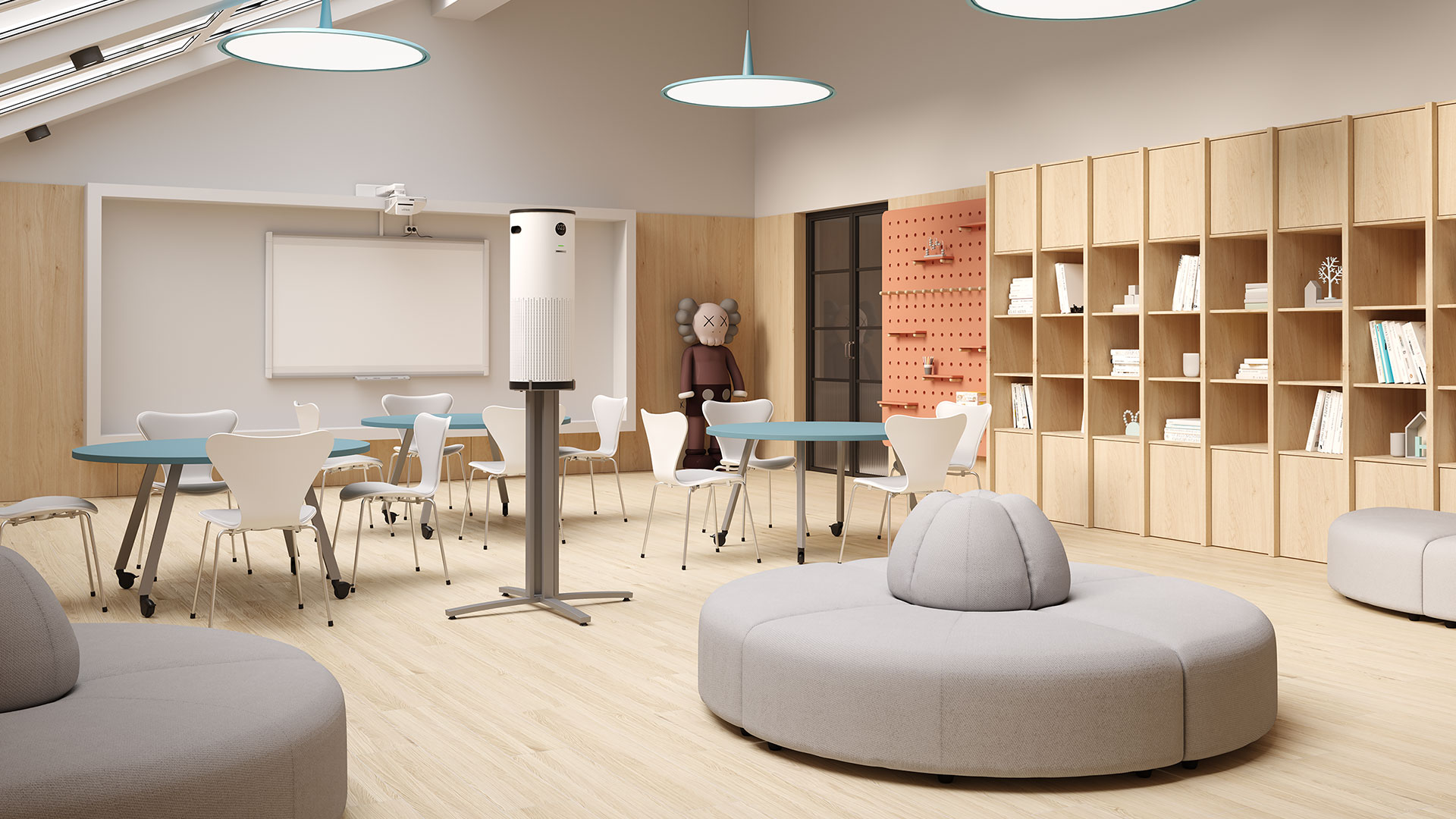

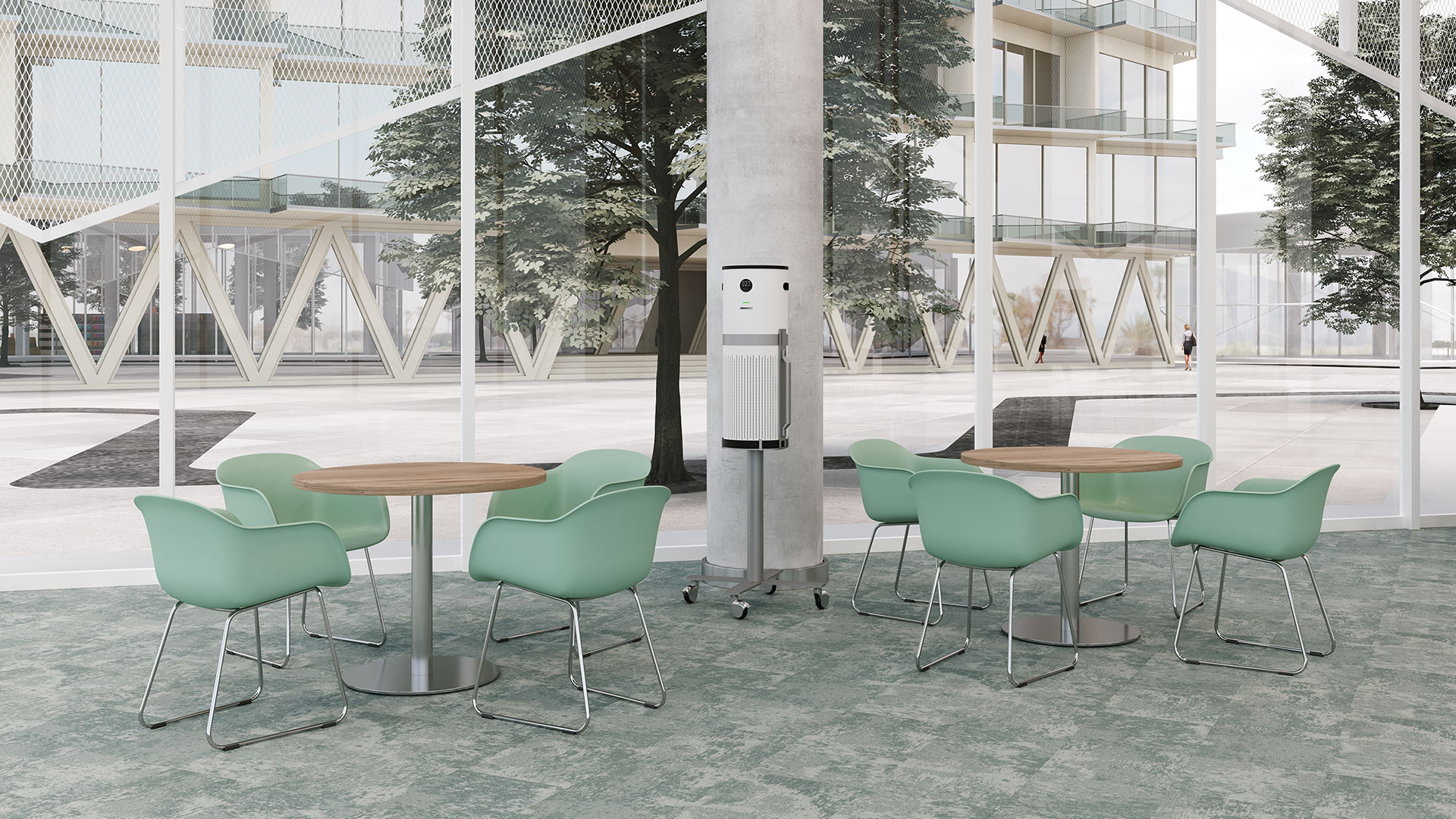

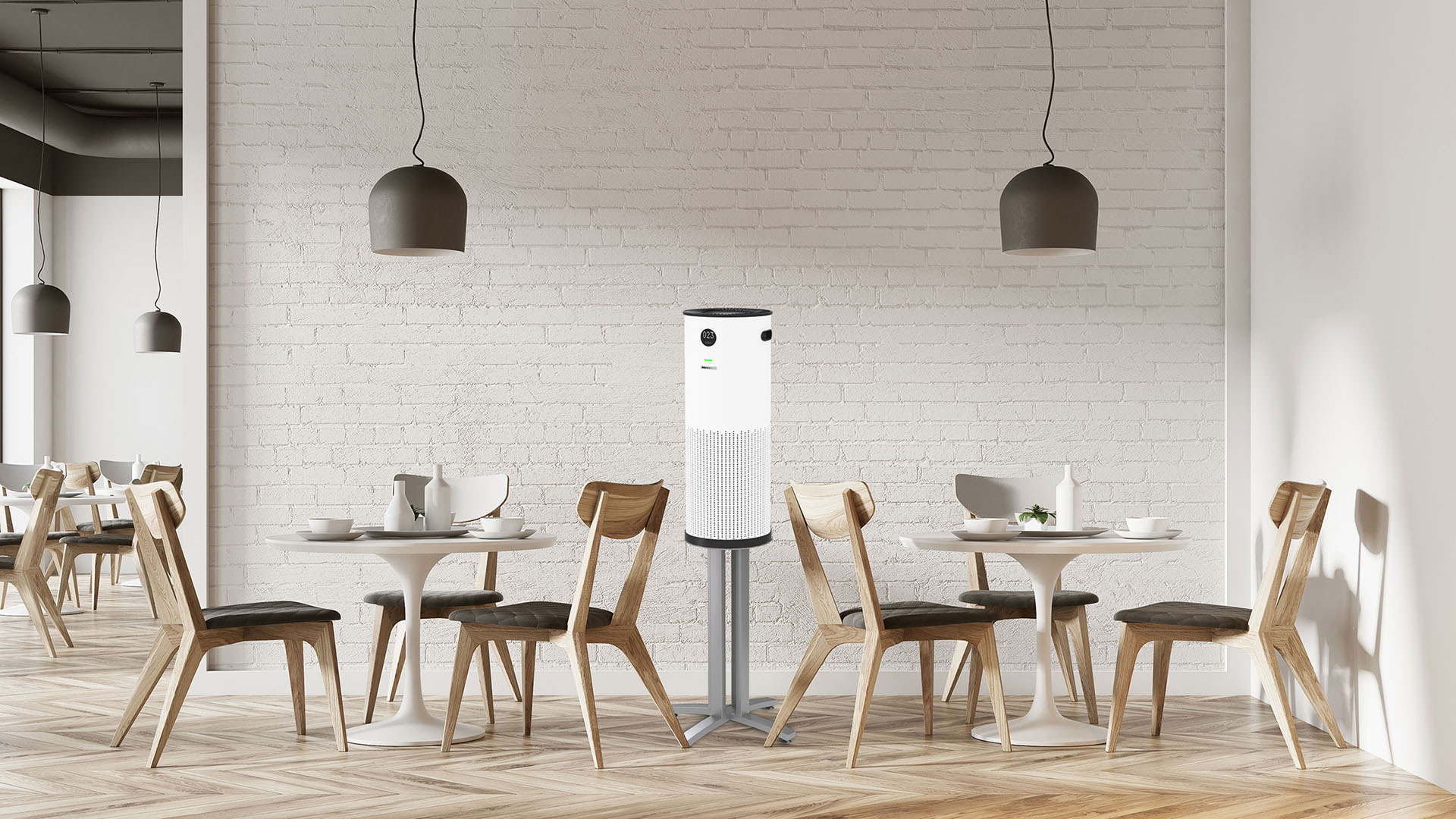

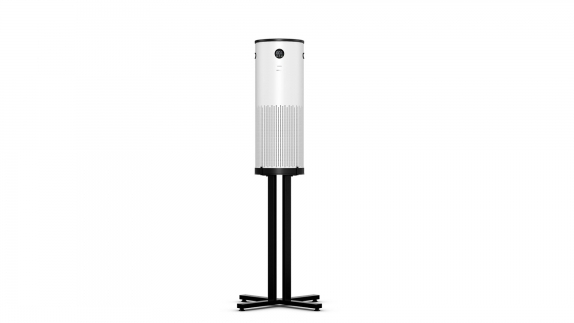

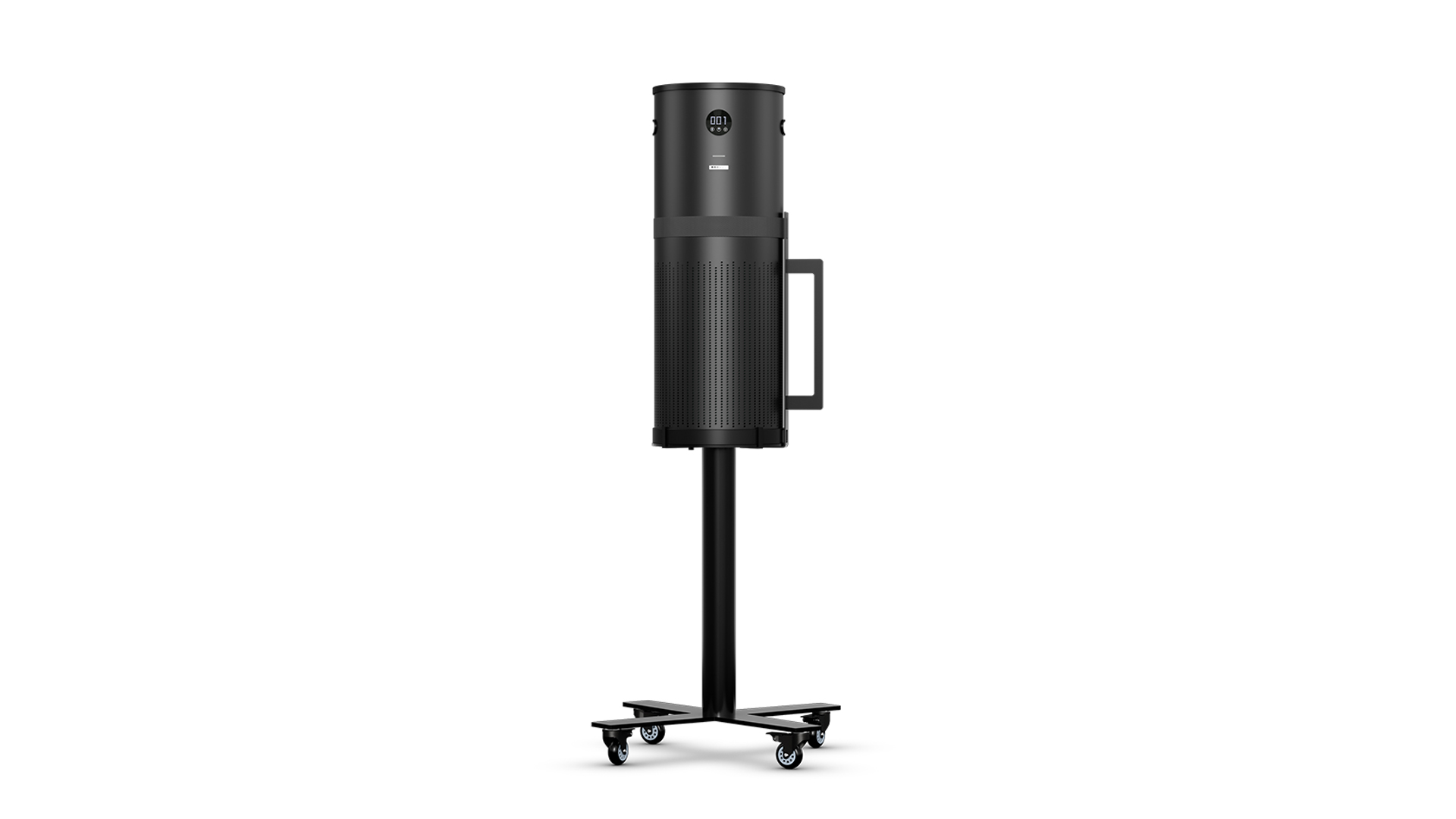

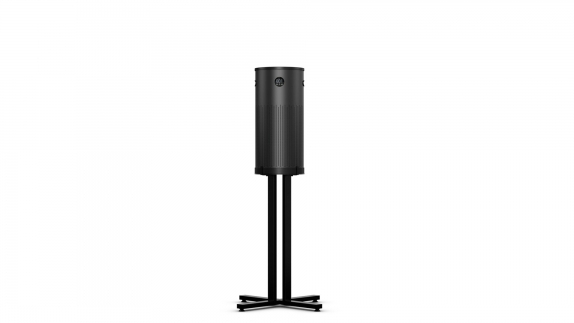

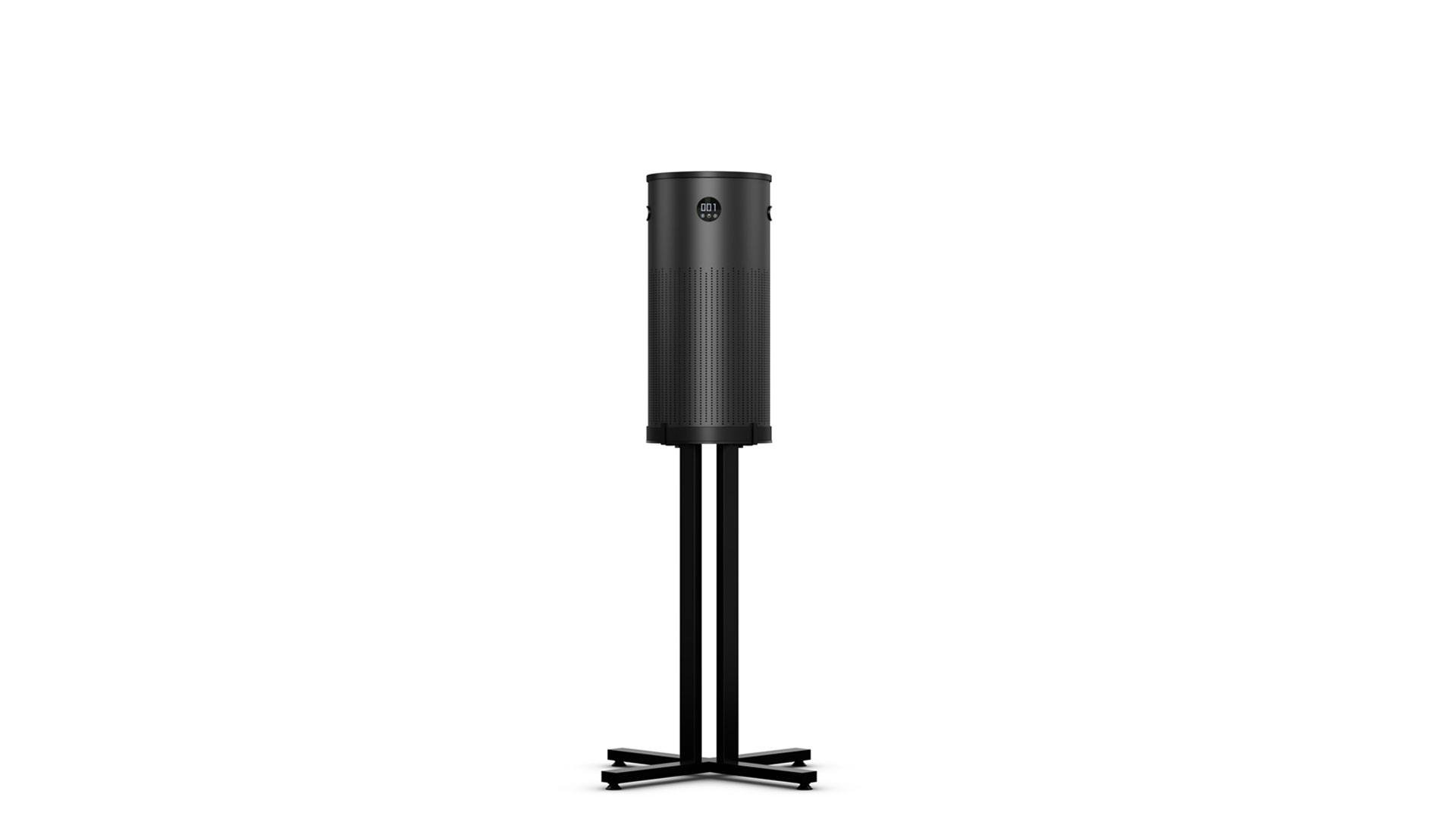

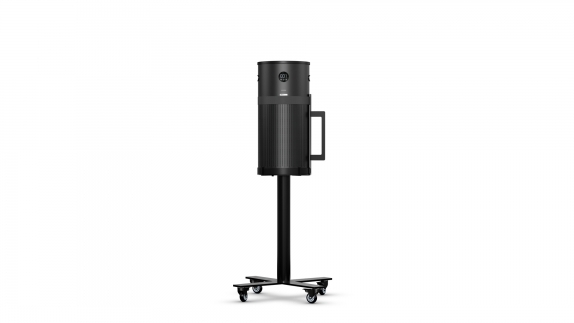

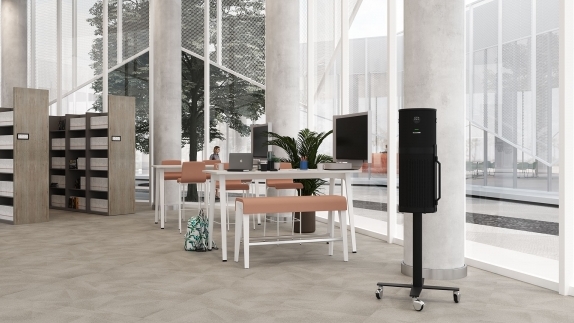

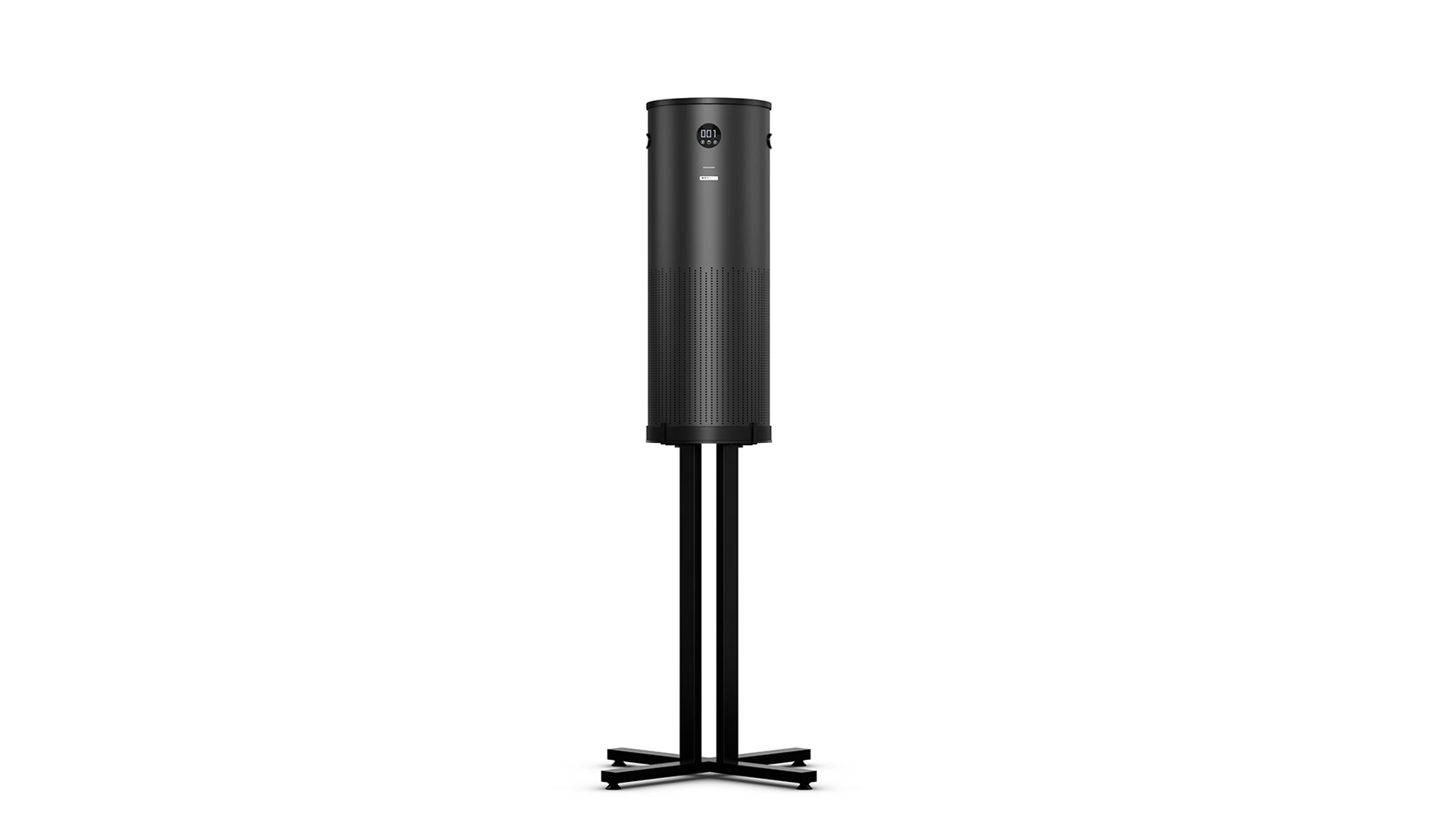

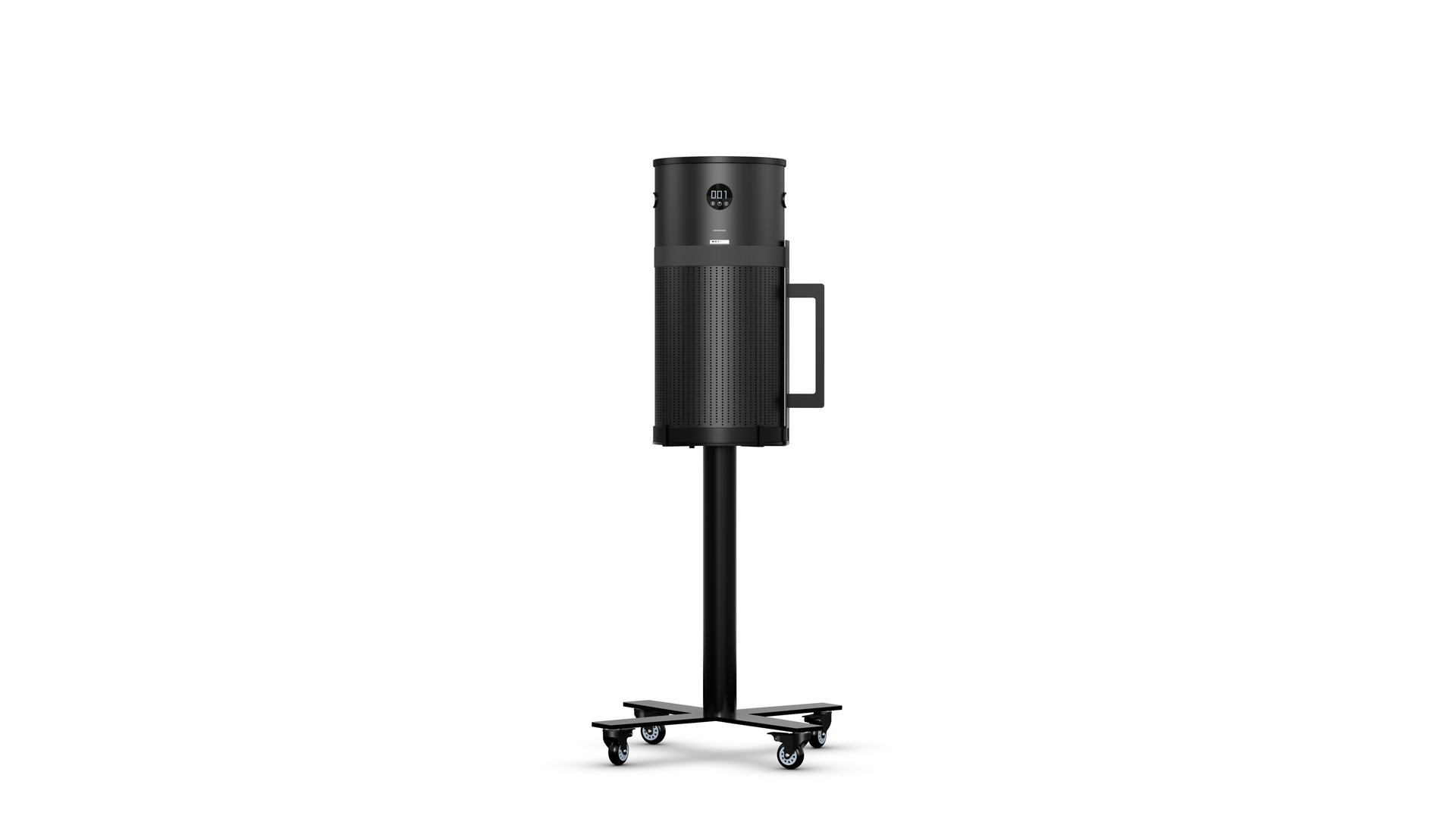

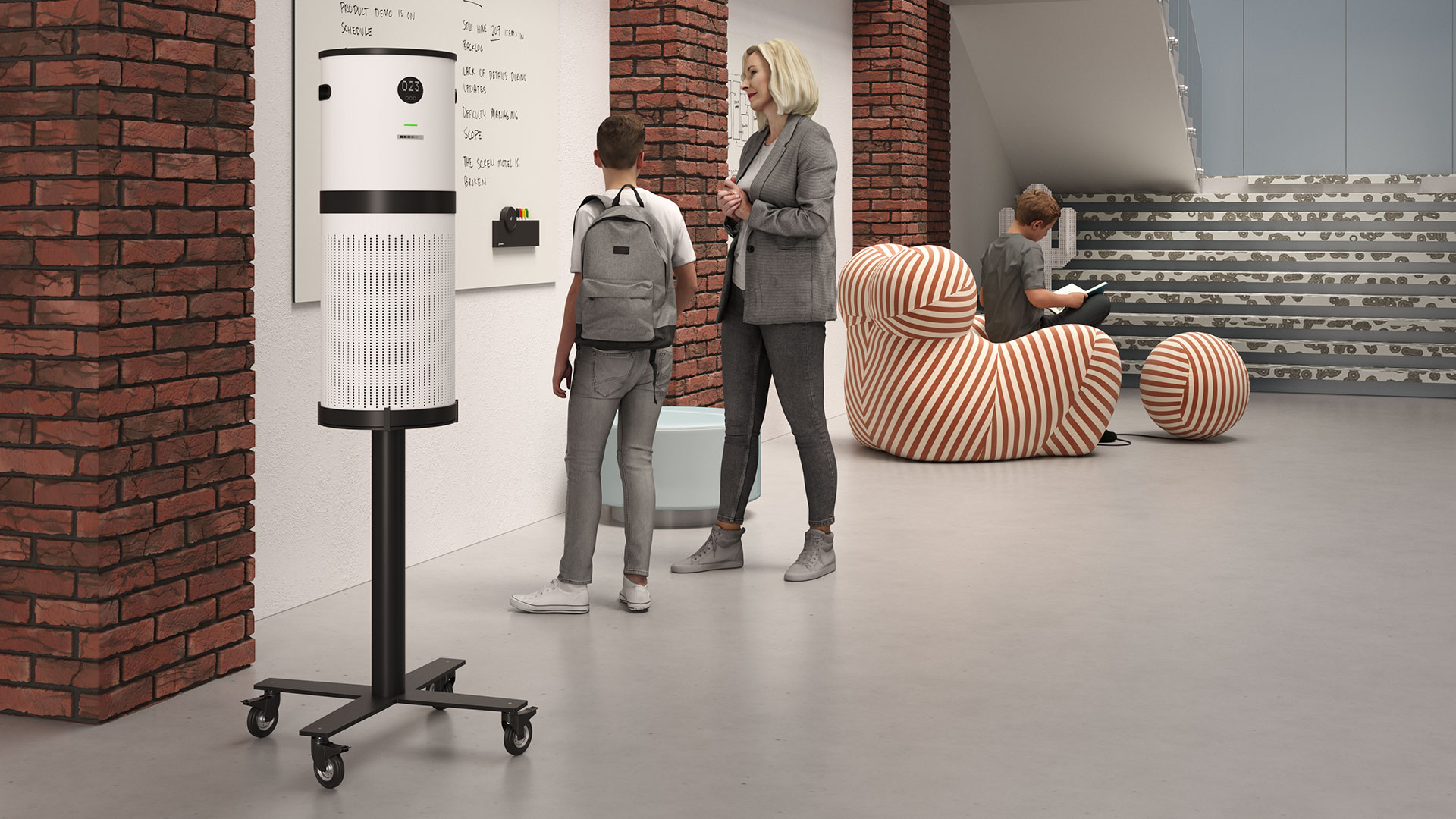

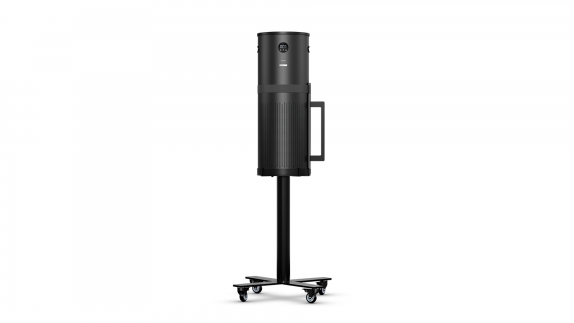

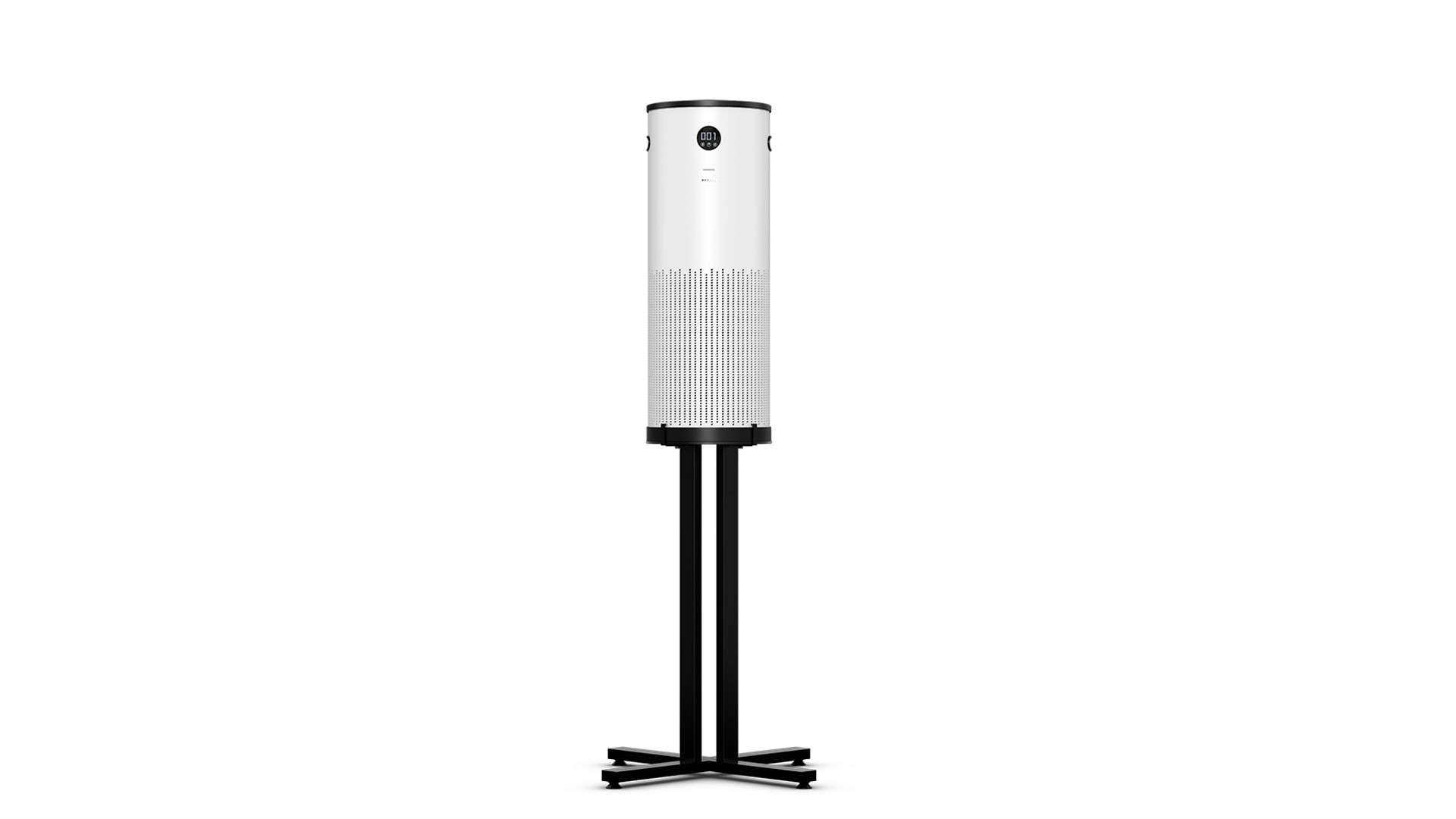

Stands

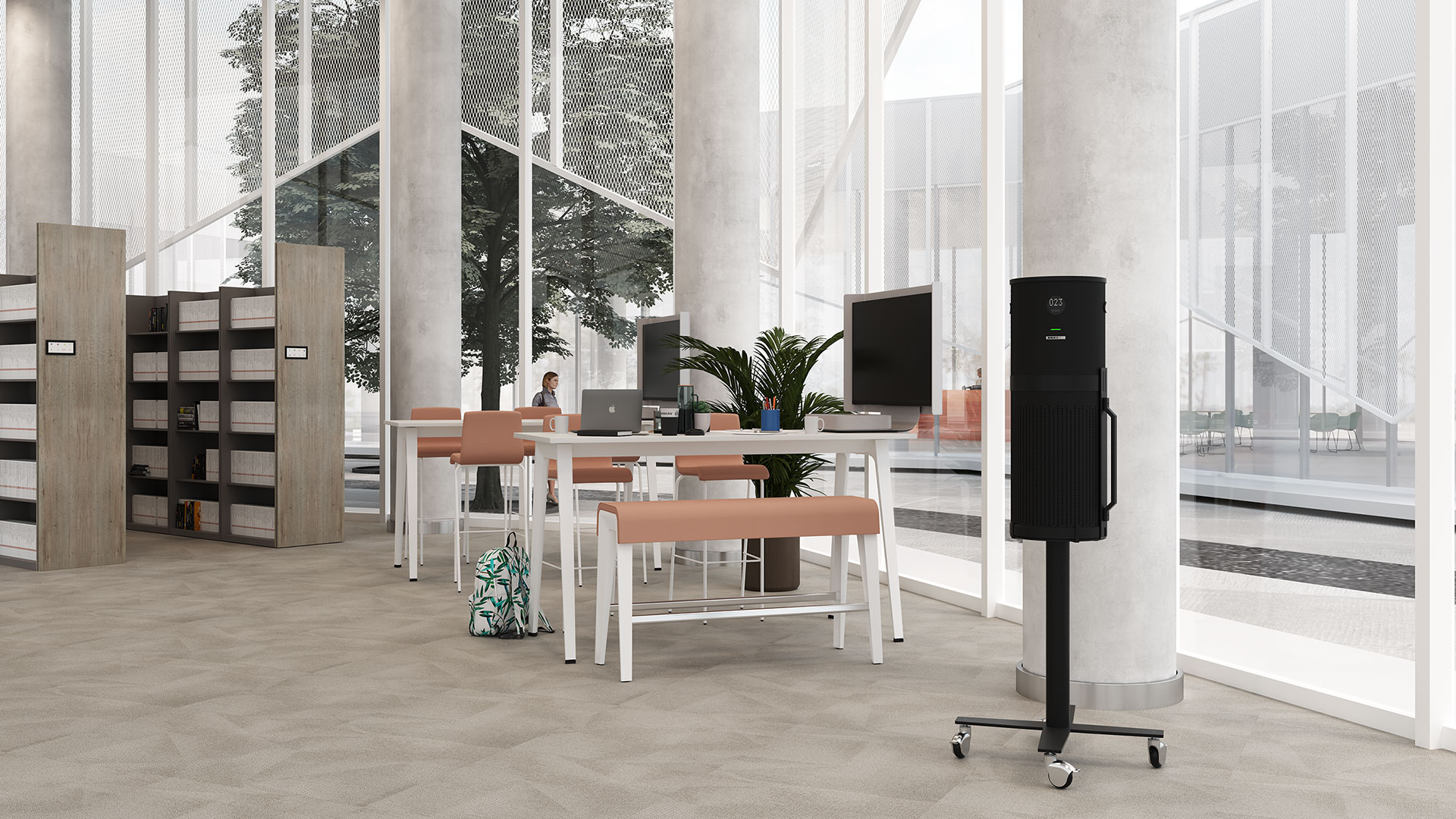

The stands raise air intake to mouth level. The two heights are designed to draw air in from 360 degrees around the air purification devise in standing or seated position. Mobile stand features heavy-duty locking casters that can easily transport air purification unit to another area. Aesthetically pleasing design seamlessly blends in any interior space.

Air Purifier - Stand

6 Stages of Air Purification

6 Stages of Air Purification
HEPA-Rx
Filter
Captures microscopic
particles in the air
Carbon
Filter
Absorbs odors
and gases
Photocatalytic
Nano-TiO2
Kills bacteria and viral
microorganisms
Germedical
UV-C+
Creates e- and h+,
to decompose remaining
bacteria and odors

Industrial Strength

Meets MERV (13-16) Categorization of ANSI Standard 52.2

Safe-T air purification systems utilize multi-stage air purifying technologies that work together to clean, purify and re-energize the indoor air.

Don’t Just Filter Pollutants - Destroy Them

The multi stage filtration system captures dust particles, pollen, volatile organic chemicals (VOCs), mold, allergens, viruses, odors (like formaldehyde and smoke), bio-aerosols, nitrous oxide, and many other pollutants that are found in the air.

Dust Particles

Pollen

Volatile Organic Chemicals

Mold

Allergens

Viruses

Odors

Bio-Aerosols

Nitrous Oxide

Formaldehyde

When do the filters need to be changed?

The HEPA-Rx filter needs to be changed once a year

The HEPA-Rx filter needs to be changed once a year
(running 24/7)

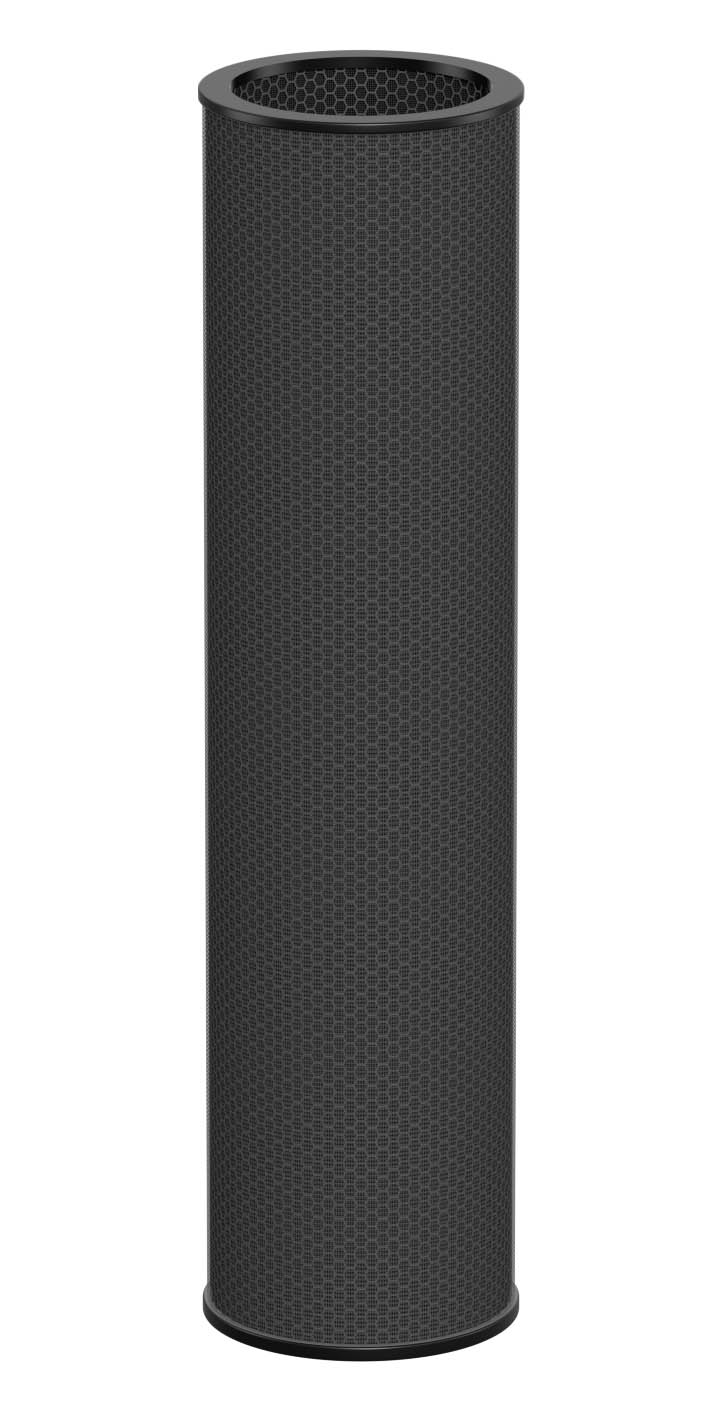

The Activated Carbon filter needs to be changed 3 times a year

The Activated Carbon filter needs to be changed 3 times a year
(running 24/7)

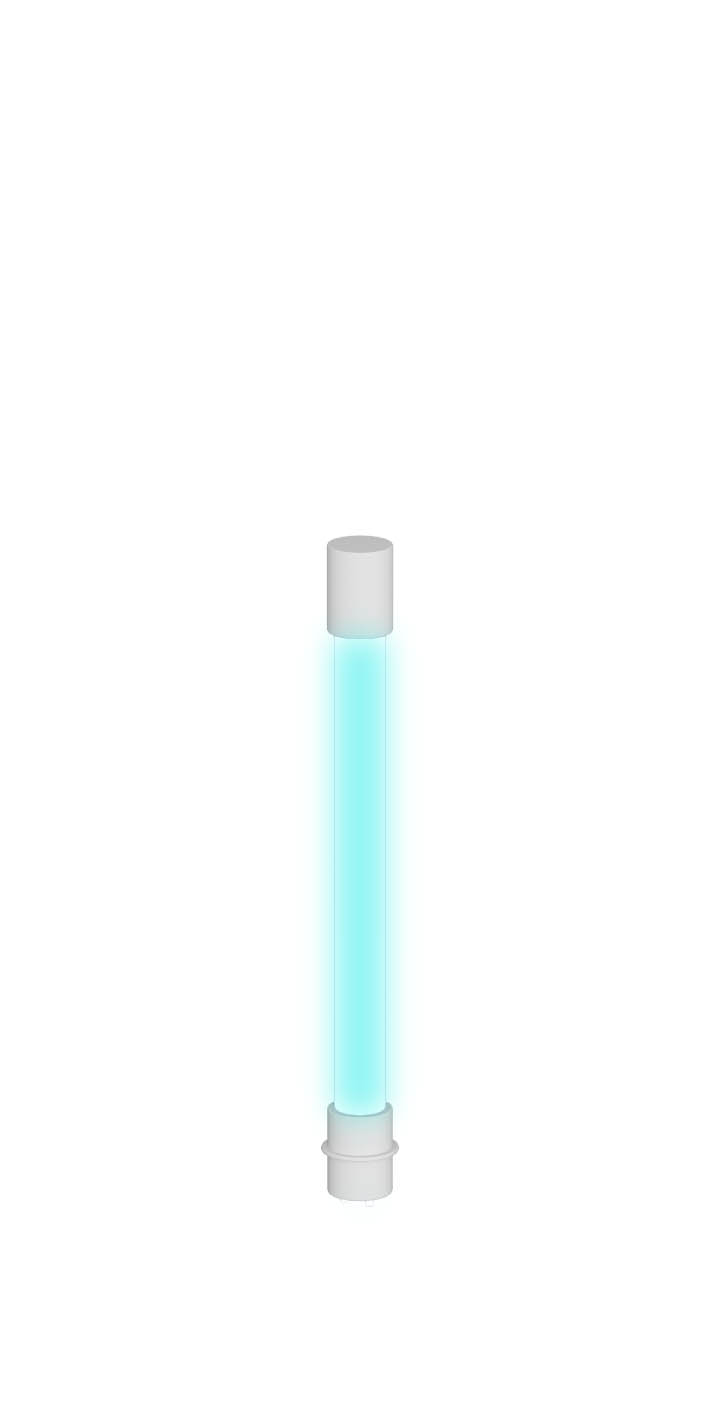

The Germicidal UV-C+ needs to be changed just under one year

The Germicidal UV-C+ needs to be changed just under one year
(running 24/7)

Trusted & Loved By

Trust the brand that is embraced & entrusted by Medical Professionals, Pro Sports Teams & Fortune 500 Companies to clean, purify & re-energize their air.





Protected Over 10,000 Dental Professionals

Specifications

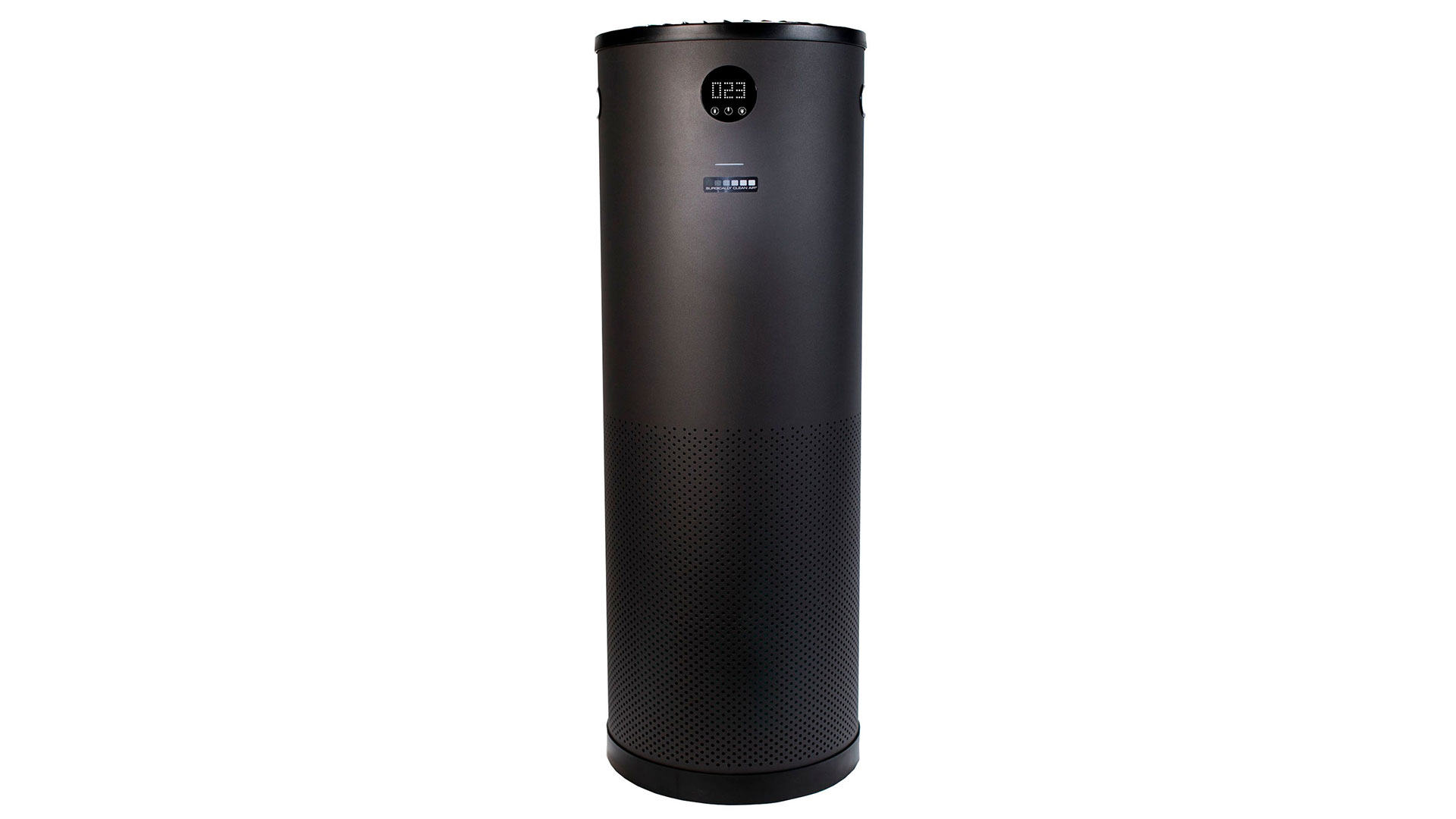

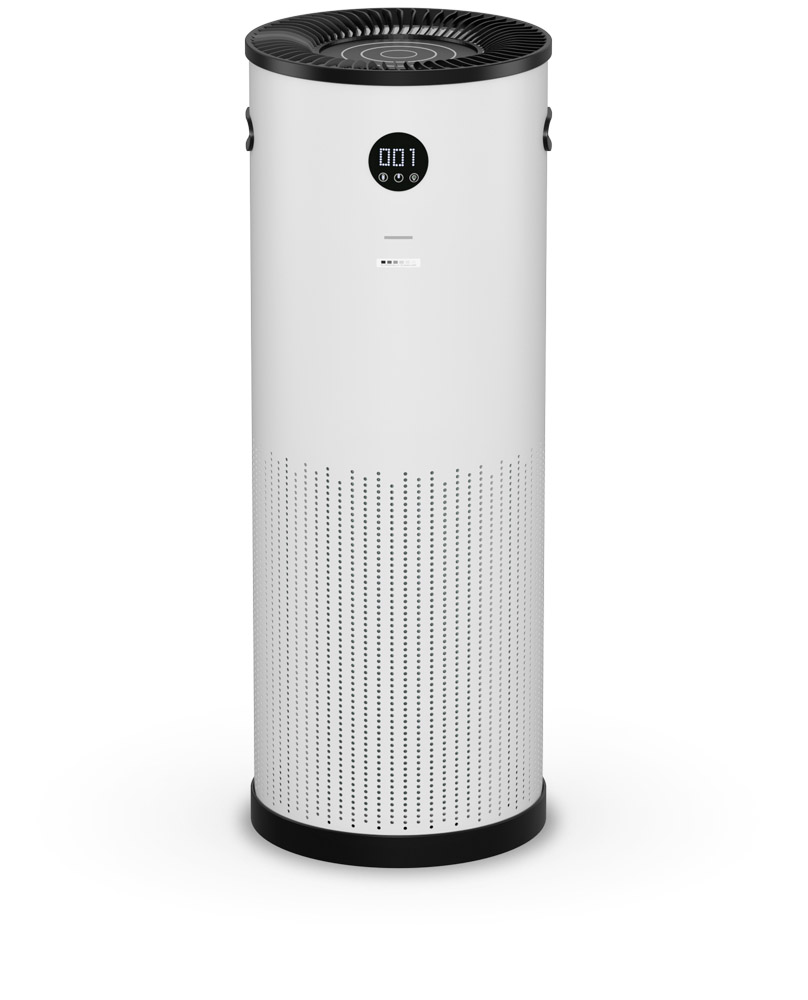

SCA-B / SCA-W SCA-X-B / SCA-X-W

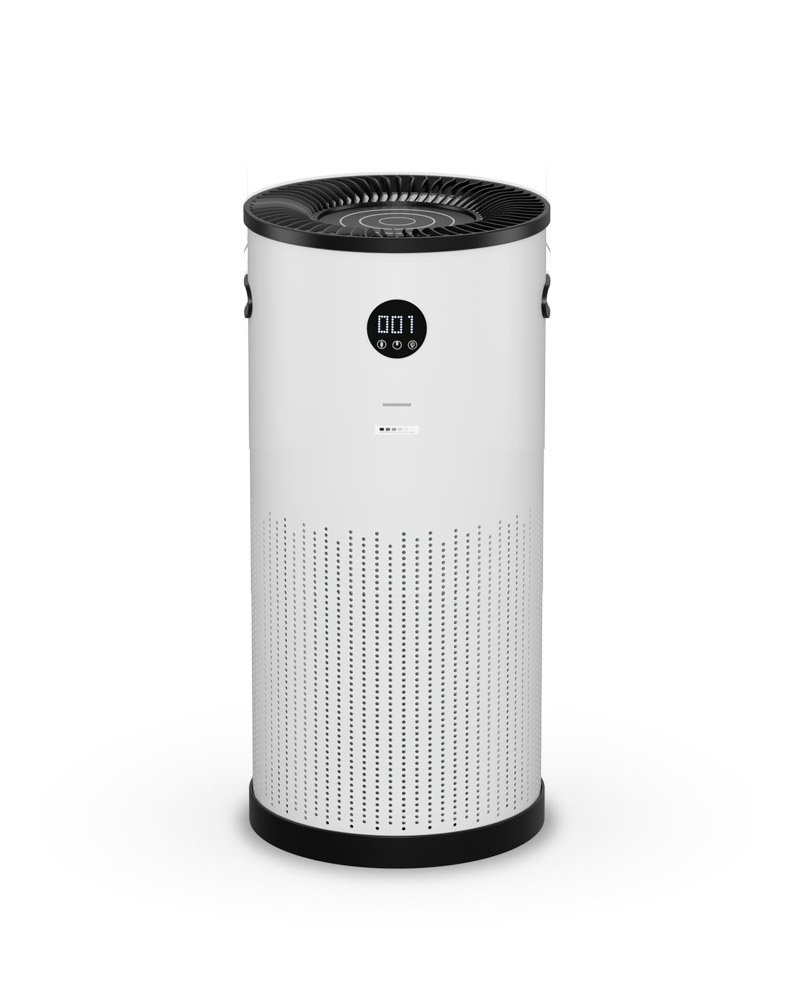

Model Name SCA-B / SCA-W SCA-X-B / SCA-X-W
Dimensions 26"H x 12"W 33.5"H x 12"W
Weight 25.4 lbs 30.6 lbs
Fan Speed 4 Speeds, Auto Mode 4 Speeds, Auto Mode
Sound Level (Measured at 6ft) Low <30dBA | High <55dBA Low <30dBA | High <55dBA
Ultrafine Particle Filter HEPA-Rx HEPA-Rx
Activated Carbon Filter
Germicidal UV-C+ Bulbs
Hydroxyl Radical Reactivity Chamber
Revitalizing Negative ION Chamber
Auto Function
Air Quality Sensors
Control Panel Hand Wave Sensor Hand Wave Sensor
Power 120V, 60HZ 120V, 60HZ
CARB Compliance

Calculator

To achieve the best indoor air quality, it is advised to reach 4-6 air changes per hour (ACH). Safe-T Air Purifiers make 3 to 10 ACH. To calculate the correct number of air purification units, the following factors are taken into consideration: air changes per hour (ACH), airflow rate - Cubic Feet per Minute (CFM) with a fan working at medium, high or turbo speed, and a space size - ceiling height, room length, and width.
Use Enclosed Space calculator for private offices or classrooms. Use Open Space calculator for large open plan areas.
  • SCA-X
  • SCA
Calculate Air Changes per Hour*
Enclosed Space
*Most offices / boardrooms require just 1 Air Purification unit.
Enter Office/Boardroom Dimensions
Length
feet
Width
feet
Height
feet
SpeedAir Changes Per Hour (ACH)**
Med
High
Turbo
** 3 ACH are required for an office environment.
Based on requirements, Safe-T Air Purifiers can make up to 10 ACH.
Calculate Required Number of SCA-X Units
Open Space
Enter Facility Dimensions
Total Square Feet
Ceiling Height
Desired Air Changes per Hour
CFM Required Speed # of SCA-X Units
Required for CFM
Med
High
Turbo
Air Volume Flow in Cubic Feet per Minute (CFM)
Low Speed : 153 | Medium Speed: 230 | High Speed: 312 | Turbo: 406
Safe-T Air Purifiers offer several fan speed options to purify your indoor air. The speed effects the force of air pushed through the filter to capture and destroy harmful particles. It also effects sound level produced by a running fan.
Sound level at low fan speed is 30dBA; high fan speed is 55dBA measured at 6 ft.
Calculate Air Changes per Hour*
Enclosed Space
*Most offices / boardrooms require just 1 Air Purification unit.
Enter Office/Boardroom Dimensions
Length
feet
Width
feet
Height
feet
SpeedAir Changes Per Hour (ACH)**
Med
High
Turbo
** 3 ACH are required for an office environment.
Based on requirements, Safe-T Air Purifiers can make up to 10 ACH.
Calculate Required Number of SCA Units
Open Space
Enter Facility Dimensions
Total Square Feet
Ceiling Height
Desired Air Changes per Hour
CFM Required Speed # of SCA Units
Required for CFM
Med
High
Turbo
Air Volume Flow in Cubic Feet per Minute (CFM)
Low Speed : 153 | Medium Speed: 230 | High Speed: 312 | Turbo: 406
SCA Air Purifiers offer several fan speed options to purify your indoor air. The speed effects the force of air pushed through the filter to capture and destroy harmful particles. It also effects sound level produced by a running fan.
Sound level at low fan speed is 30dBA; high fan speed is 55dBA measured at 6 ft.

Request Estimate

Canada’s Fastest-Growing Companies (2018, 2019, 2020)

Growth 500

Canada’s Fastest-Growing Companies
(2018, 2019, 2020)

Canada’s Top Growing Companies (2019, 2020)

Report on Business

Canada’s Top Growing Companies
(2019, 2020)

The Americas’ Fastest Growing Companies (2020)

Financial Times

The Americas’ Fastest Growing
Companies (2020)

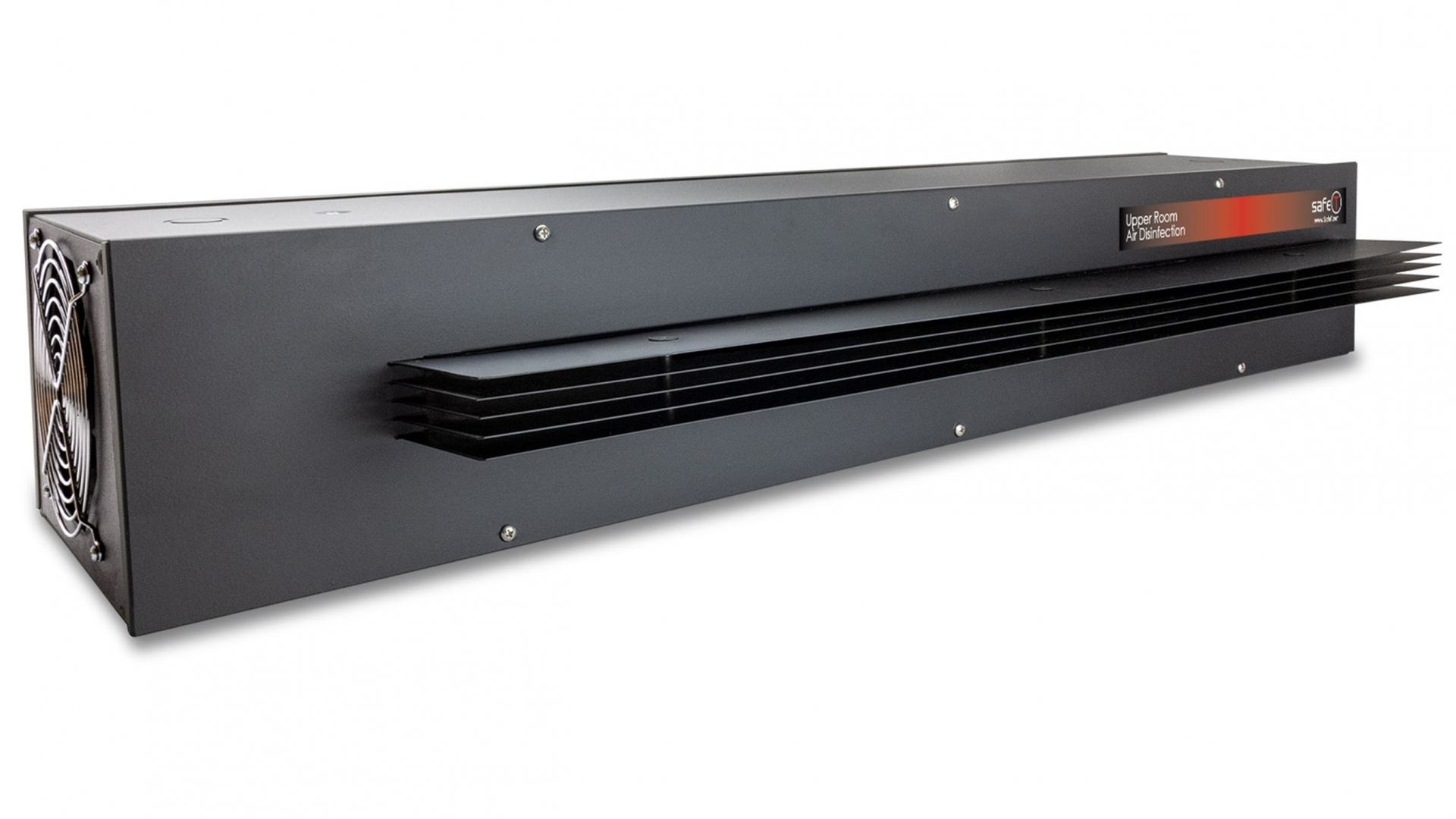

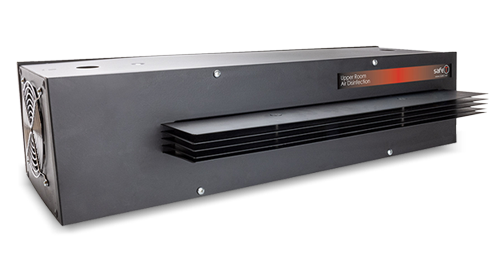

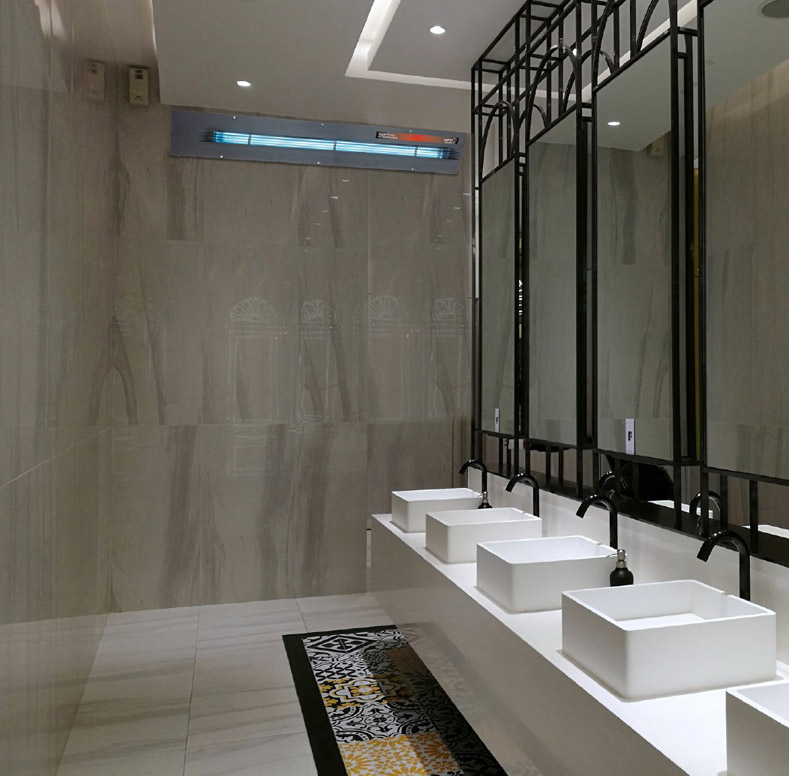

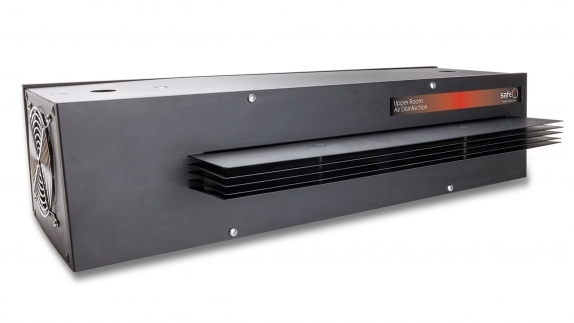

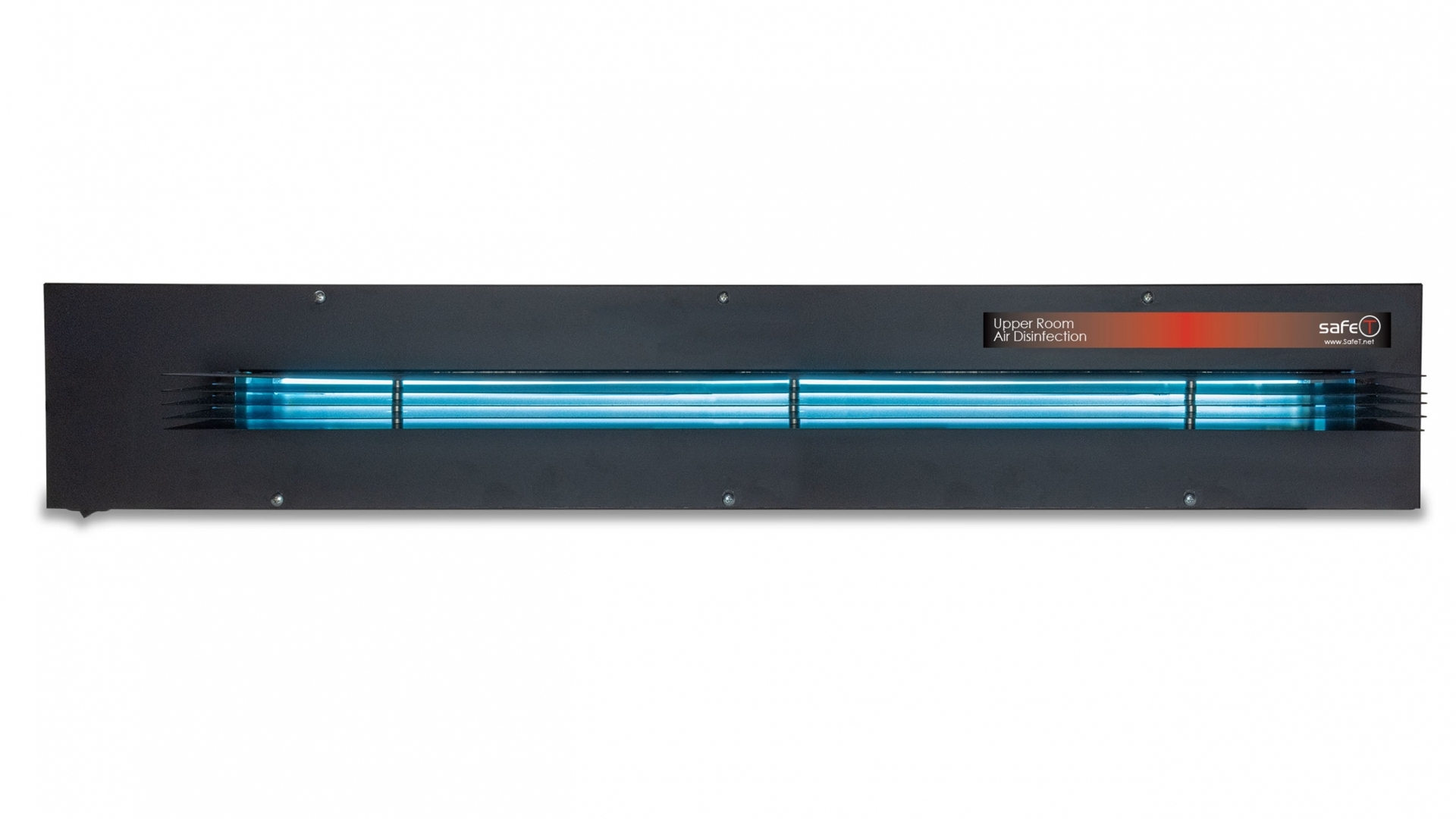

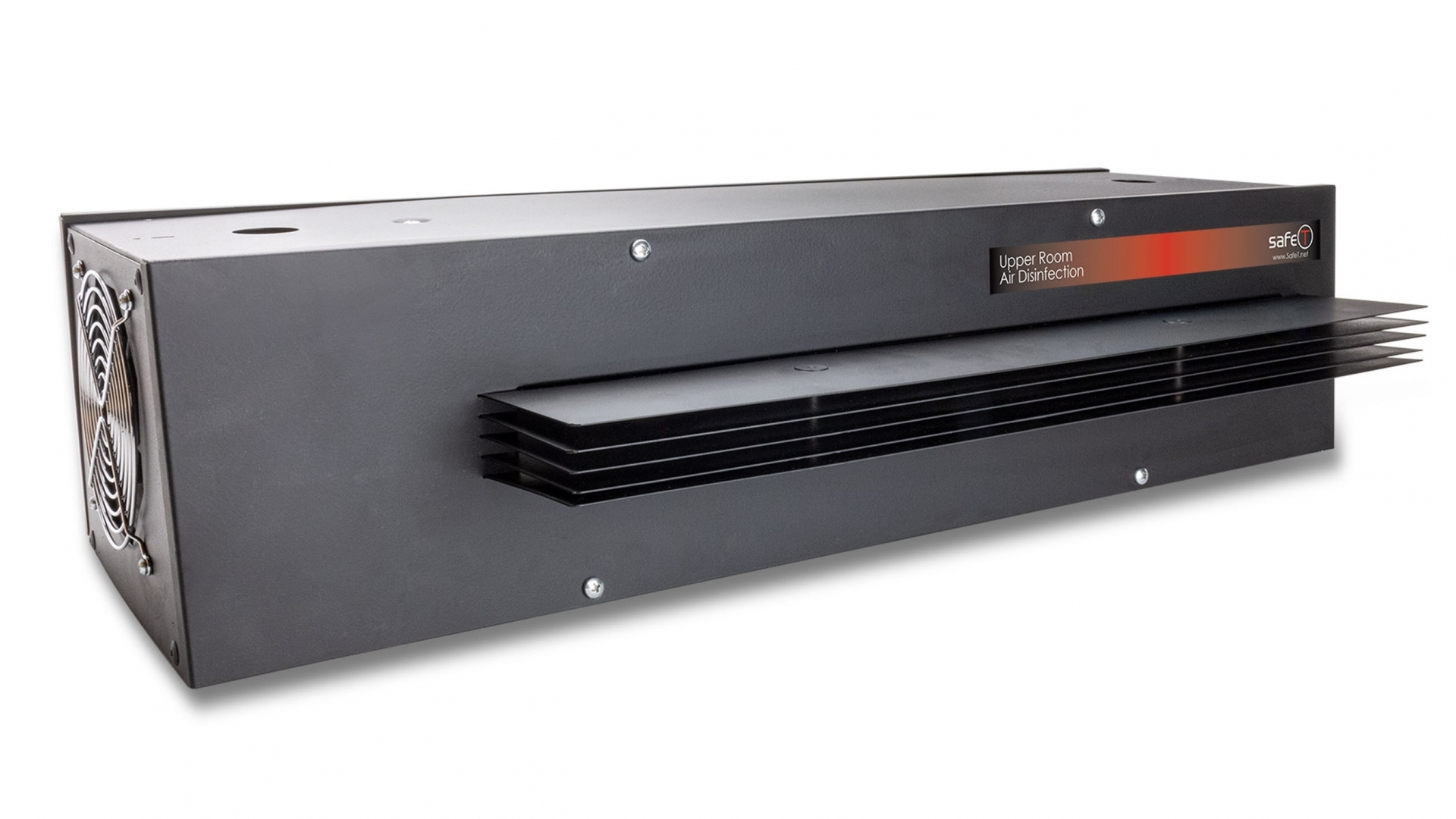

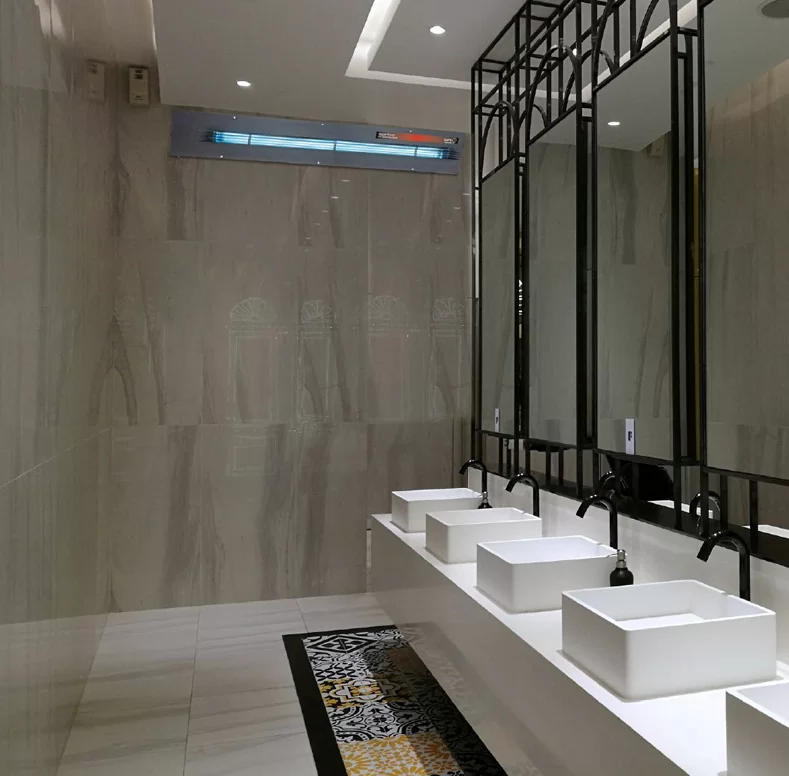

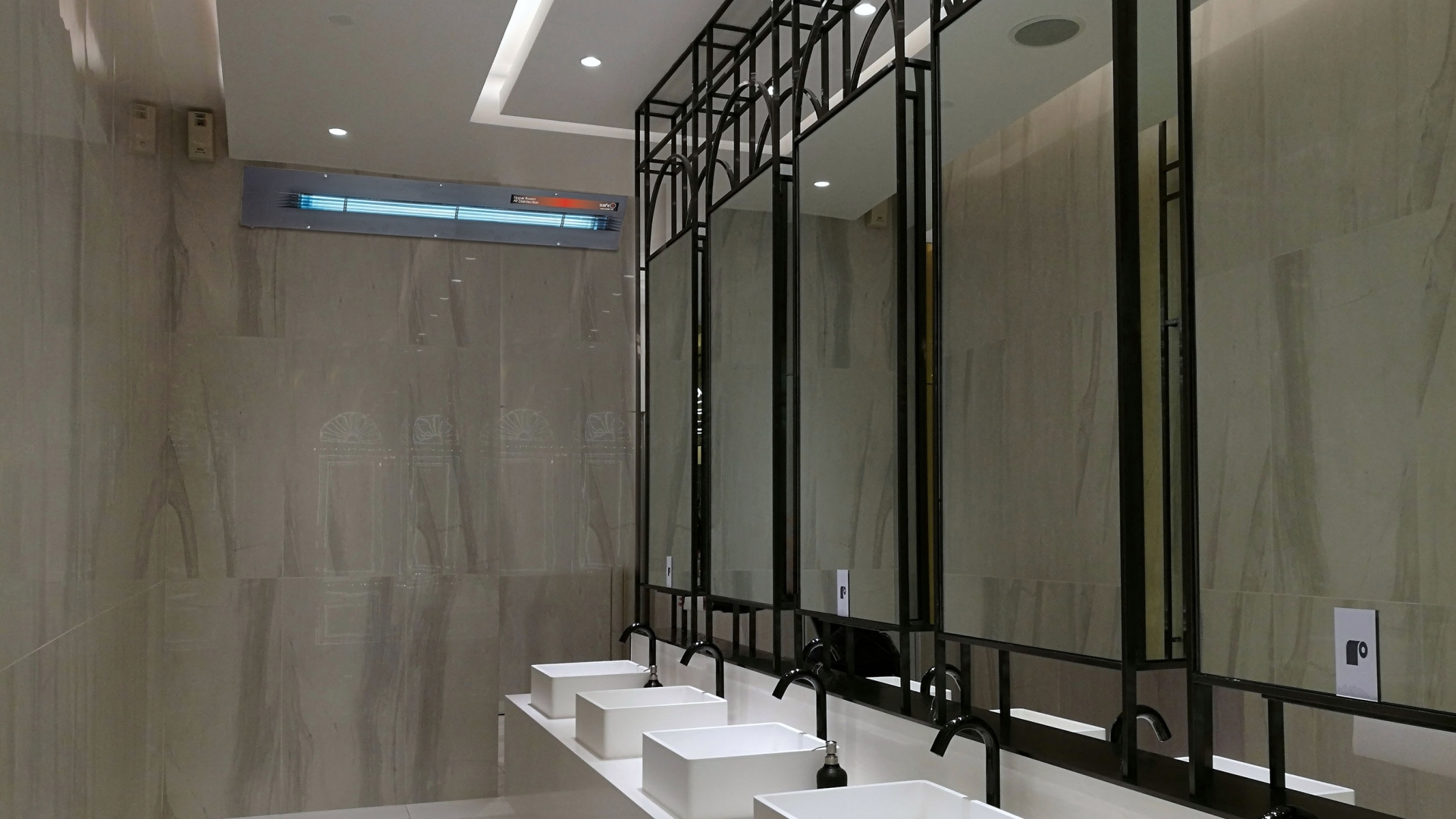

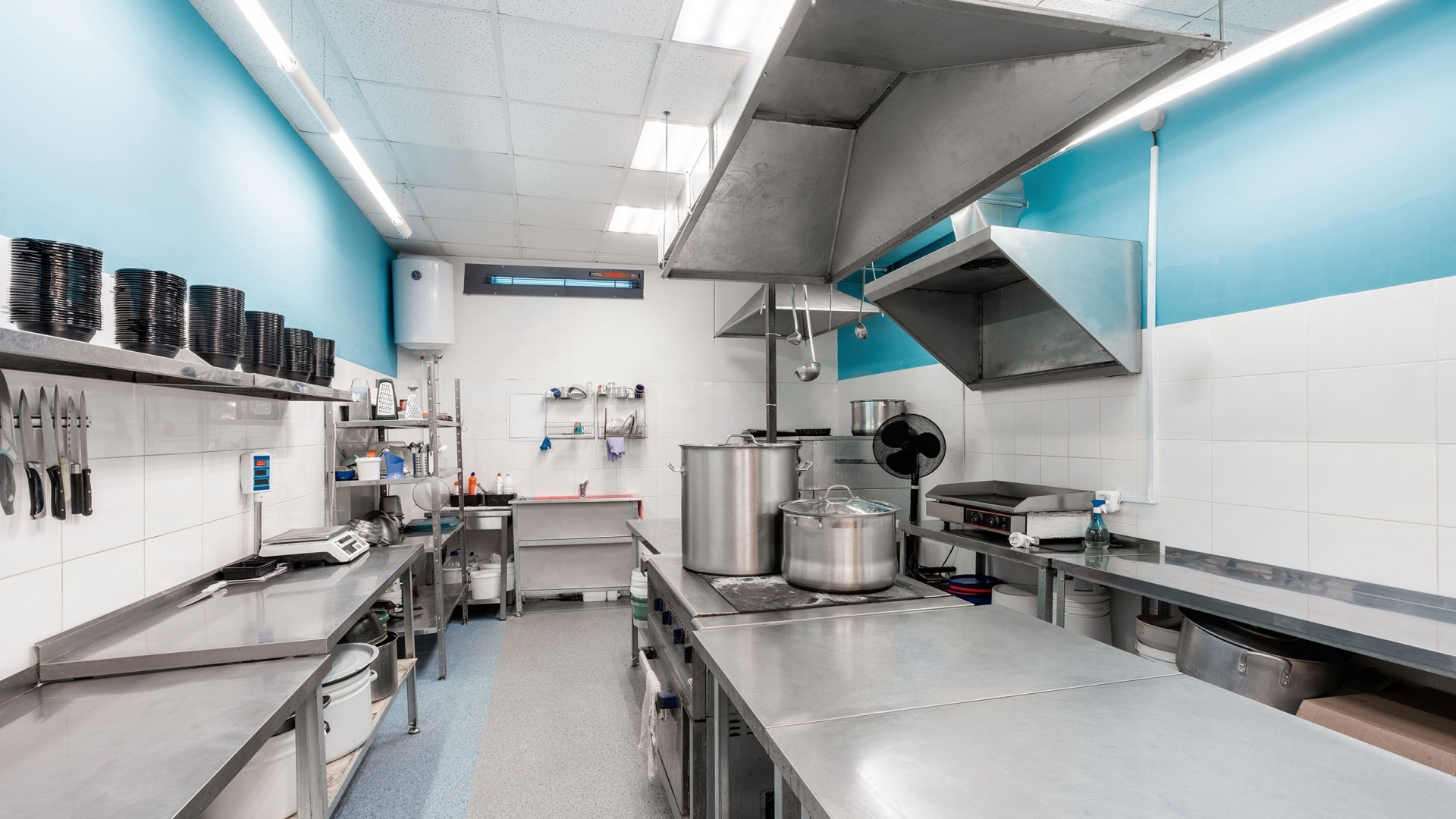

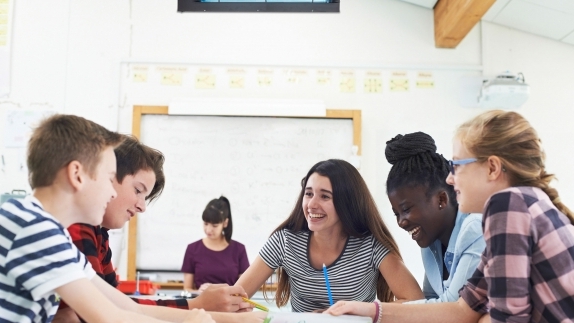

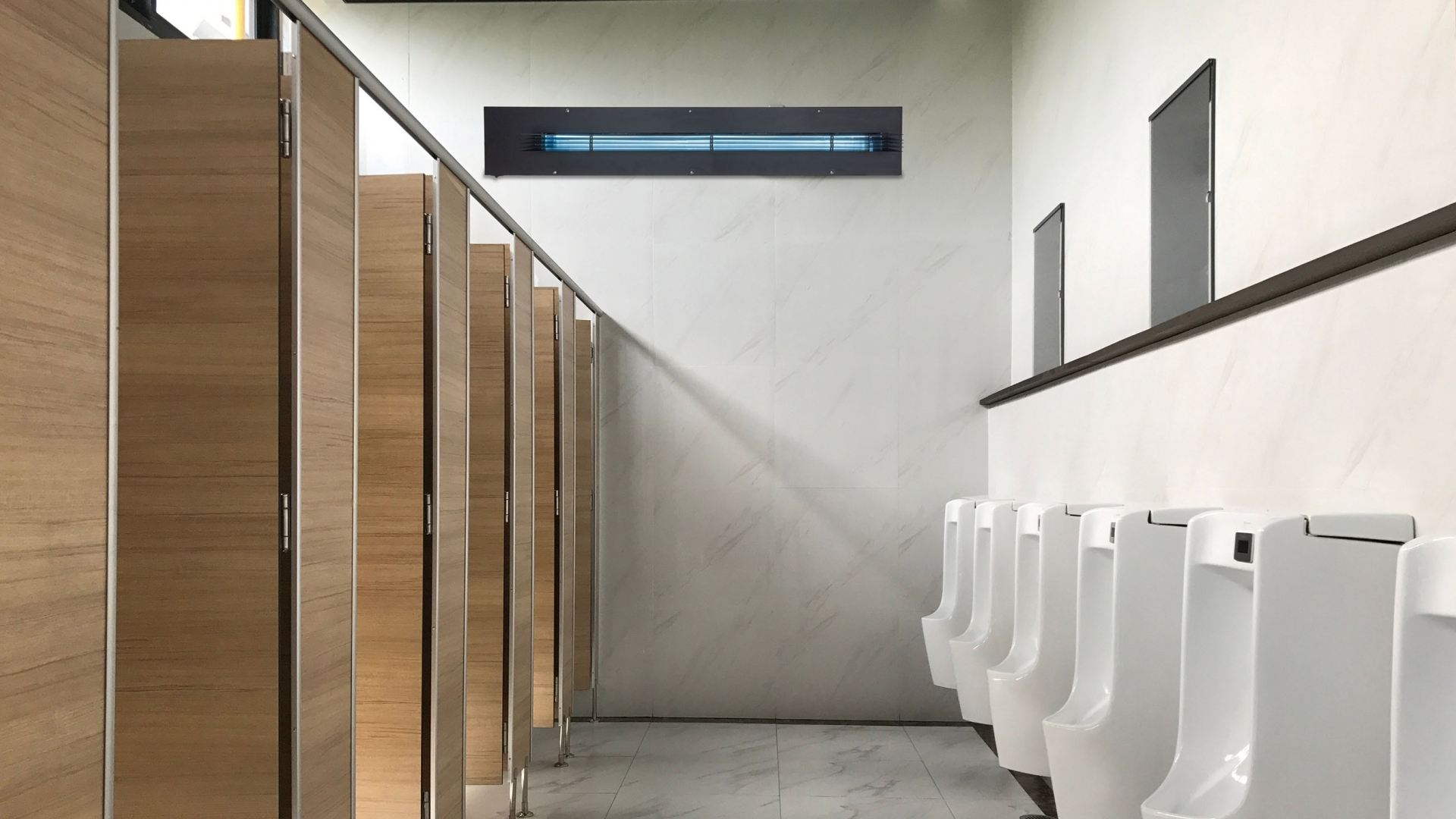

Upper Room GuardUV Germicidal Air Purifier

Safe-T GuardUV Germicidal Ultraviolet Air Purifier destroys airborne pathogens by generating a controlled region of germicidal UV light in the upper regions of a room. Pathogenes are drawn through the UV lamp chamber, exposing them to high-intensity germicidal UV light and then released into the upper air of the room where they are exposed to additional focused UV light. The UV light disinfection field is restricted to the upper area of the room (must be installed at least seven feet from the floor).

Features

  • Wall mount and bi-directional ceiling fan models
  • 22 and 33 inch UV lamp models
  • Quiet 67 cfm fan (30 db)
  • 9,000 hour UV lamp life - over 3-years running 8 hours per day
  • Energy efficient
  • Galvanized steel construction
  • Powerful air movement with 67 cfm fan
  • UV air disinfection is recognized and endorsed by ASHRAE, The American Society of Heating, Refrigerating and Air-Conditioning Engineers
  • 6' cord is included with an option to hardwire or plug-in

Wall or Ceiling Mount Models

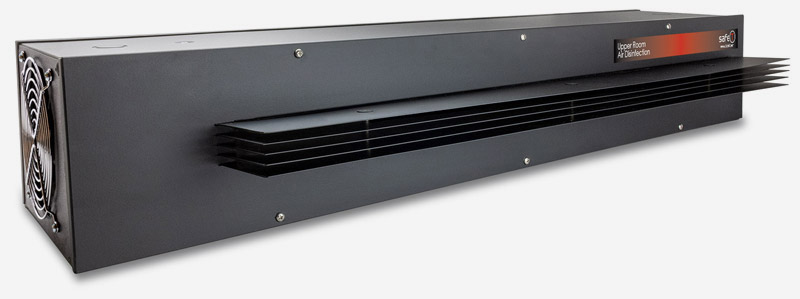

STG-33F Wall Mount
STG-33F-CR Celing Mount
37 5/8” wide

STG-33F Wall Mount

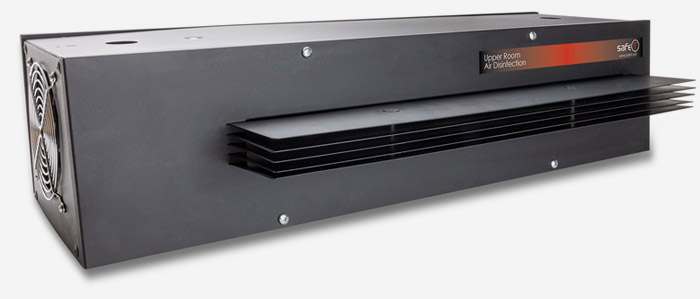

STG-22F Wall Mount
STG-22F-CR Ceiling Mount
26 1/8” wide

STG-22F Wall Mount

Front-rear bi-directional
Ceiling Mount
35 1/8” wide

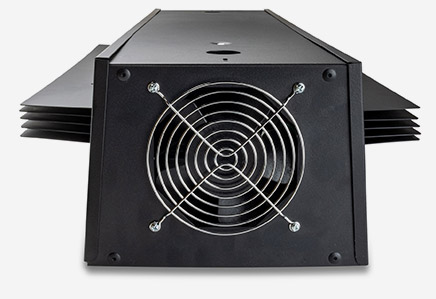

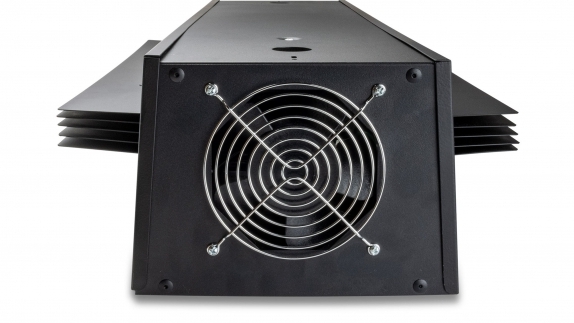

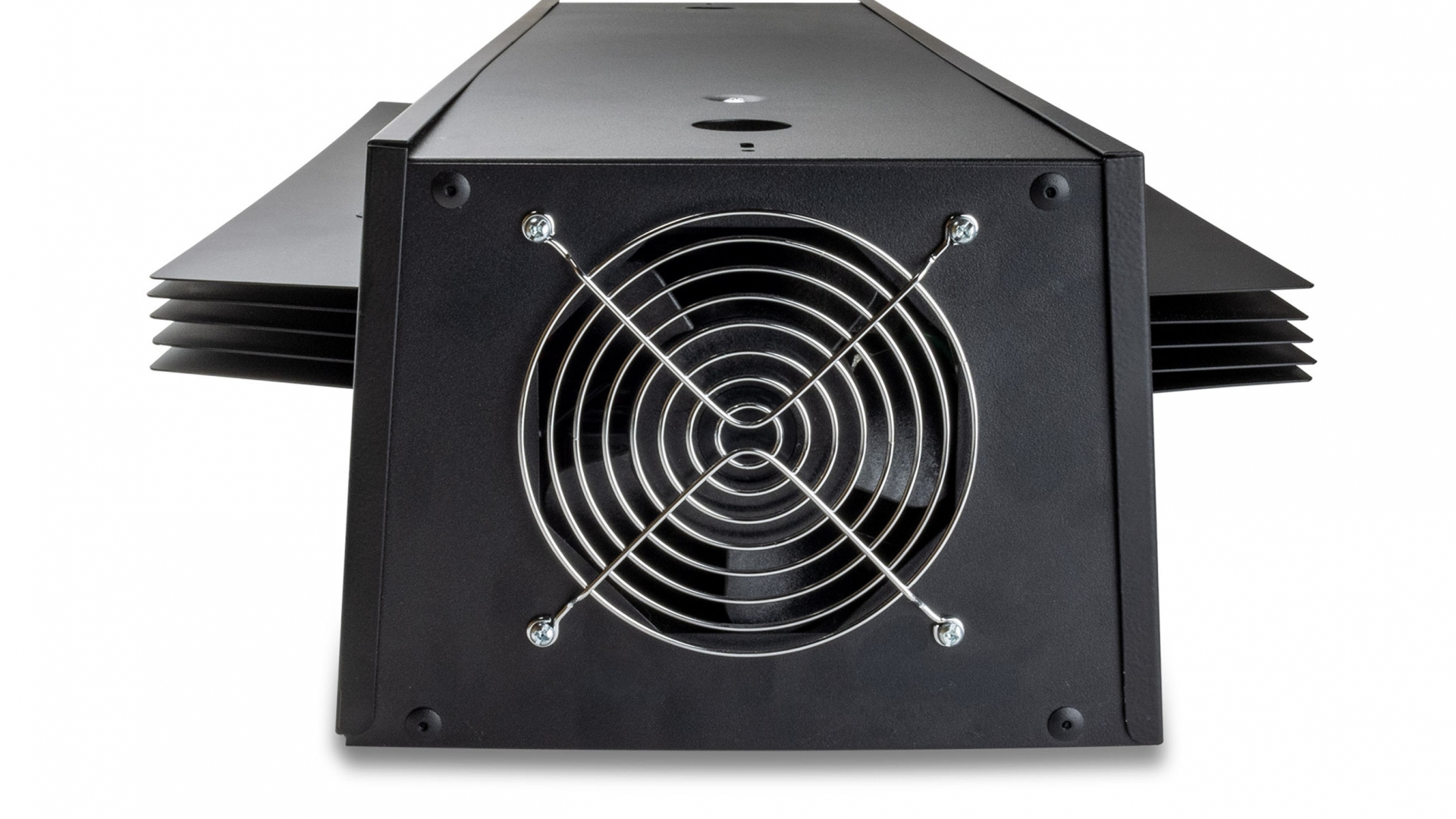

Side View
Important: the 7-foot minimum installation height requirement must be observed to assure the safety of the occupants.

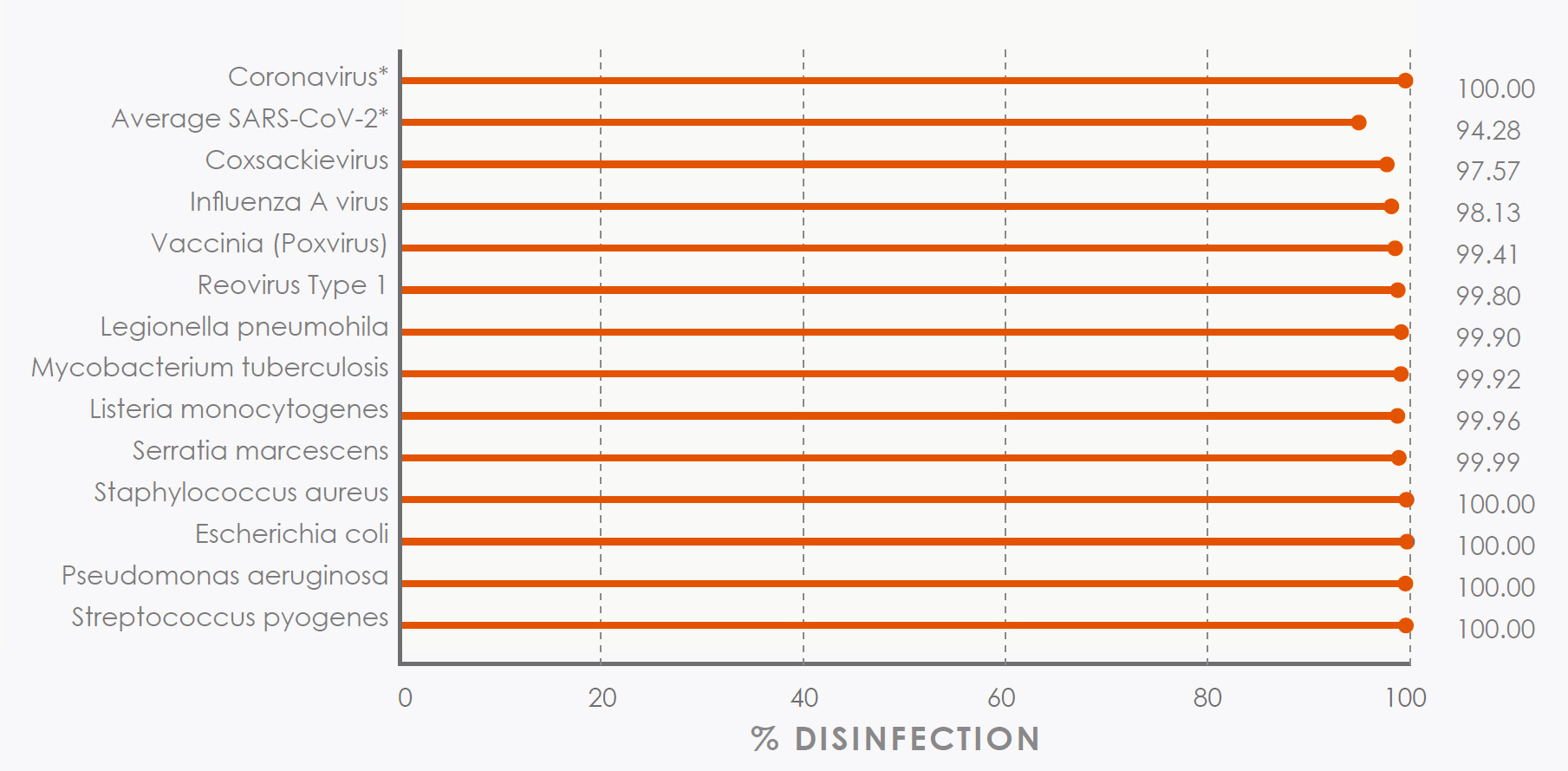

UV Effectiveness Against Various Microbes

effective coronovirus graph
Percentage disinfection calculations are based on the intensity at end of (9,000 hours) lamp life *There are many strains of coronavirus that have been identified, this chart lists just two

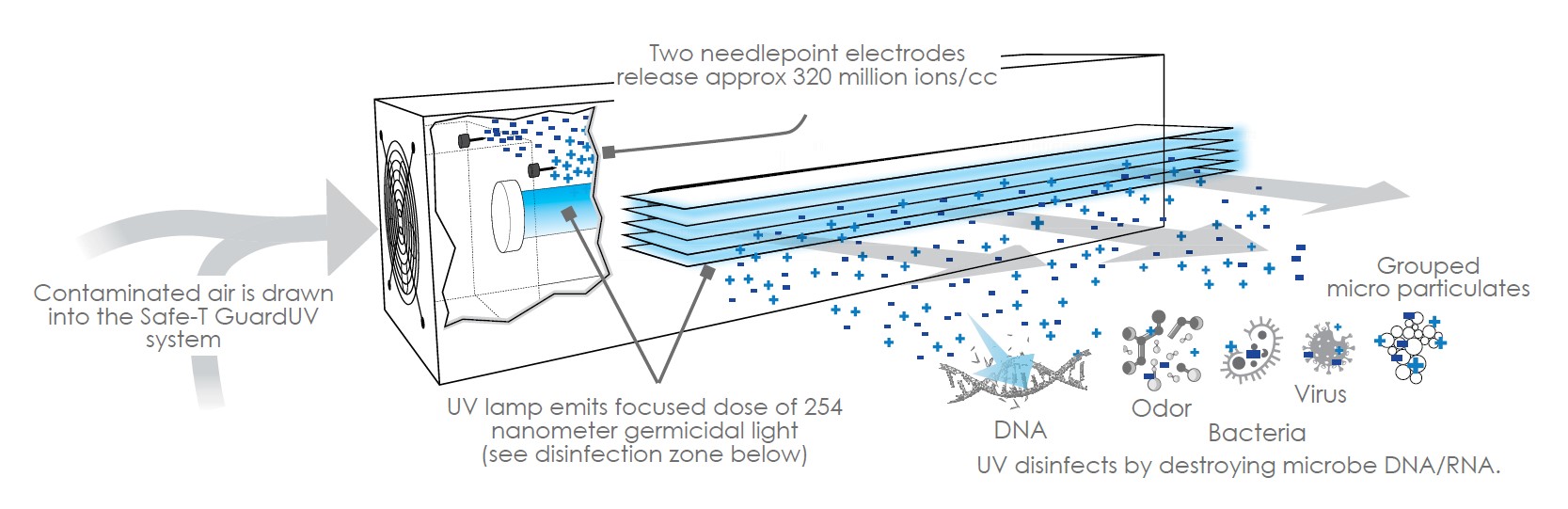

Air Flow

Air Flow and Ion Release System

Specifications

Model Name STG-22F STG-33F STG-22F-CR STG-33F-CR
Coverage, sq. ft. 225 (15’x15’) 350 (16’x22’) 450 (15’x30’) 700 (16’x44’)
Application/mount wall wall ceiling ceiling
Total UV-C output 10w 16w 10w 16w
UV lamp wavelength 254nm 254nm 254nm 254nm
UV lamp life 9,000 hrs 9,000 hrs 9,000 hrs 9,000 hrs
Power consumption 36.5VA 44.5VA 36.5VA 44.5VA
Width 26.1” 37.7” 26.1” 37.7”
Height 6.1” 6.1” 6.1” 6.1”
Depth 9.2” 9.2” 13.5” 13.5”
Power: All models auto-sensing 120-277 VAC, 50/60 hz.
Important: When installed, bottom of fixture must be at least 7 feet above the floor.

Memberships

EPA establishment number: 074725-VT-001

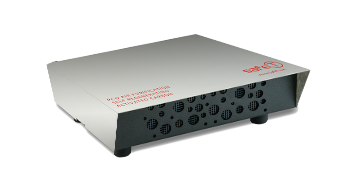

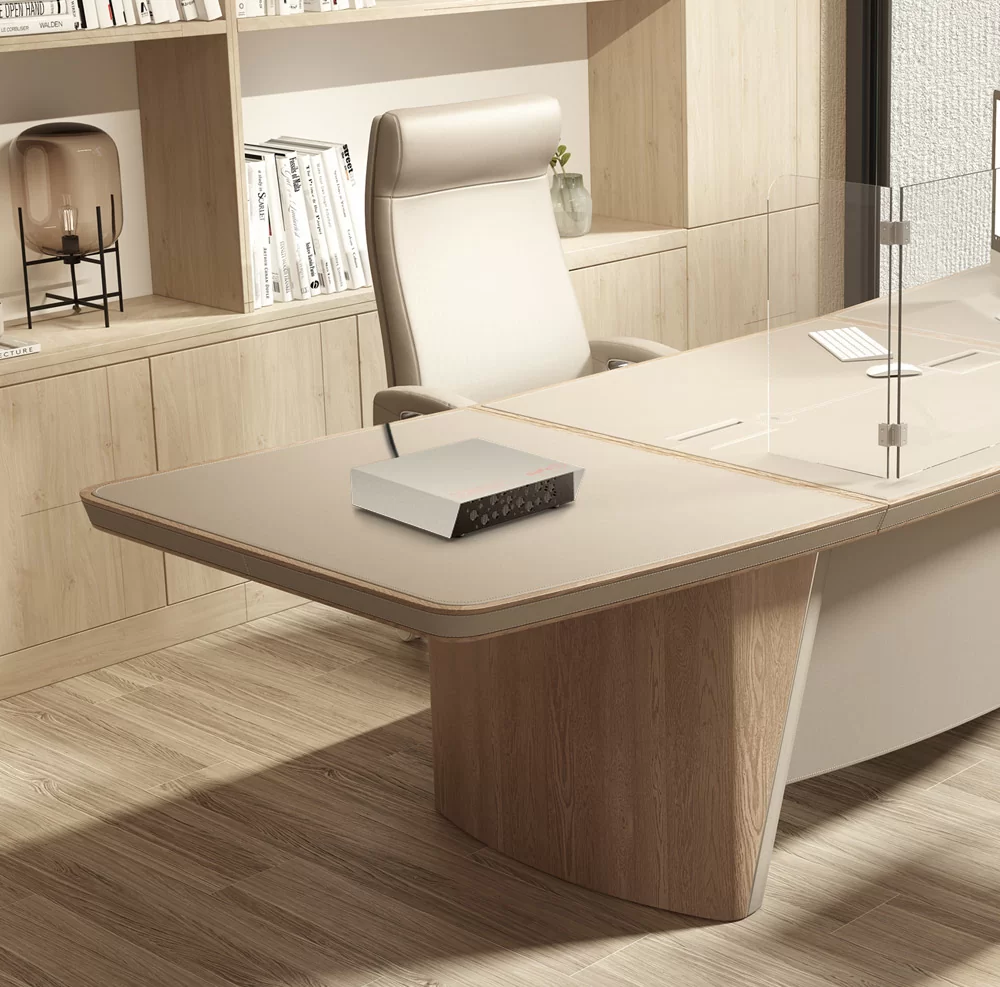

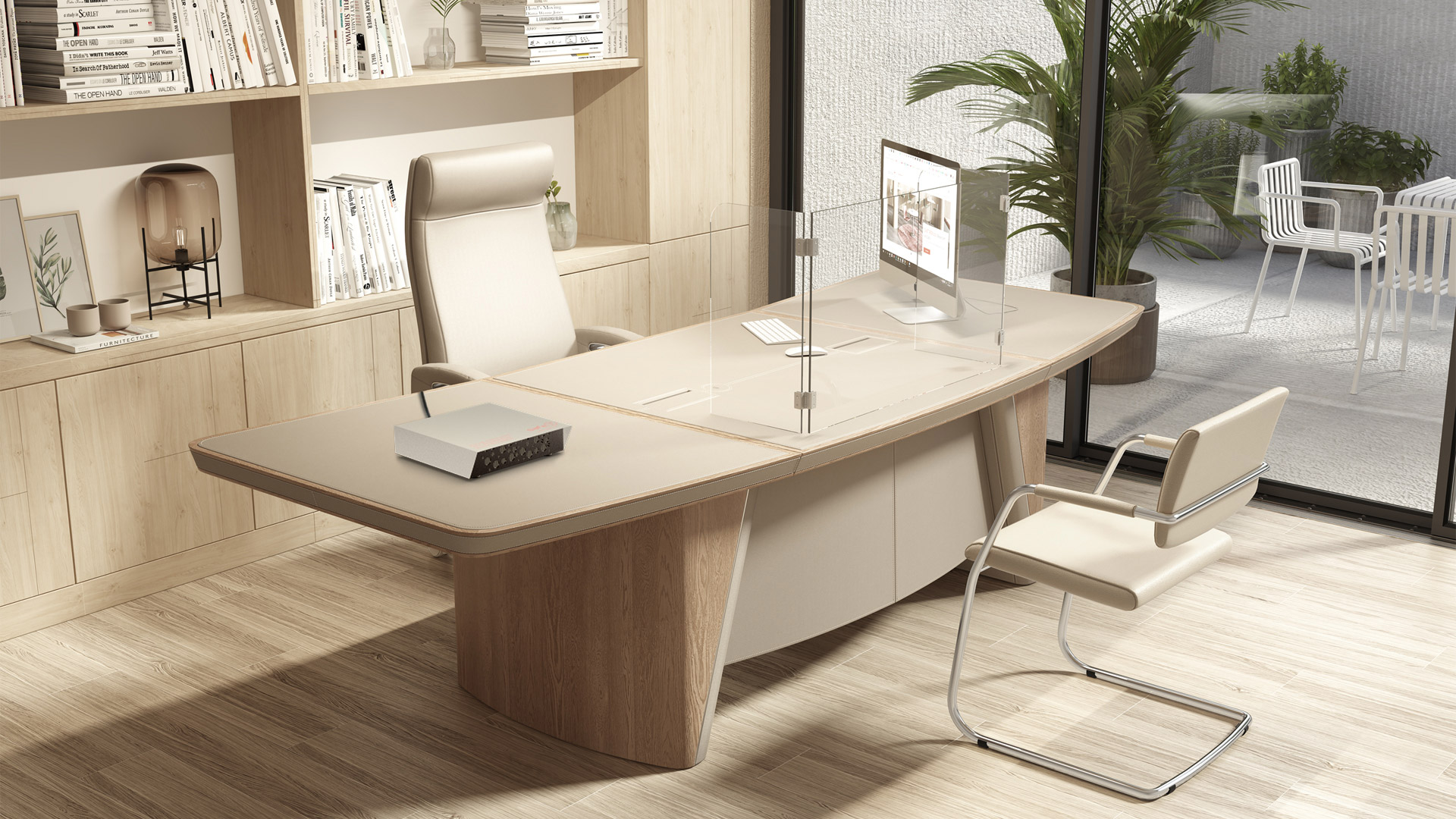

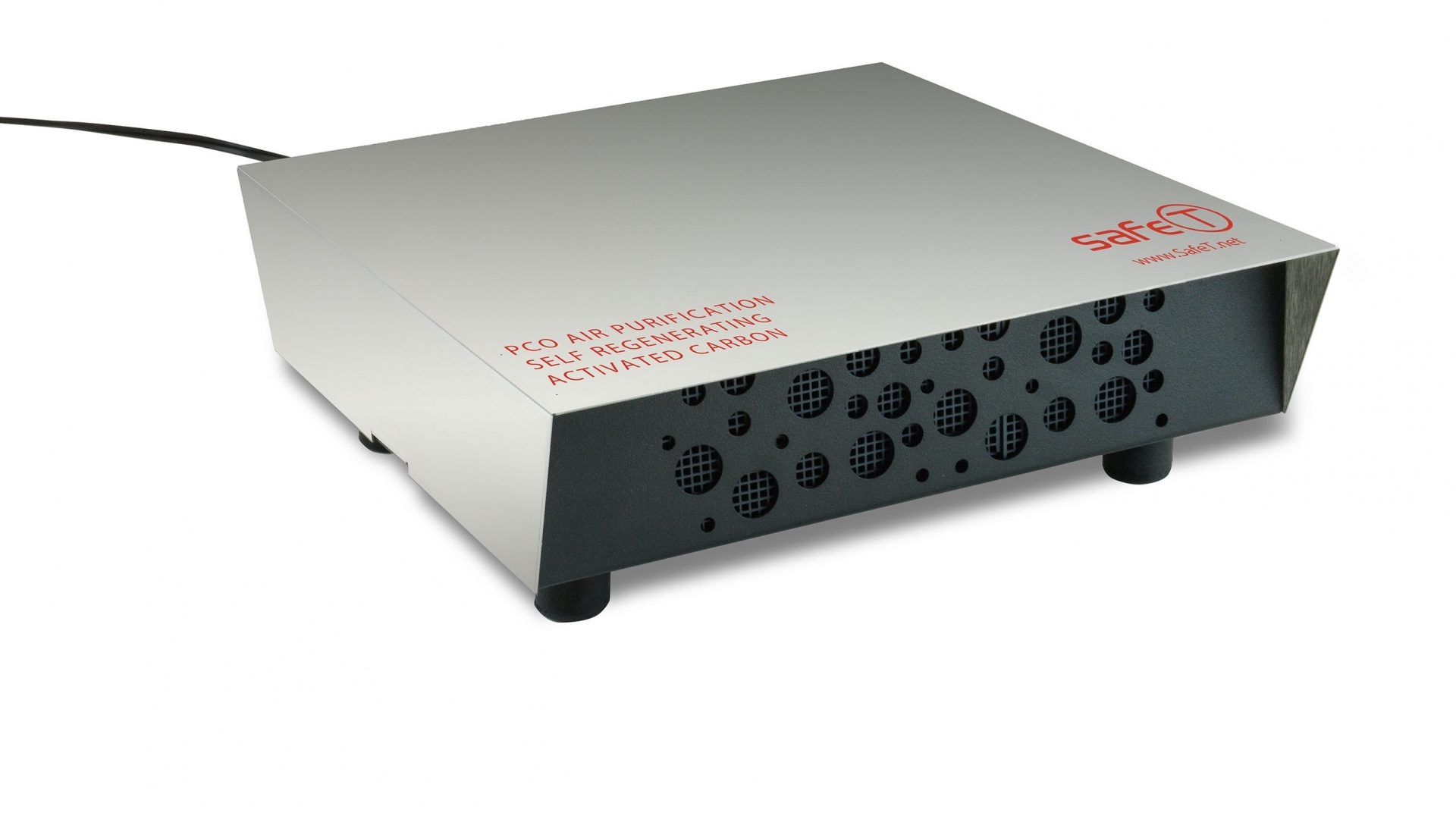

Portable UV Photomax Air Purifier

Cleaner, Healthier Indoor Air. Breaks down Odors, VOCs, and Toxins, Kills Bacteria and Viruses Reduces Allergens.


Features

  • Commercial-grade Stainless Steel outer cabinet with steel chassis
  • Self cleaning, the carbon blocks are continually restored by the PCO process and need no maintenance
  • No Ozone produced
  • UL 2998 compliant
  • Compact: 9”x 9” - 3” high
  • Quiet fan
  • Washable pre-filter
  • Low power consumption
  • Covers areas up to 800 sq ft
  • Plugs into standard 110VAC outlet; hardwire available

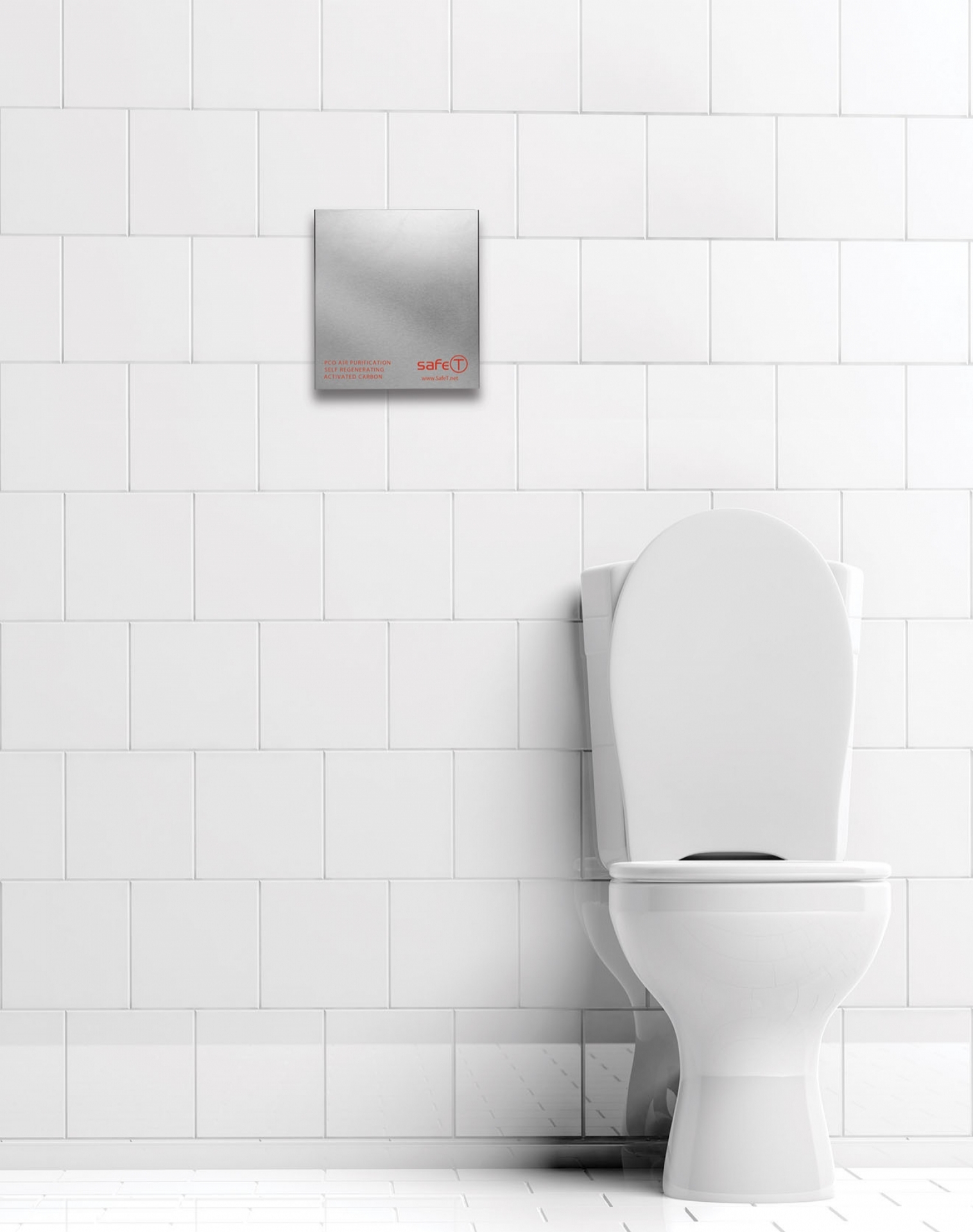

  • Wall mount option included

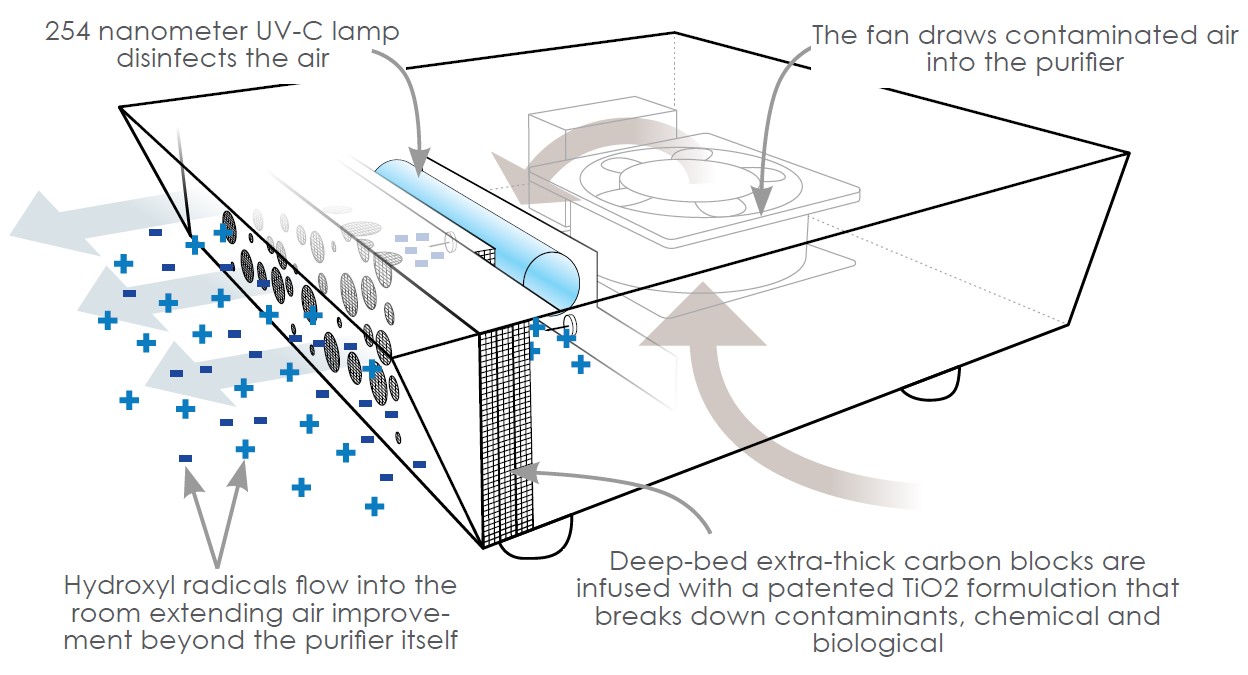

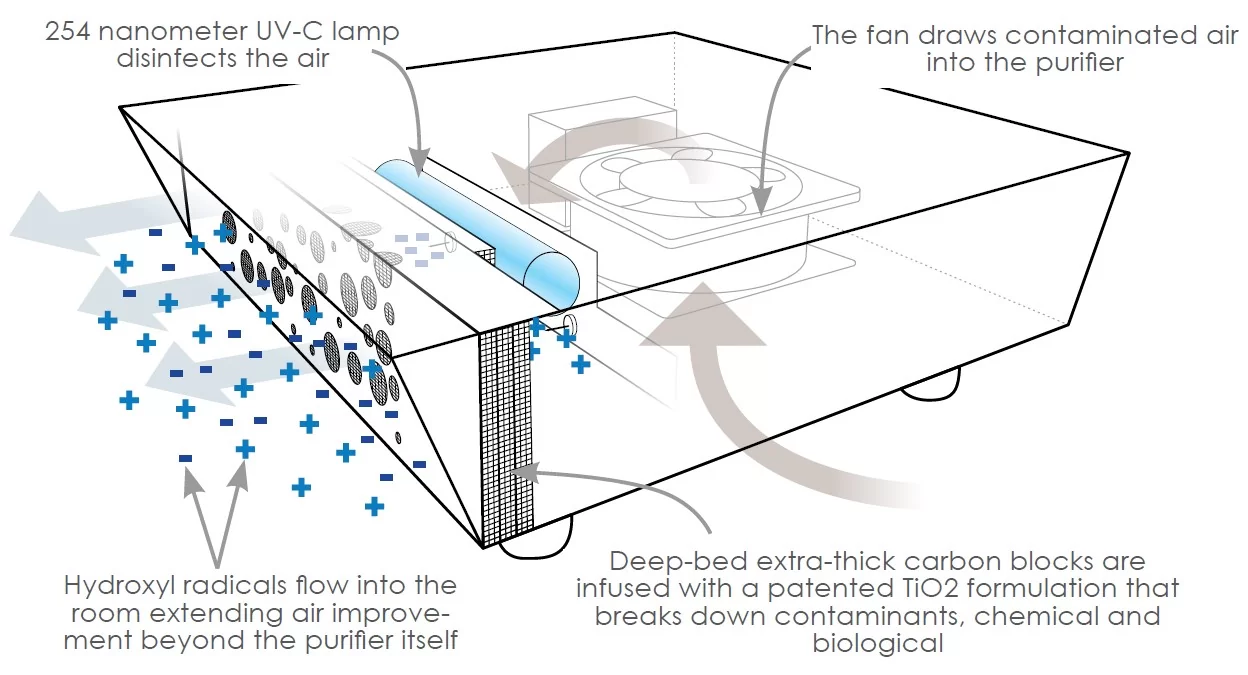

Air Flow

Converts complex air contamination back to normal air components
Air Flow and Ion Release System

Specifications

Part Number STG-UVP
Coverage up to 800 sq. ft.
Power Connection Standard 110VAC outlet
Weight 4 lbs.
Dimensions (W x D x H) 9”x9”x3”
