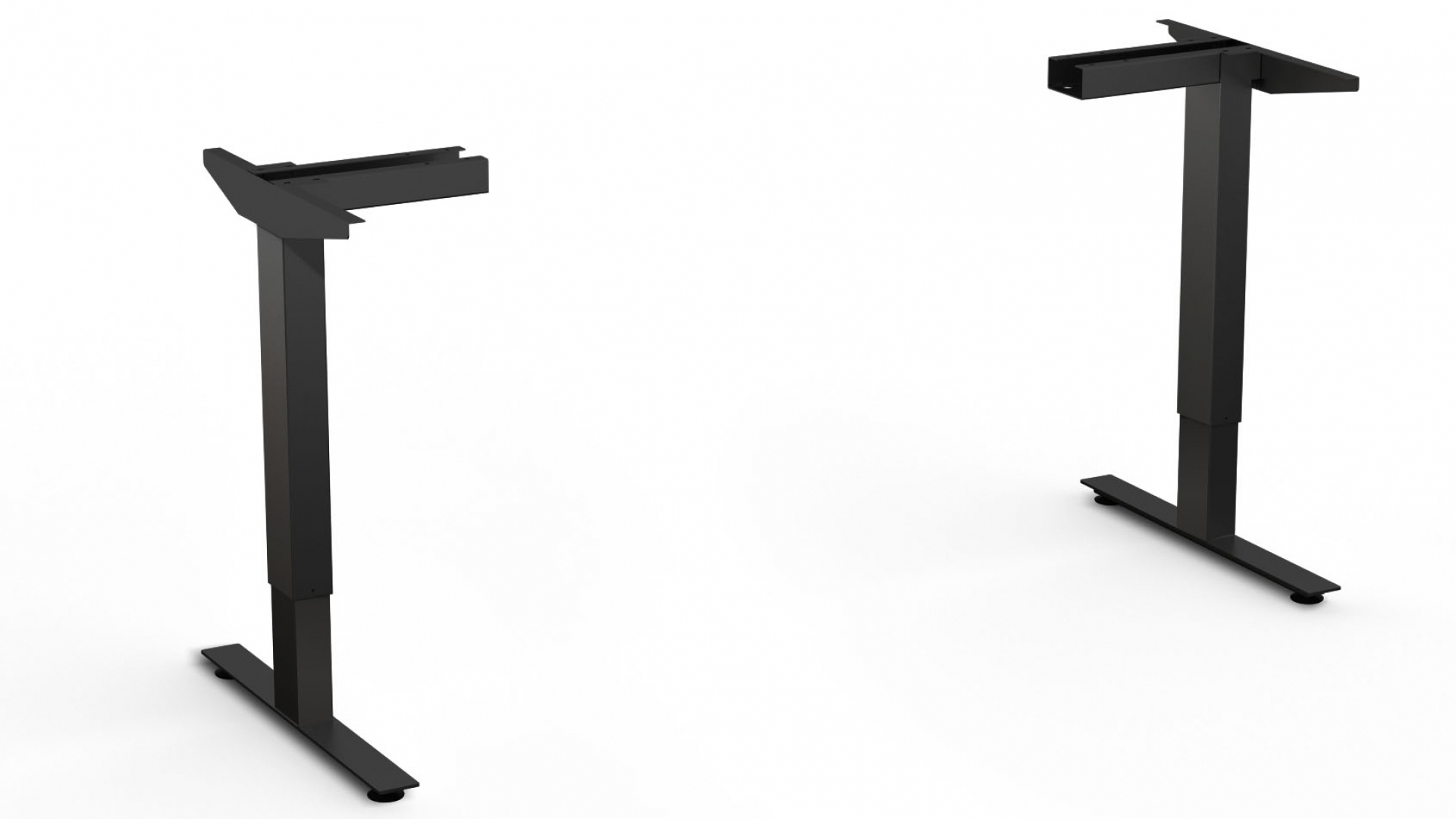

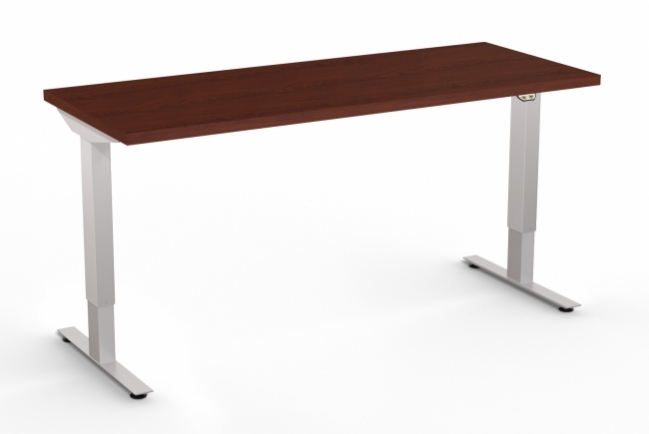

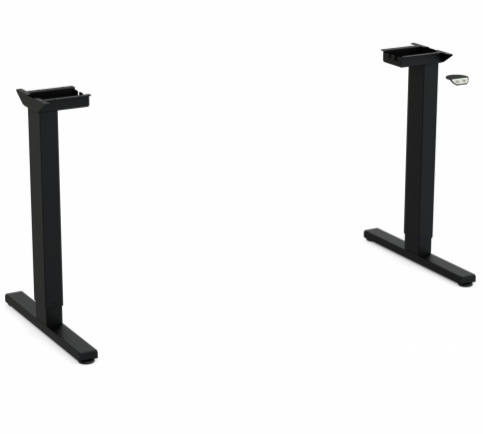

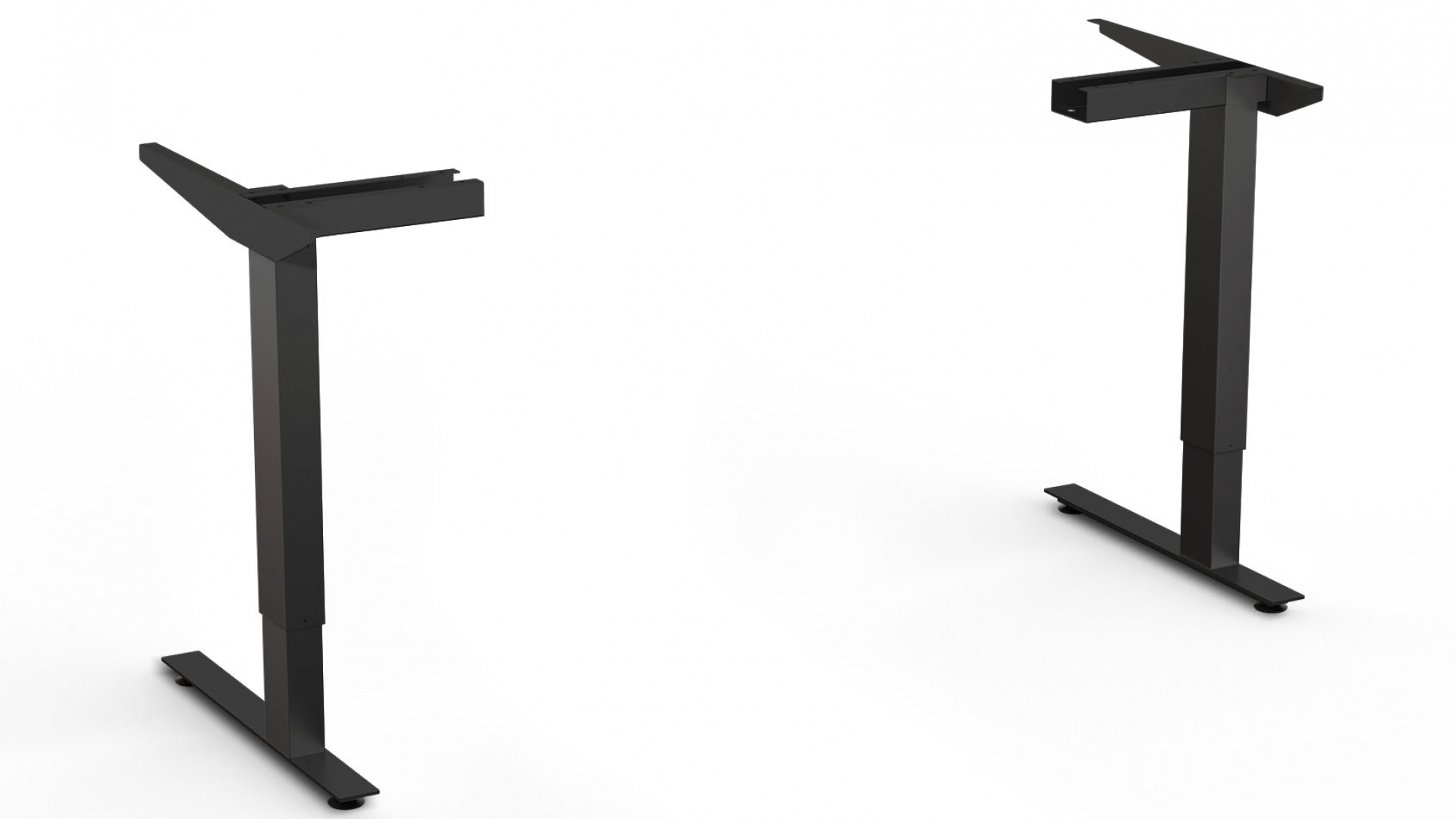

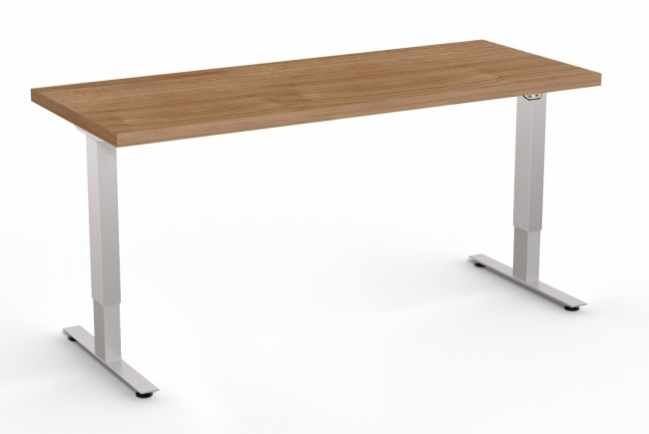

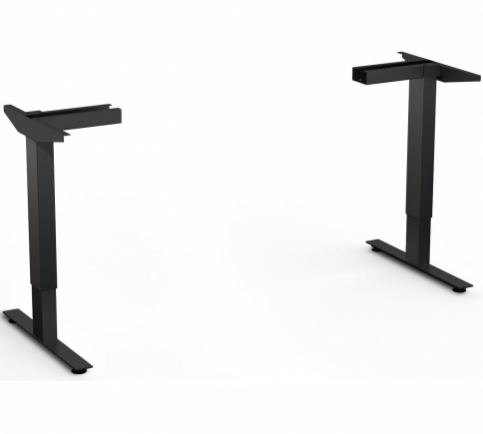

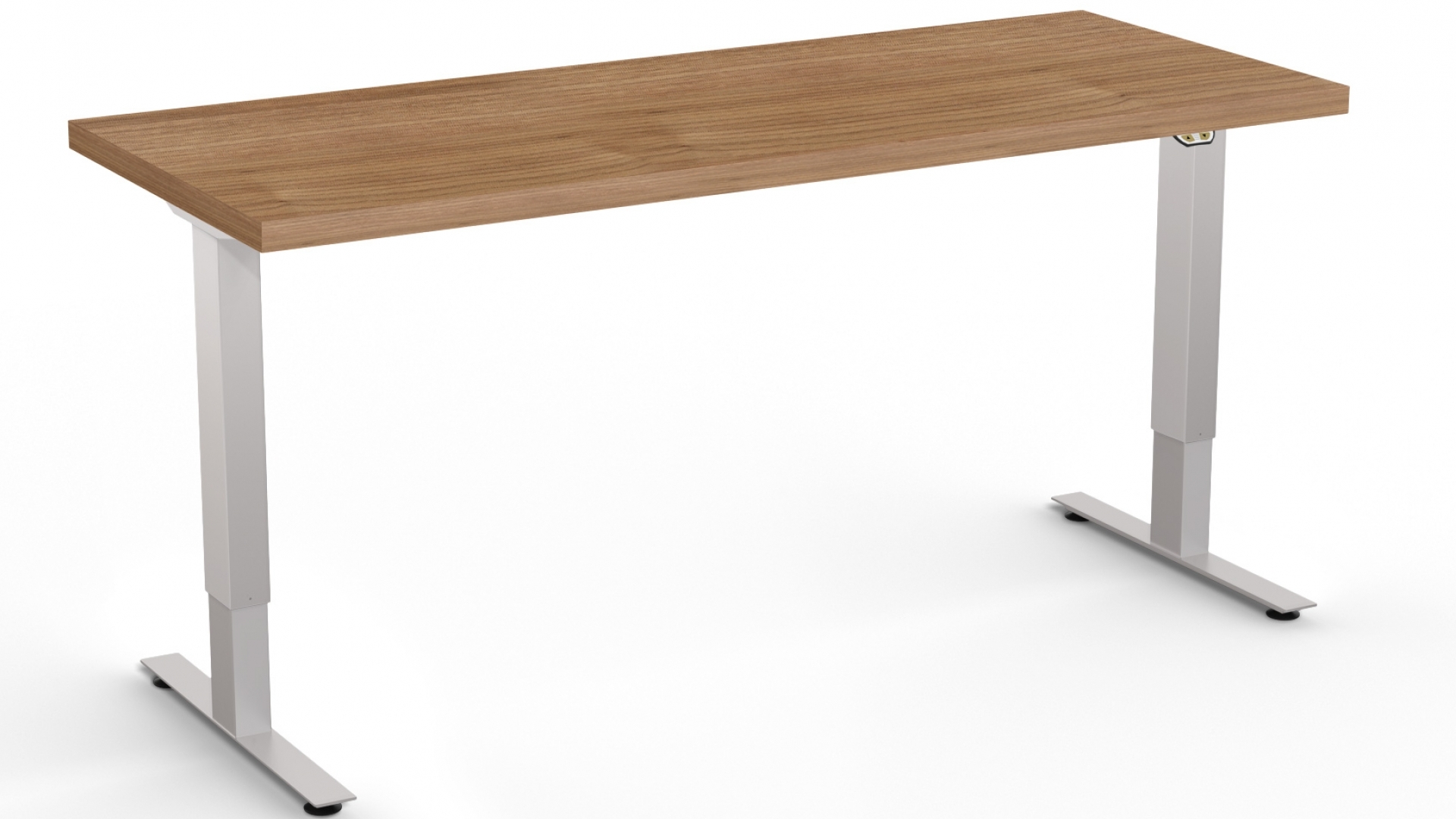

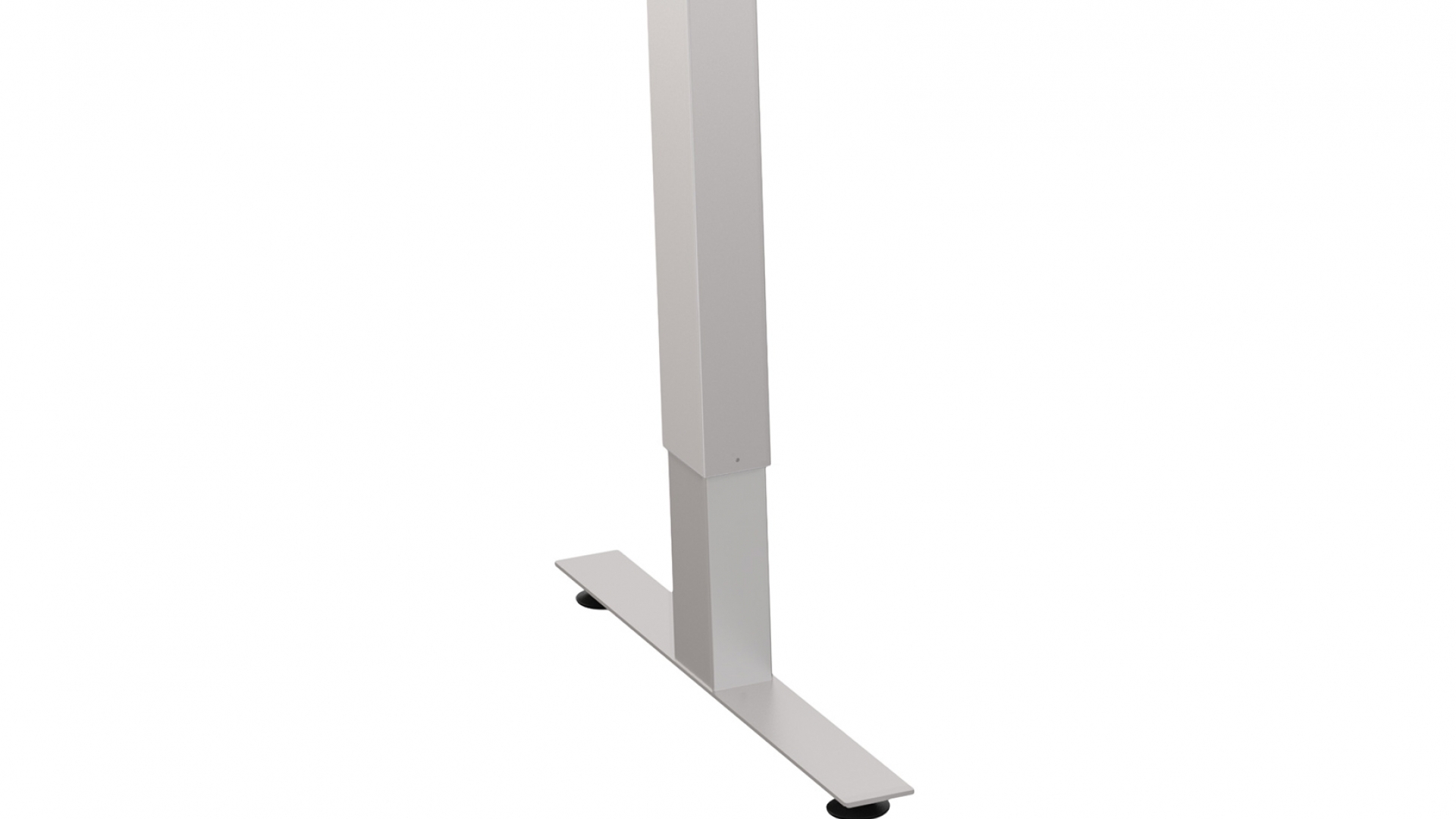

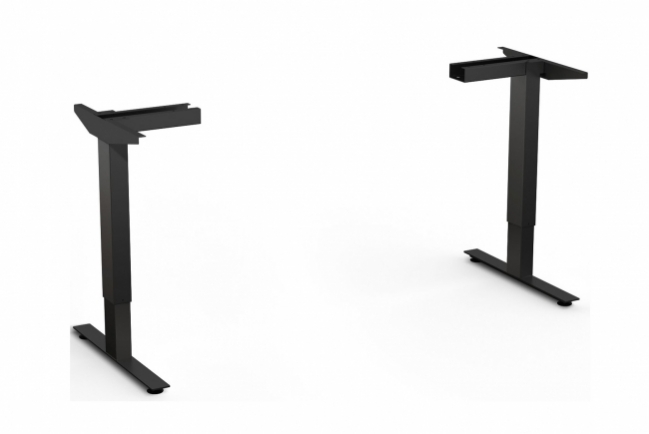

Patriot Base Set • Height Adjustable

Patriot Base Set

Height Adjustable

Price From:

$1647 List

  • Made in the USA
  • 2-stage height range is 27" – 46” with a 19" stroke or 3-stage height range is 24" - 48" with a 23.5" stroke
  • Base Spread: 22" and 28"
  • Base Style: T-leg or C-leg
  • Finish: Metallic Silver (QuickShip color), Black and 28 other additional colors
  • SET INCLUDES 2 bases, control box, cables, top frame, feet and standard up/down switch
  • Packaging: bases are packaged in 1 box, 3 column bases are packed in 3 boxes

Electrical Information

  • Up/Down switch standard
  • Optional 4 height programmable switch
  • Dual motor
  • Motor noise: <43 db
  • Max lifting speed: 1 3/8"/sec
  • Power consumption: .3W
  • Overload protection: >200 lbs
  • Functions: Soft-Start-Stop
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Height Range 2-stage height range is 27" – 46” with a 19" stroke or 3-stage height range is 24" - 48" with a 23.5" stroke
Base Type T-leg and C-leg
Column Size
3 1/2" x 2 3/8"
Base Spread 22", 28"
Leveling Glides 1 3/8" diameter plastic in steel threaded inserts
Finish Metallic Silver (QuickShip color), Black and 28 other additional colors
Packaging Bases are packaged in 1 box, 3 column bases are packed in 3 boxes

Size Chart

Base Spread# of ColumnsColumn SizeRecommended Top Size
22"2 Columns3 1/2" x 2 3/8"24"D x 48"-84"W
28"2 Columns3 1/2" x 2 3/8"30"D x 48"-84"W
22"3 Columns3 1/2" x 2 3/8"24"D x 48"-84"W
28"3 Columns3 1/2" x 2 3/8"30"D x 48"-84"W

.

Resources & Downloads

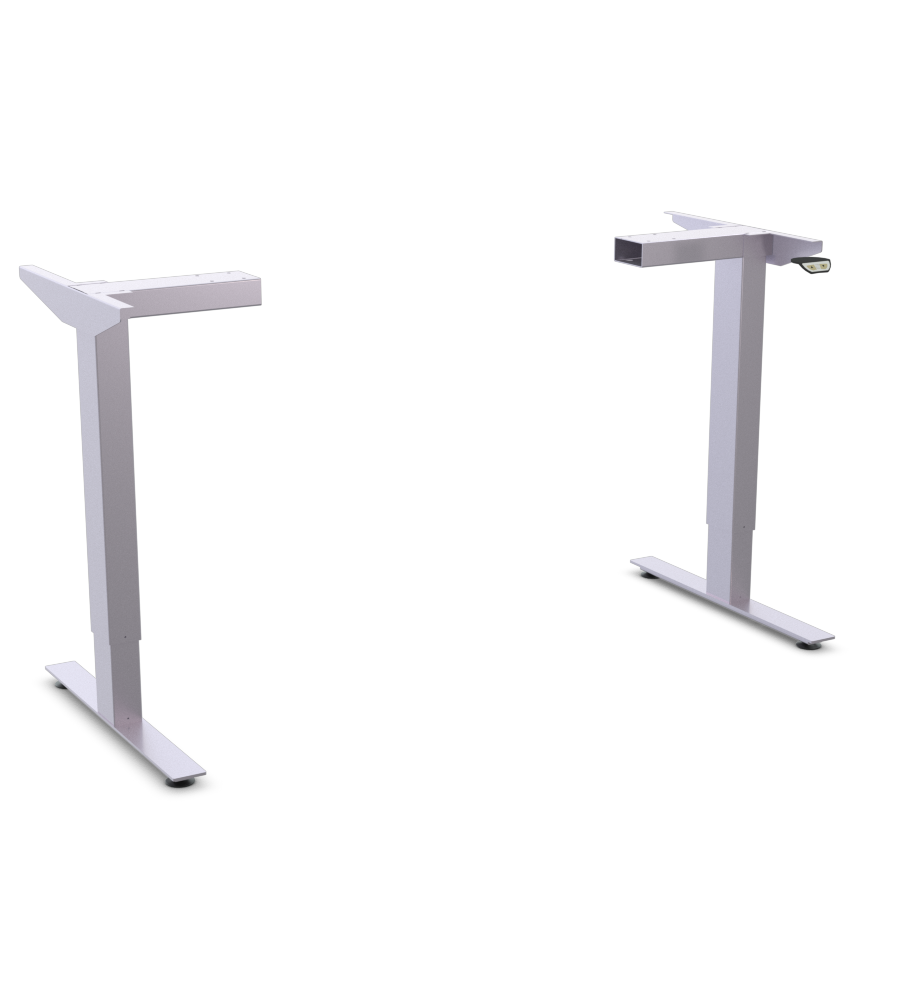

Patriot Base Set 360o View
