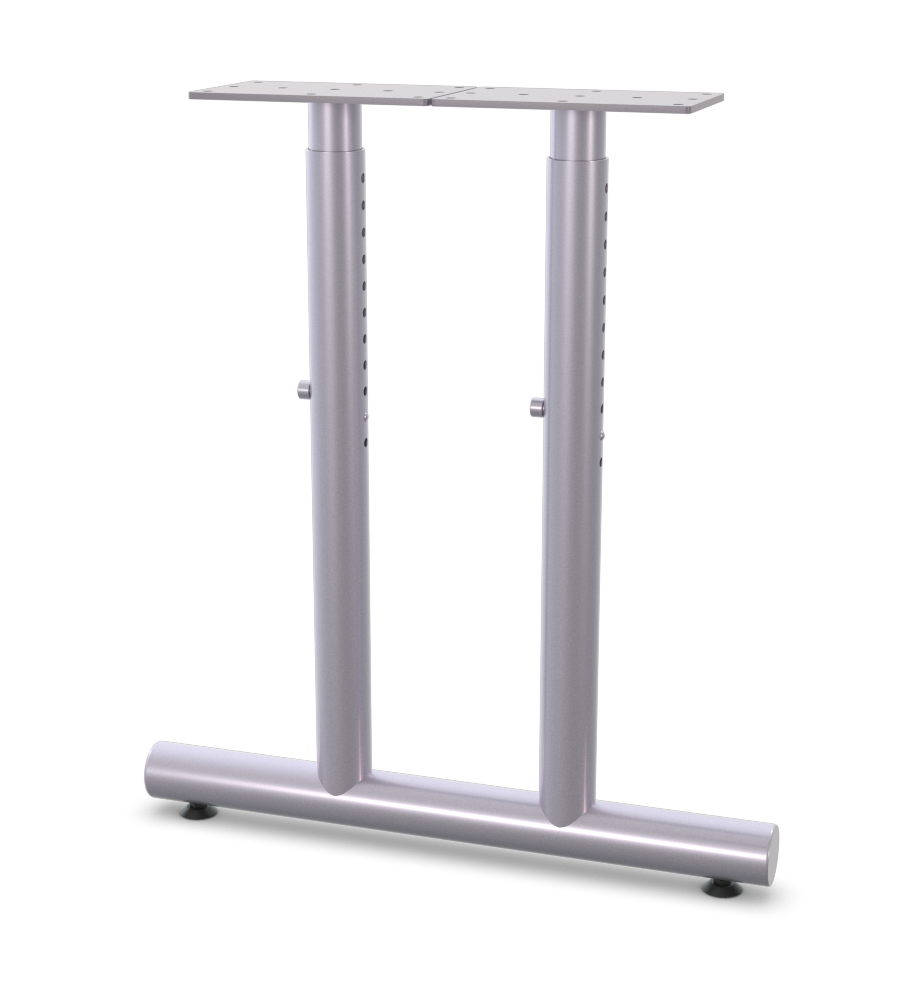

Product Preview
Click & Drag Image (Left or Right)

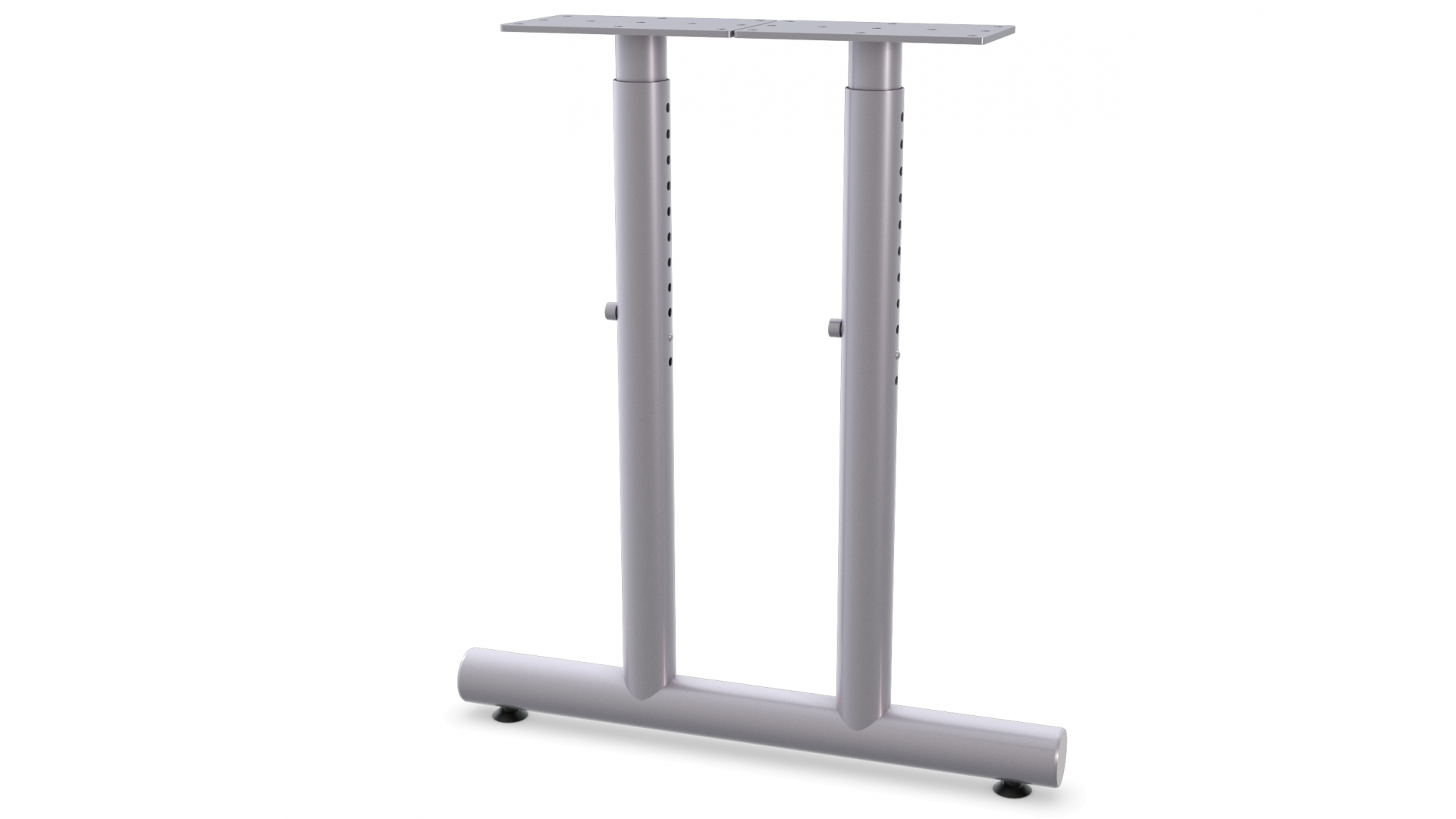

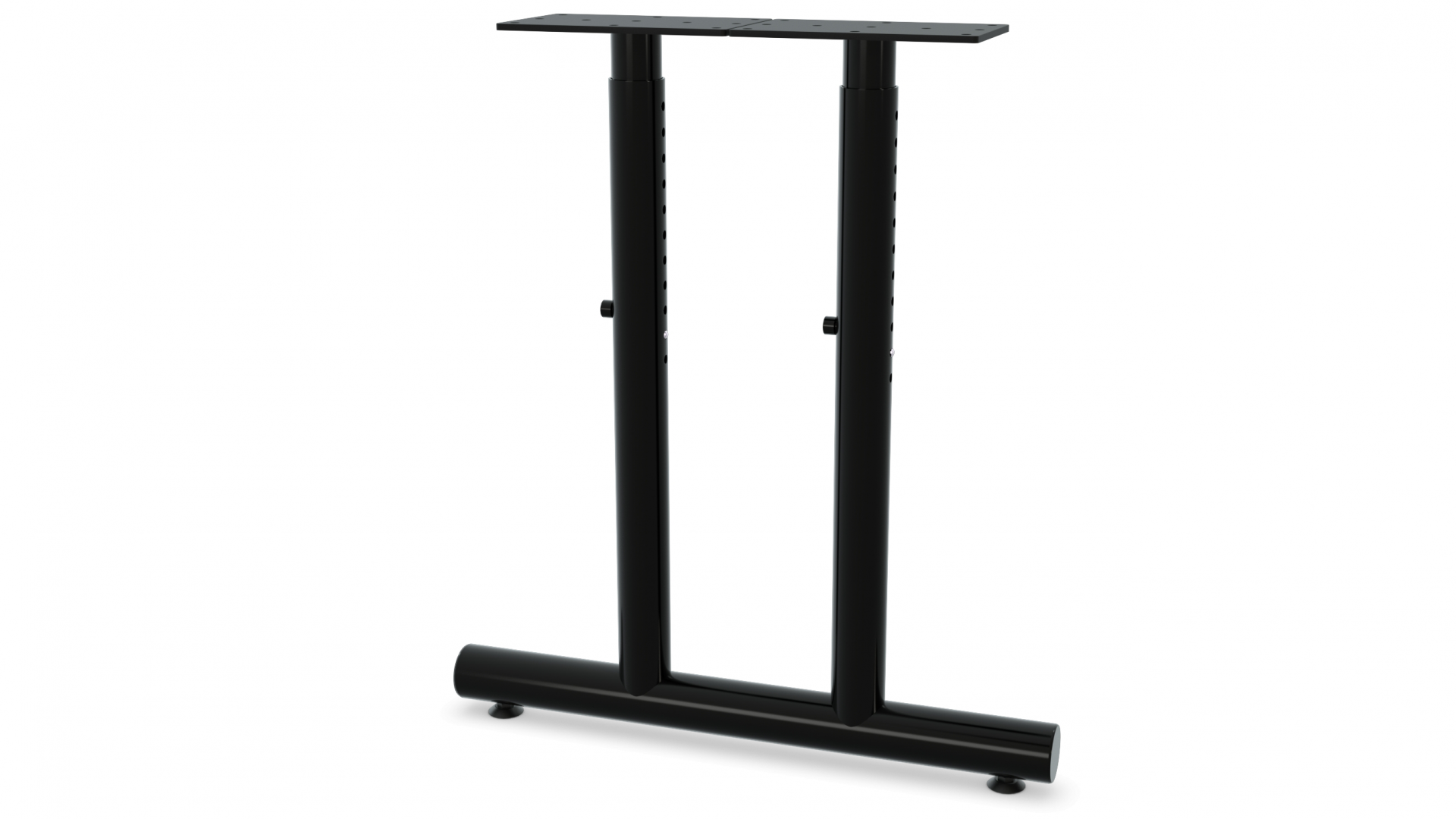

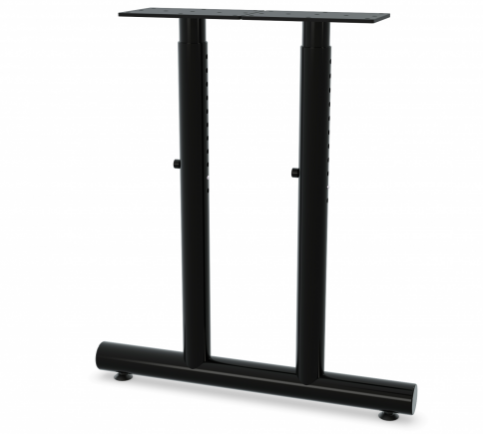

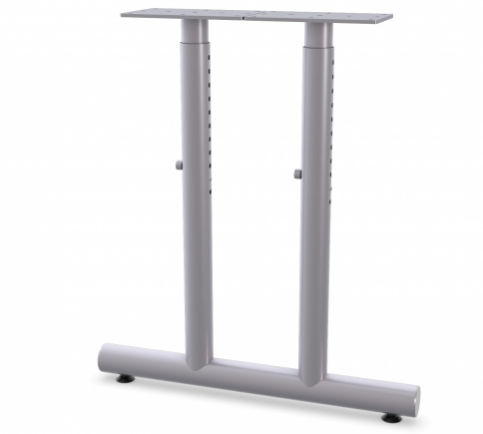

Dual Column T-Leg • Spring Clip Height Adjustable

Dual Column T-Leg

Spring Clip Height Adjustable

Configure Bases

Configure Tables

Price From:

$315.00 List

  • Adjustment Range: 24.75” to 34.75”
  • Welded Mounting Plate: (2) 5" x 8" x 7/32"
  • Column: 2" diameter
  • Base Spread: 22", 26", 36", 42"
  • Leveling Glides: 1 3/8" diameter plastics with steel threaded inserts
  • Finish: powder coat; black is stock color
  • Bolted construction
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Adjustable Height Adjusts in 1" increments  from 24.75" to 34.75"
Column Diameter 2"
Welded Mounting Plate 5" x 8"
Base Spread 22", 26", 36", 42"
Leveling Glides 1 3/8" diameter plastic with steel threaded inserts
Finish Powder coat colors; black is stock color
Method of Assembly Bolted construction
Options Optional Casters (the height of the base will increase by 2")
Packaging Packaged 2 per box, priced individually





Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
22"2"5" x 8"24"-28"D x 36"-96"W
26"2"5" x 8"30"-36"D x 42"-96"W
36"2"5" x 8"42"-46"D x 84"-144"W
42"2"5" x 8"48"-52"D x 84"-144"W

.
