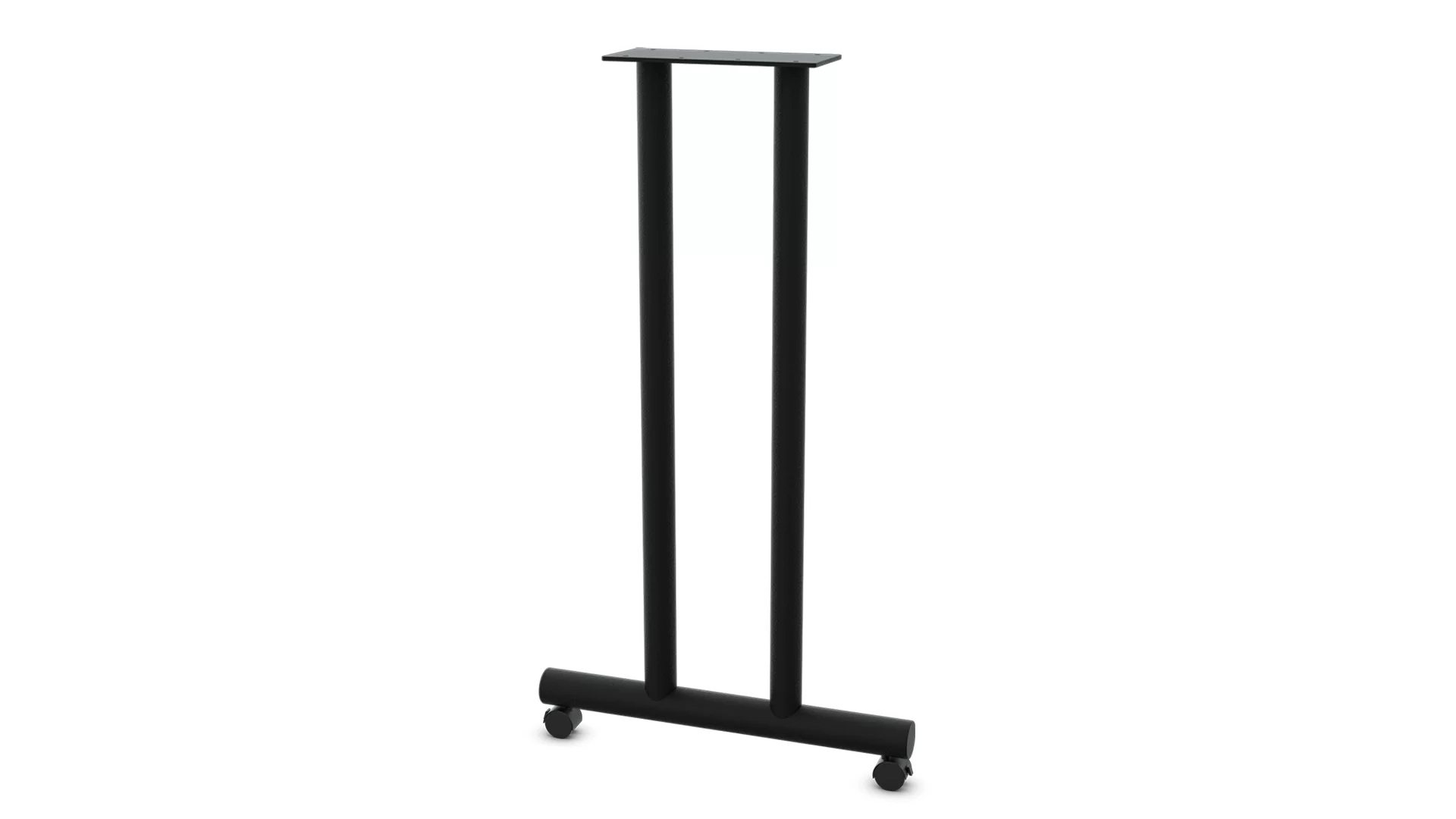

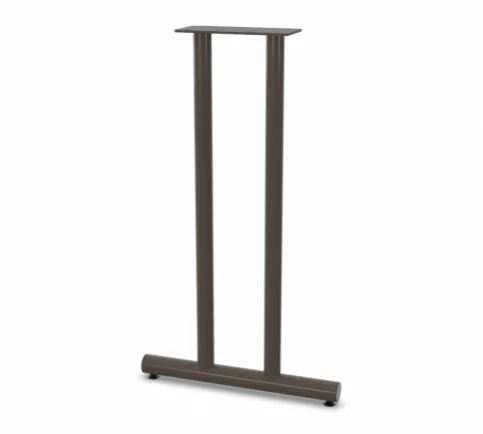

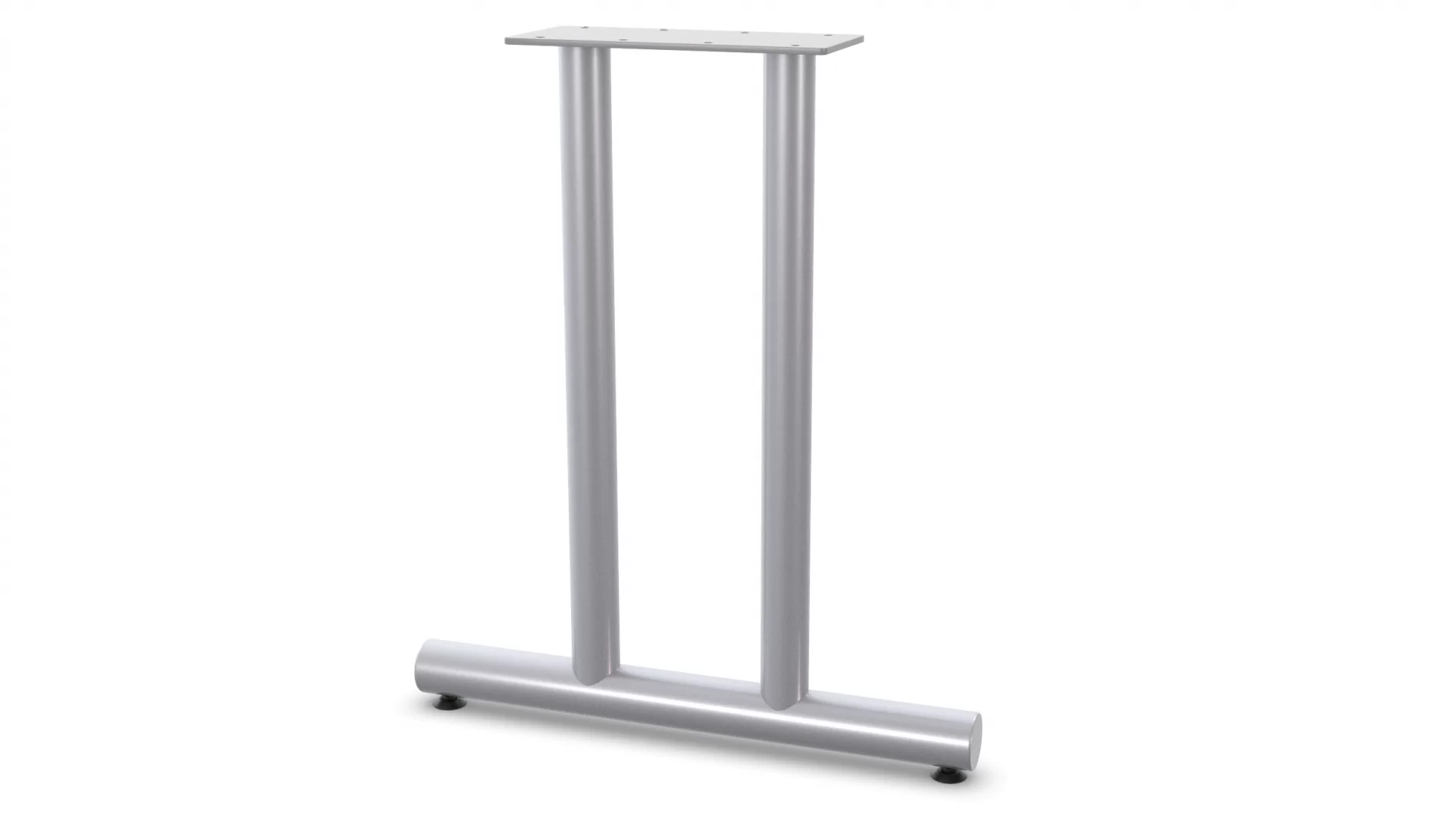

Dual Column T-Leg - Black

Dual Column T-Leg

Traditional

Configure Bases

Configure Tables

Price From:

$245 List

Fabricated 14 gauge steel with steel endcaps and threaded inserts for levelers or casters.

  • Unit Height: 27.75"
  • Welded Mounting Plate: 5" x 11" - 2TL-24 and 2TL-30 legs; 6" x 16" - 2TL-42 and 2TL-48 legs
  • Column: 2" diameter
  • Base Spread: 22", 26", 36", 42"
  • Leveling Glides: 1 3/8" diameter plastics with steel threaded inserts, allow additional 1" upward height adjustment for uneven floors
  • Finish: powder coat; black is stock color
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Height Options Bar Height - 40.75", Adjustable Height 24.75" - 34.75", Custom Height between 5" - 27.75", Custom Height between 27.75" - 40.75"
Column Diameter 2"dia. or 2-3/8" dia.
Welded Mounting Plate 5" x 11" - 2TL-24 and 2TL-30 legs; 6" x 16" - 2TL-42 and 2TL-48 legs. Require 8 #12 screws (not provided)
Base Spread 22", 26", 36", 42"
Leveling Glides 1 3/8" diameter plastic with steel threaded inserts
Finish powder coat; black is stock color
Method of Assembly Bolted construction
Packaging 2 legs per box, priced individually

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
22"2"5" x 11"24"-28"D x 36"-96"W
26"2"5" x 11"30"-36"D x 42"-96"W
36"2"6" x 16"42"-46"D x 84"-144"W
42"2"6" x 16"48"-52"D x 84"-144"W
42"2-3/8"6" x 16"52"-60"D x 96"-144"W

.
