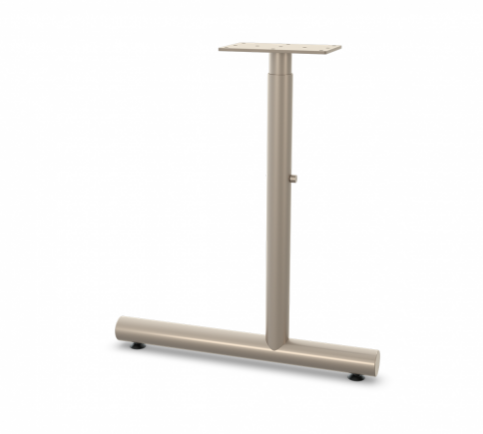

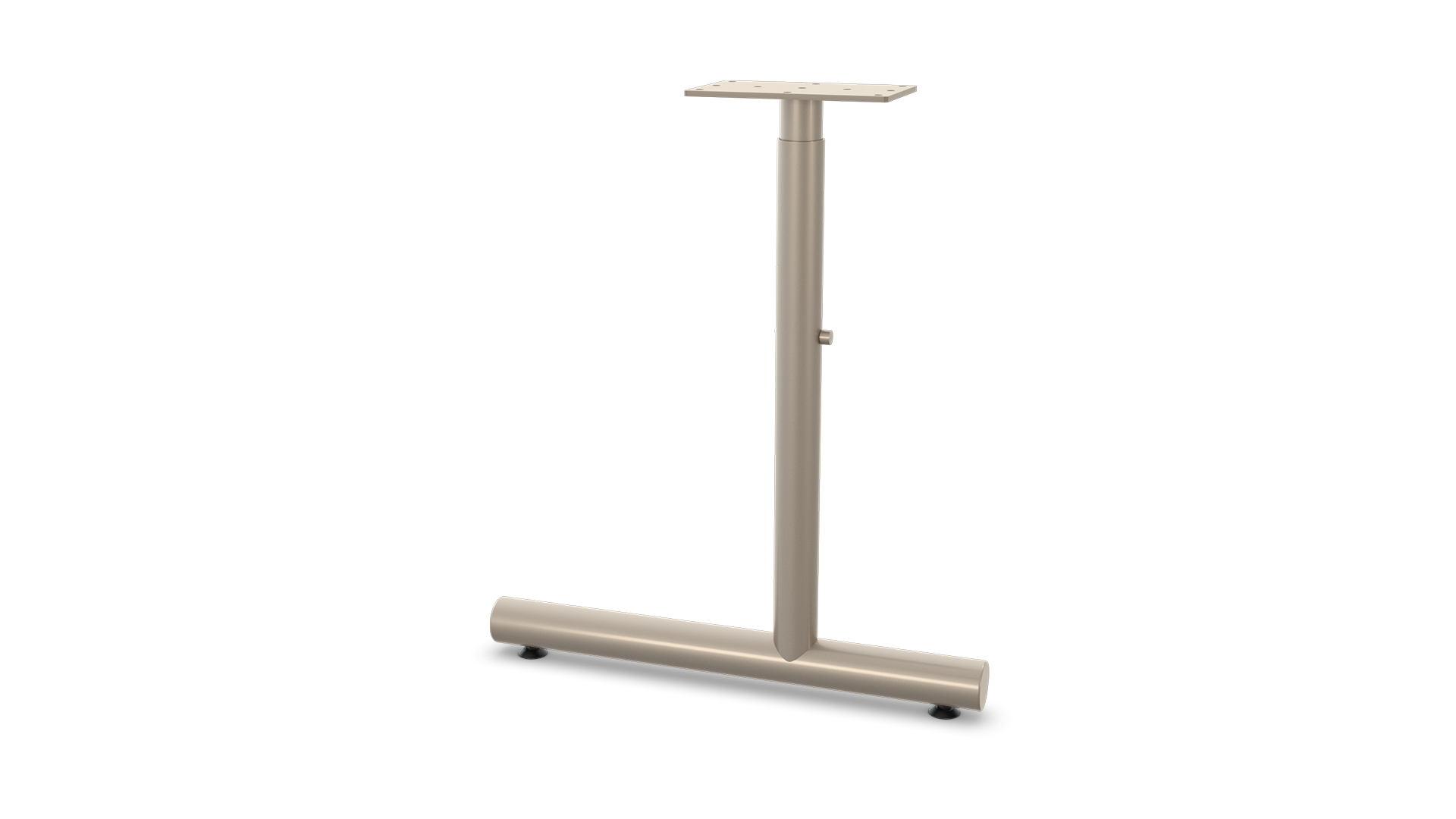

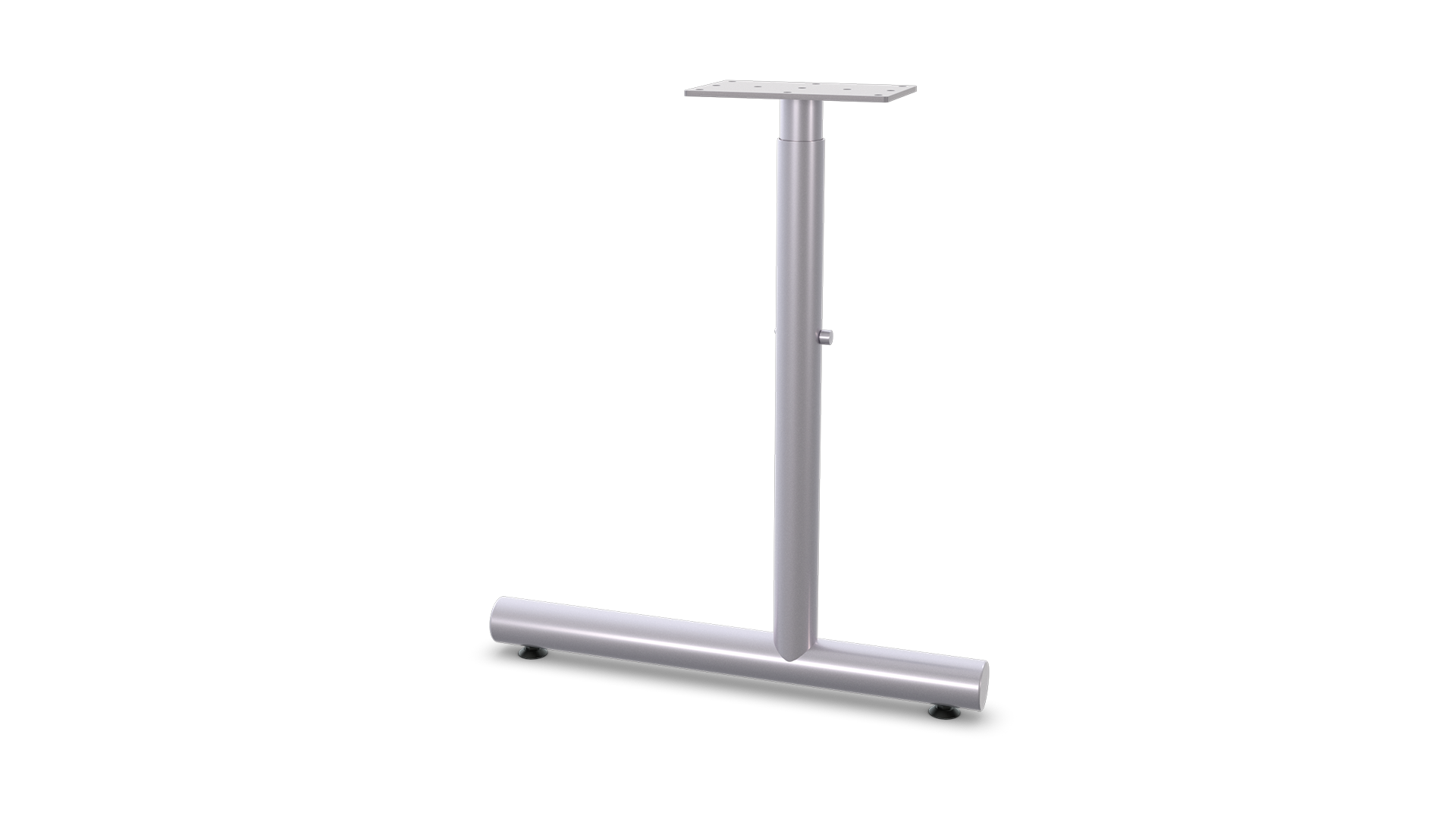

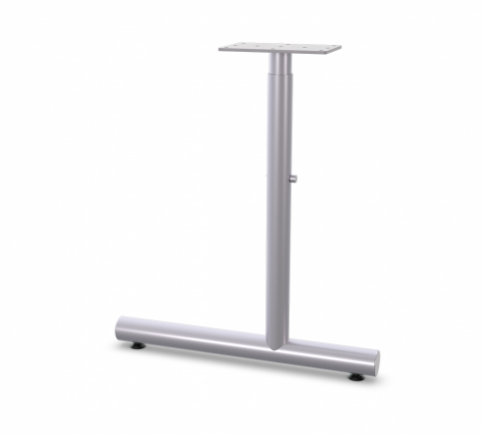

Single Column C-leg • Spring Clip Height Adjustable

Single Column C-leg

Spring Clip Adjustable Height

Configure Bases

Configure Tables

Price From:

$195.00 List

  • Adjustment Range: 24.75” to 34.75”
  • Welded Mounting Plate: 5" x 8" x 7/32 steel
  • Column: 2" diameter on outer column
  • Base Spread: 16", 22", 26"
  • Leveling Glides: 1 3/8" diameter plastic with steel threaded inserts

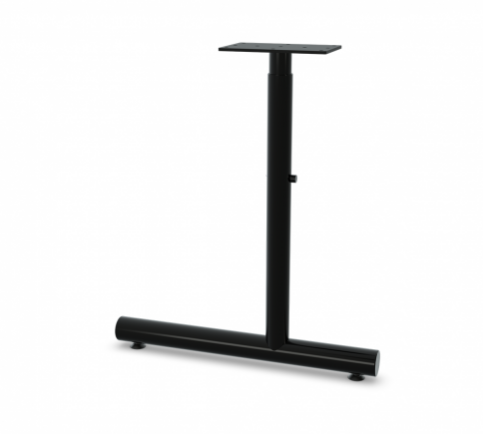

  • Finish: powder coat colors; black is stock color
  • Bolted construction
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Adjustment Range Adjusts in 1" increments  from 24.75" to 34.75"
Column Diameter 2"
Welded Mounting Plate 5" x 8"
Base Spread 16", 22", 26"
Leveling Glides 1 3/8" diameter plastic with steel threaded inserts
Finish Powder coat colors; black is stock color
Method of Assembly Bolted construction

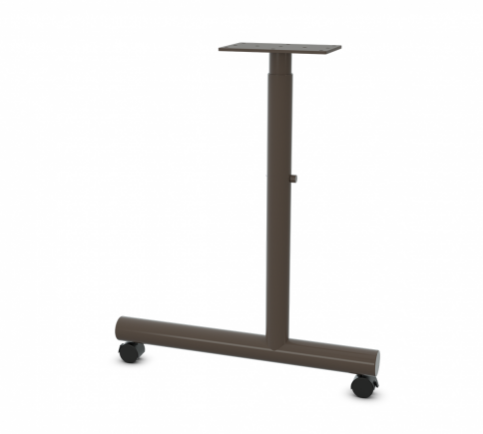

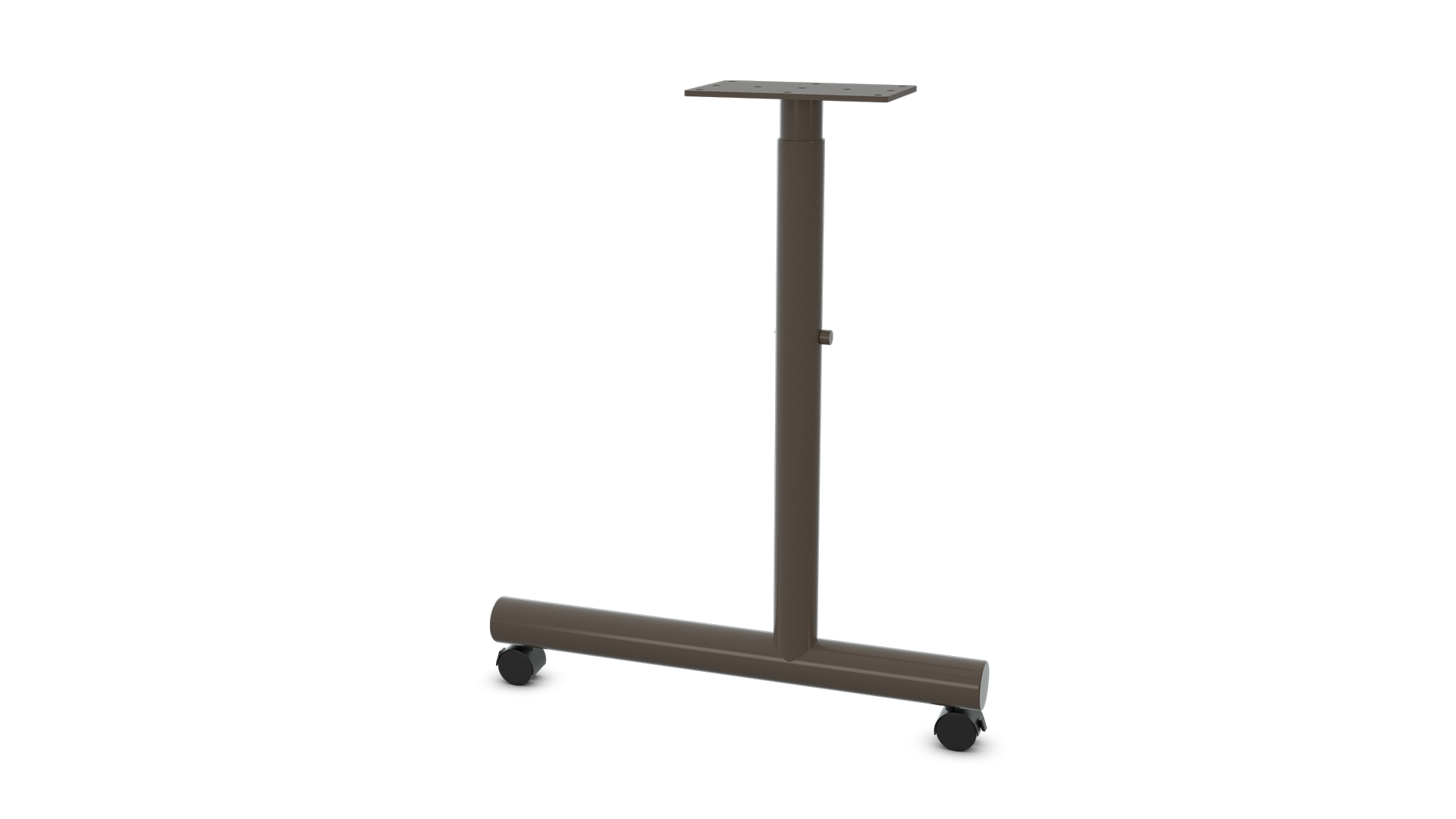

Options Optional Casters
Packaging bases are packed 2 per box, priced individually





Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
16"2"5" x 8"18"-22"D x 24"-96"W
22"2"5" x 8"24"-28"D x 30"-96"W
26"2"5" x 8"28"-30"D x 42"-96"W

.



Resources & Downloads

Single Column C-Leg 360o View
