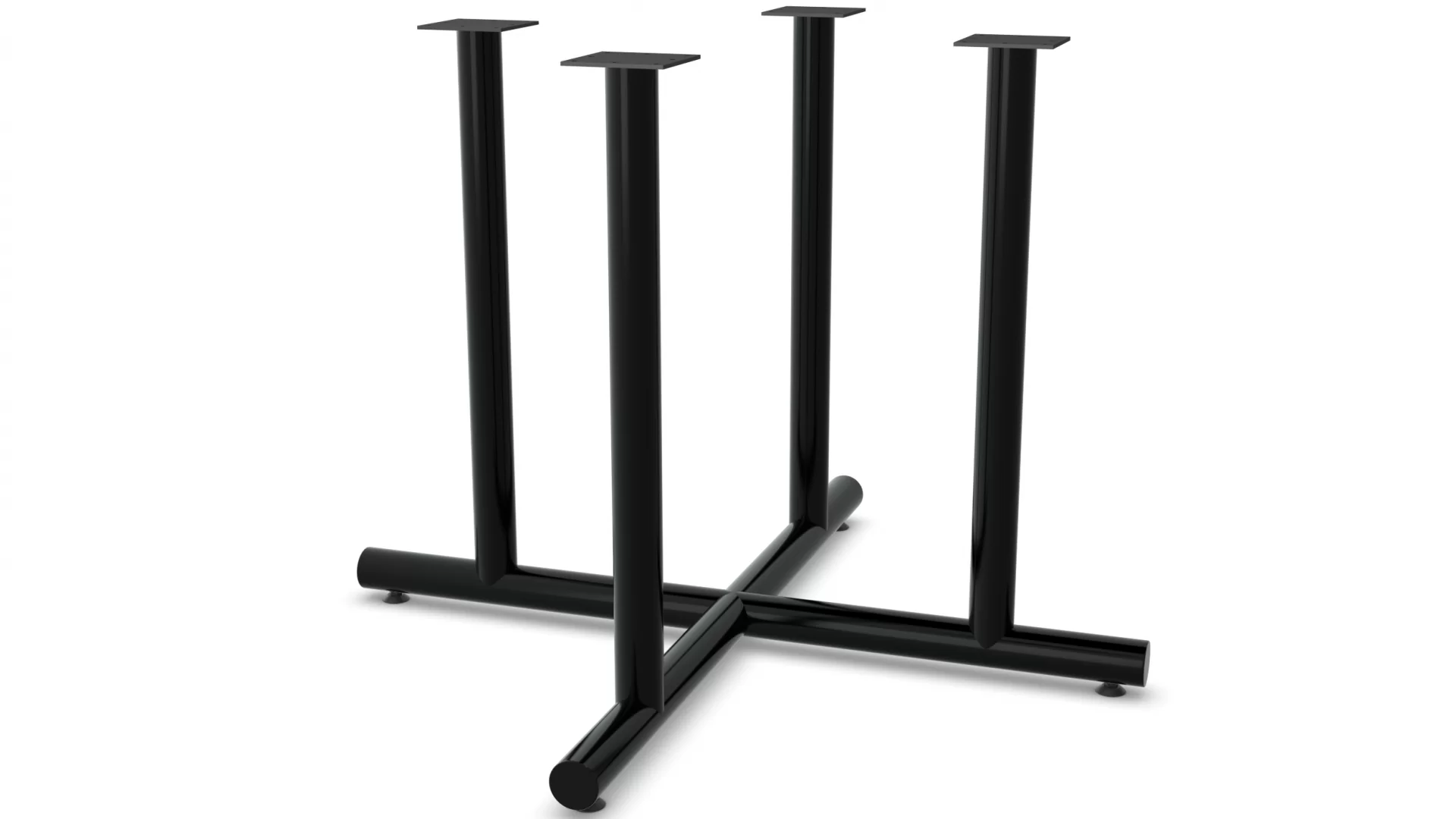

4 Column X-Base - Black

4 Column X-Base

Traditional

Configure Bases

Configure Tables

Price From:

$379 List

Fabricated 14 gauge steel with steel endcaps and threaded inserts for levelers or casters.

  • Unit height: 27.75"
  • Mounting plate: 4 plates 4" x 4" x 7/32" steel
  • Column and feet are 2" diameter
  • Base Spread: 38" x 38"
  • Leveling Glides: 1 3/8" diameter plastic with steel threaded inserts
  • Finish: powder coat; black is stock color
  • Packaging: 1 base per box
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Height Option Bar height - 40.75"
Column Diameter 2"
Welded Mounting Plate 4" x 4" x 7/32 steel
Base Spread 38" x 38"
Leveling Glides 1 ⅜" diameter plastic with steel threaded inserts
Finish Powder coat; black is stock colors

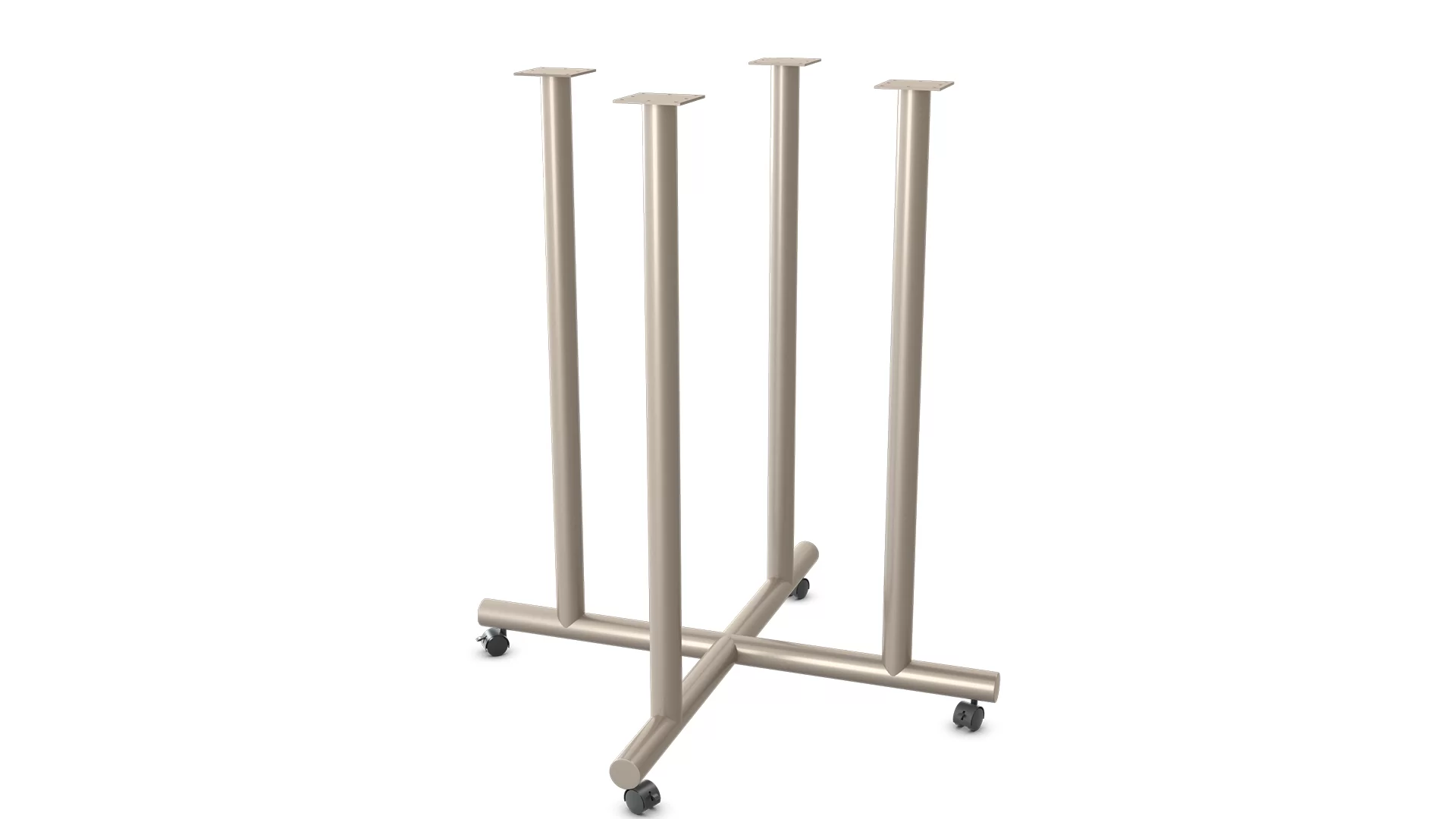

Options Optional casters
Method of Assembly Bolted construction
Packaging 1 base per box

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
38" x 38"2"4" x 4"42" - 60"

.
