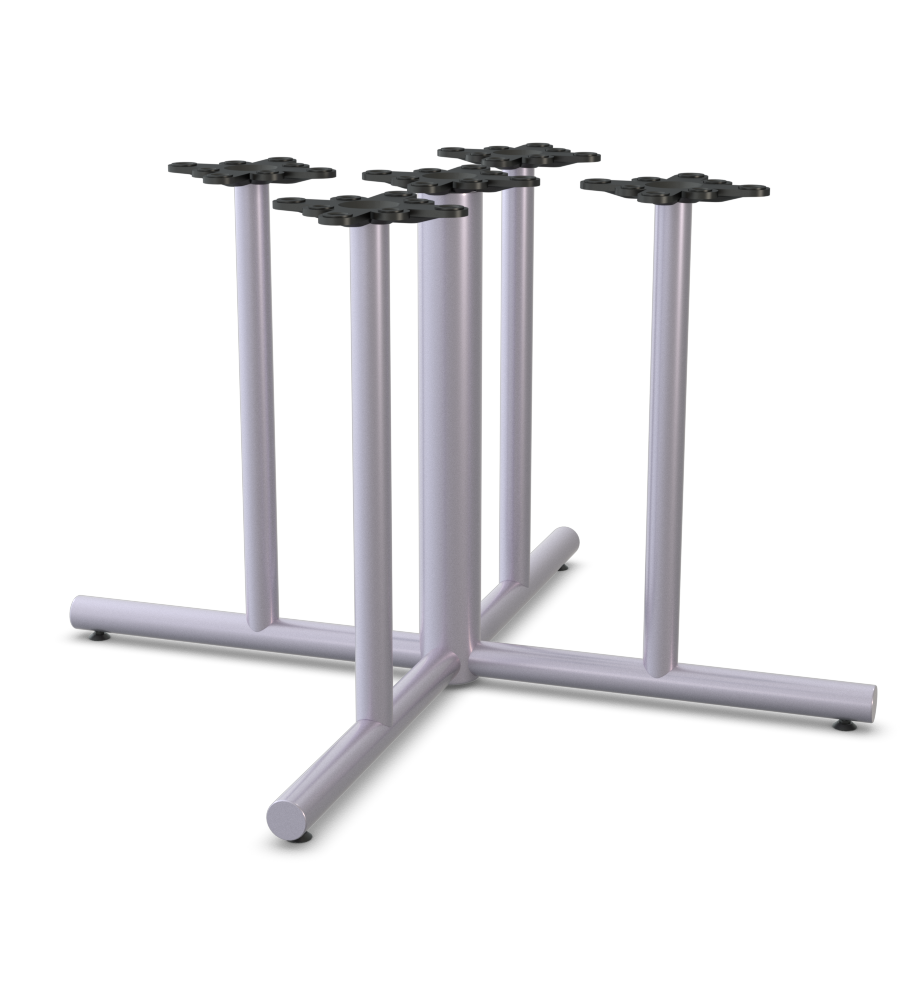

Product Preview
Click & Drag Image (Left or Right)

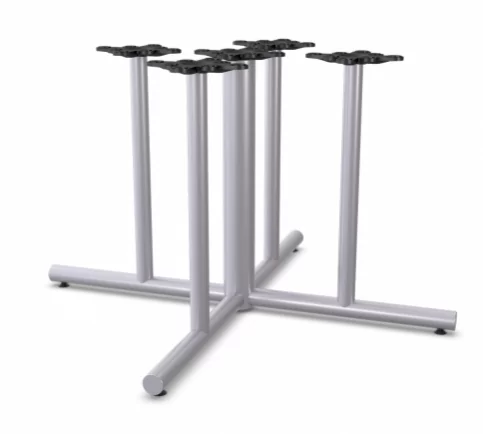

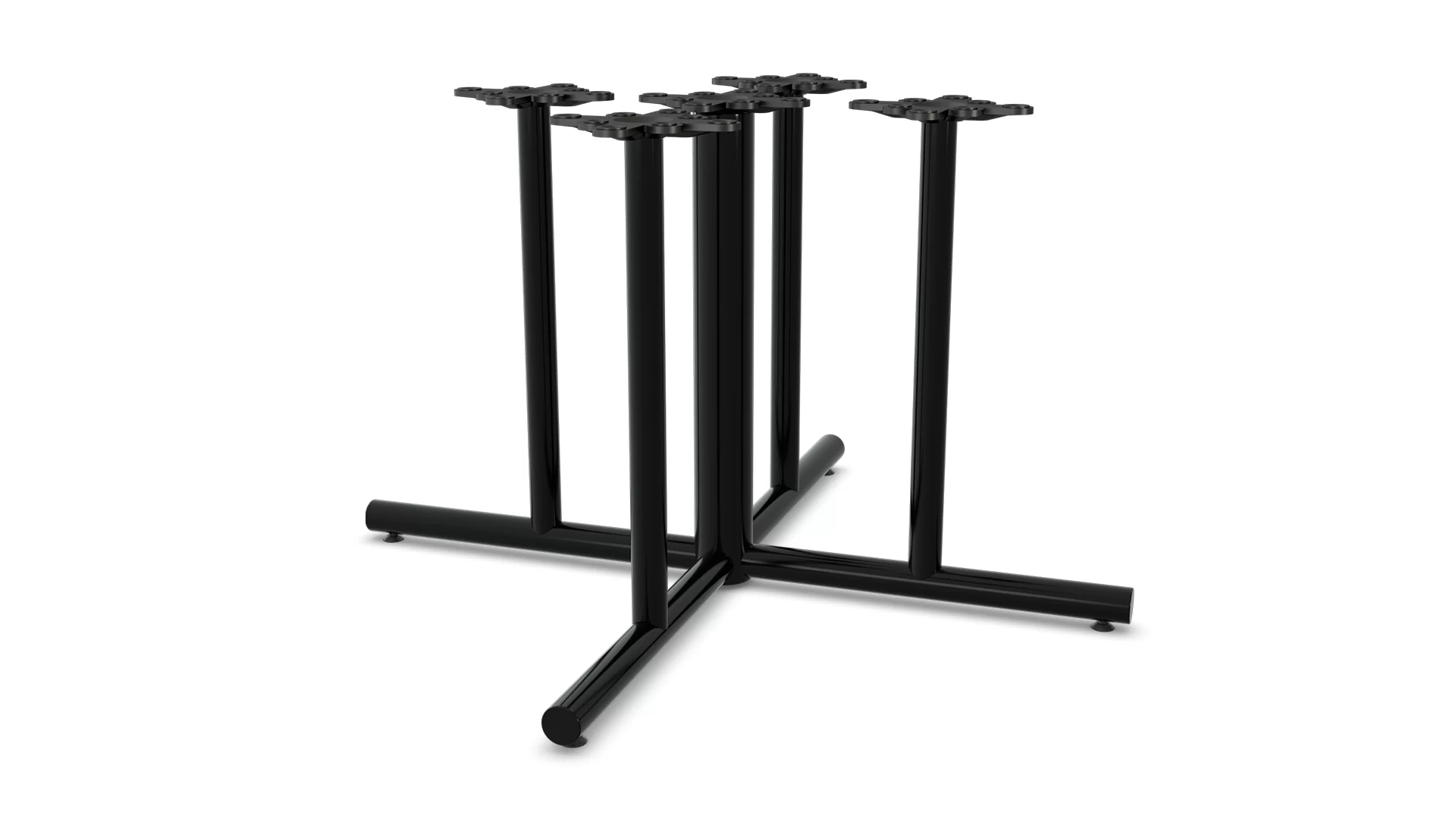

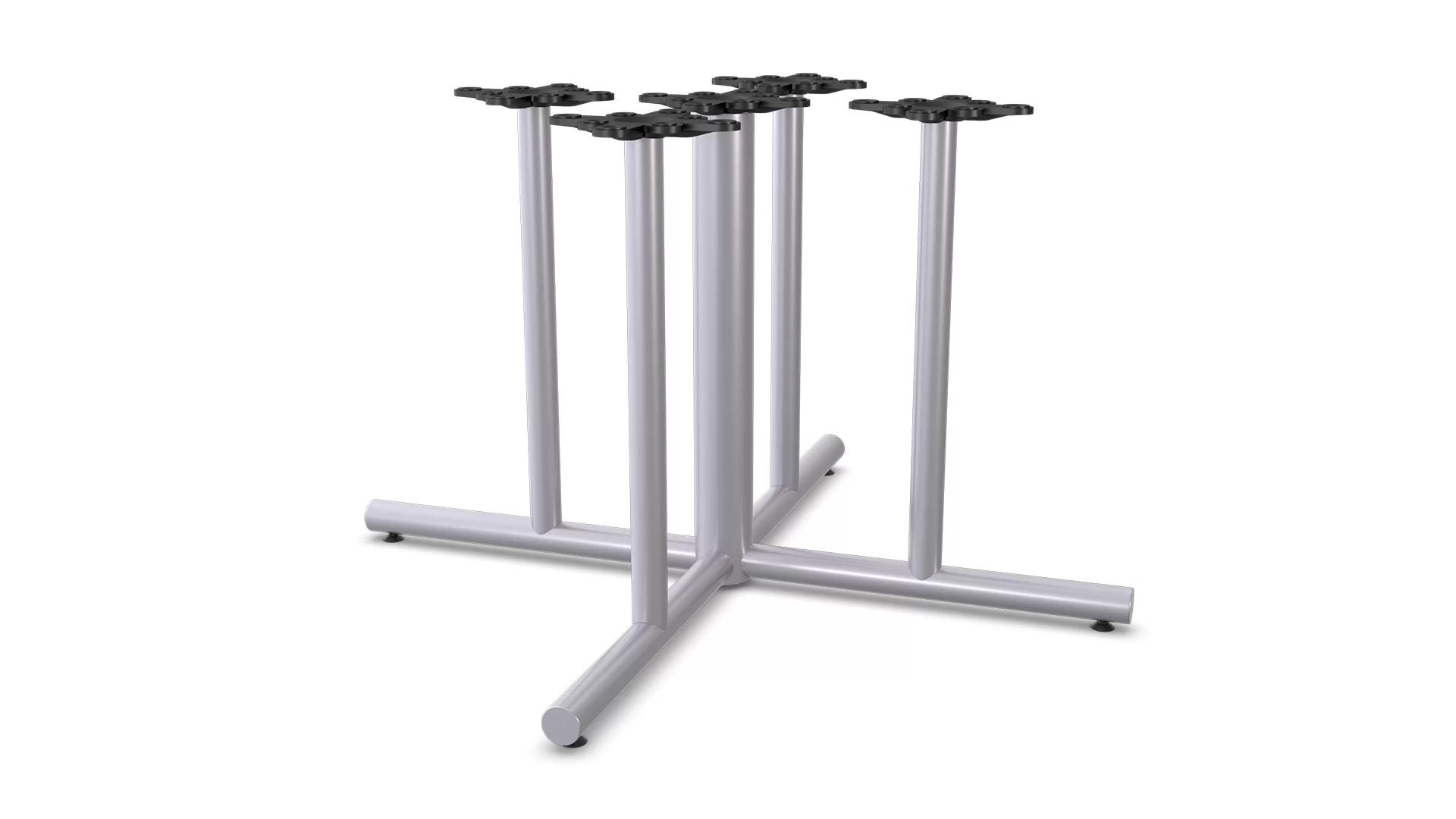

5 Column X-Base - Black

5 Column X-Base

Traditional

Configure Bases

Configure Tables

Price From:

$412.00 List

Fabricated 14 gauge steel with steel endcaps and threaded inserts for levelers or casters.

  • Unit height: 27.75"
  • Mounting plate: 5 plates 10" x 10" spiders; requires #12-14 screws
  • Column and feet are 2" diameter, Center column is 3" diameter
  • Base Spread: 48" x 48"
  • Leveling Glides: 1 3/8" diameter plastic with steel threaded inserts
  • Finish: powder coat; black is stock color
  • Packaging: 1 base per box
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Column Diameter 2" dia. (center column is 3" dia.)
Welded Mounting Plate 10" x 10" x 7/32 steel
Base Spread 48" x 48"
Leveling Glides 1 ⅜" diameter plastic with steel threaded inserts
Finish Powder coat; black is stock colors

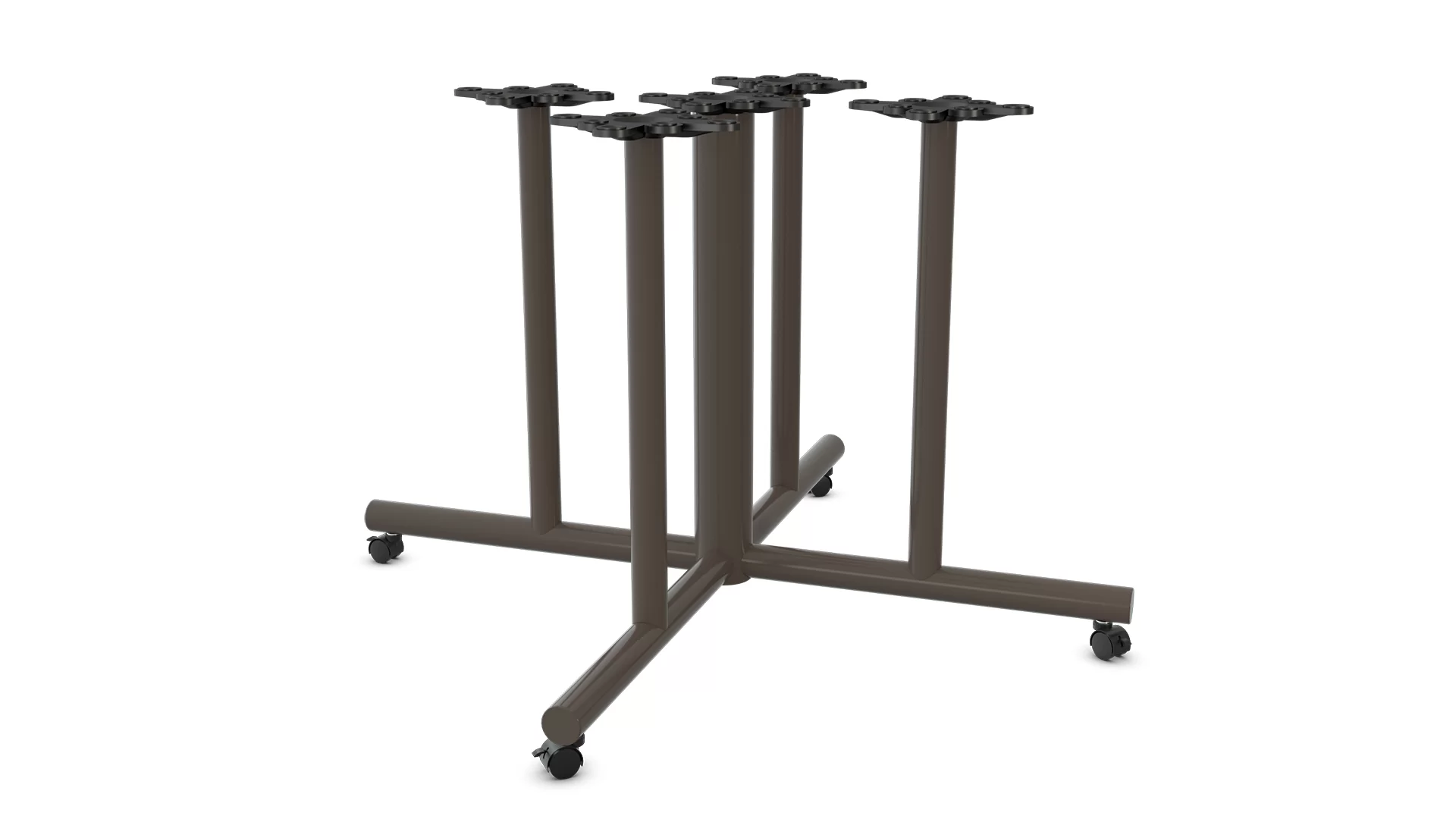

Options Optional casters, optional self leveling glides
Method of Assembly Bolted construction
Packaging 1 base per box

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
48" x 48"2"10" x 10"60" - 72" dia.

.

Resources & Downloads

5 Column X-Base 360o View
