Single Column T-Leg - Black Finish - Casters

Single Column T-Leg

Traditional

Configure Bases

Configure Tables

Price From:

$179 List

Fabricated 14 gauge steel with steel endcaps and threaded inserts for levelers or casters.

  • Unit height: 27.75"
  • Welded Mounting Plate: 5" x 8" x 7/32 steel; require 14 #12 screws
  • Column: 2" diameter
  • Base Spread: 16", 18", 20", 22", 26"
  • Leveling Glides: 1 3/8" diameter plastic, allow additional 1" upward height adjustment for uneven floors
  • Finish: powder coat; black is stock color
  • Bolted and welded construction
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Height Options Counter Height - 34.75’’, Bar Height - 40.75", Custom Height Cut between 5" - 28.99" or between 29" - 42"
Column Diameter 2"
Welded Mounting Plate 5" x 8" x 7/32 steel; require 14 #12 screws
Base Spread 16", 18", 20", 22", 26", 30"
Leveling Glides 1 3/8" diameter plastic, allow additional 1" upward height
Finish Powder coat colors; black is stock color
Packaging 2 legs per box, priced individually
Options Optional Casters;

Size Chart

Base SpreadConstructionColumn DiameterRecommended Top Size
16"Bolted2"18"-20"D x 24"-120"W
18"Bolted2"20"-22"D x 30"-120"W
20"Bolted2"22"-24"D x 30"-120"W
22"Bolted2"24"-28"D x 30"-96"W
26"Bolted2"28"-30"D x 42"-96"W
30"Welded2"30"-36"D x 42"-96"W
16"Welded2"18"-20"D x 24"-120"W
22"Welded2"24"-28"D x 30"-96"W
26"Welded2"28"-30"D x 42"-96"W

.

Resources & Downloads

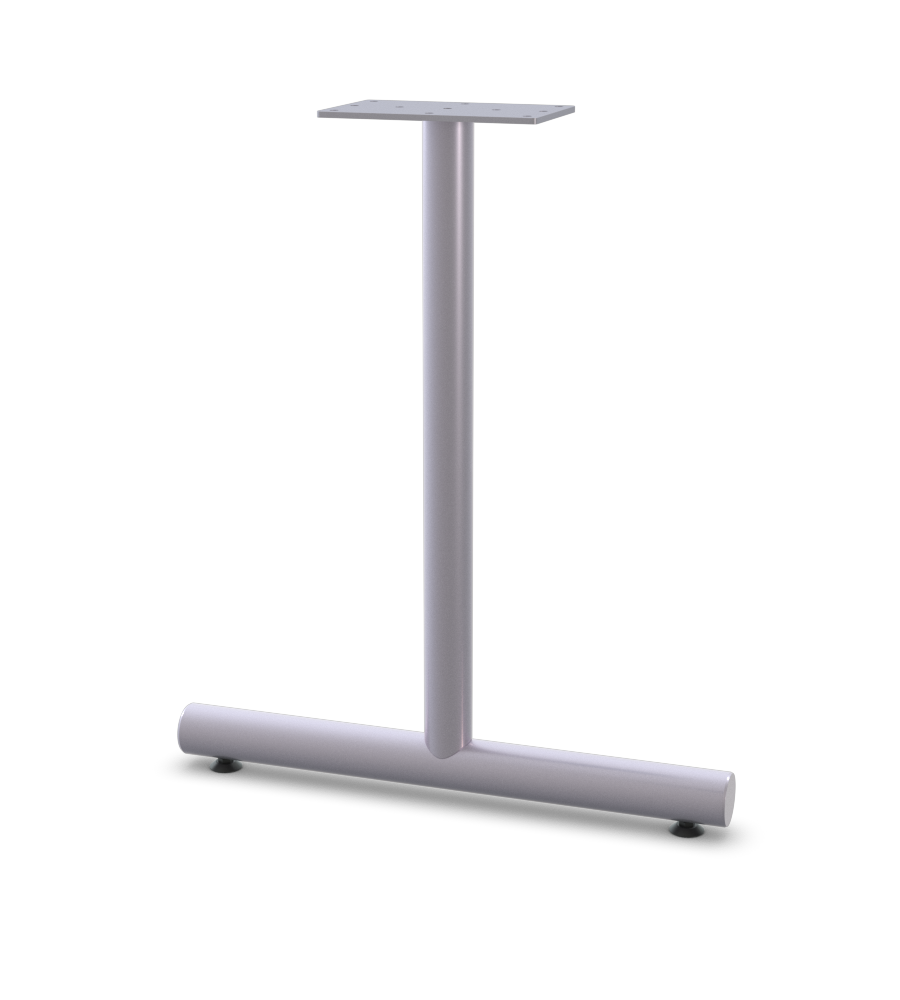

Single Column T-Leg 360o View
